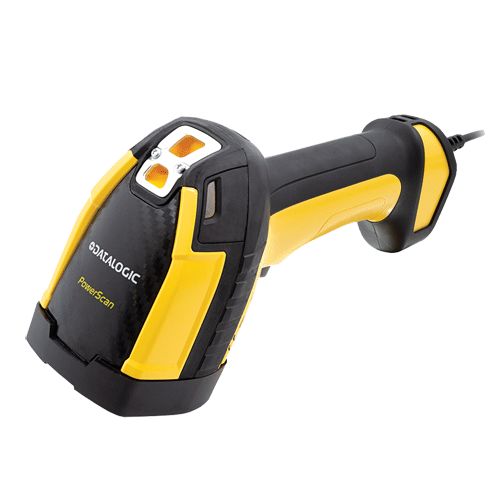

DATALOGIC PowerScan® 9630 D Industrial 2D Area Imager

(Product may vary from image. Rely only on description for purchasing decisions.)

POWERSCAN™ 9600 SERIES Handheld industrial scanners for 1D/2D barcode reading with top flexibility. The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
  • Standard Range and High Performance models
  • Water and Particulate Sealing Rating: IP65 and IP67; 10 million hits trigger
  • Center of gravity design
  • White light illumination
  • High visibility OLED Display with 4-Keys /16-Keys keypad options
  • Standard Range, High Performance and Document capture optics
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
  • Datalogic’s Motionix™ motion-sensing technology
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
NameSizeDownload
Data Sheet407kb powerscan_9600_series_datasheet.pdf

Products available to purchase

 SKUVendorName
DLPD9630SR-U DATALOGICPowerScan D9630 Std Range 2 D Scanner with USB Cable
CAB-DL552 DATALOGICCAB-552 USB Type A Straight 2m IP67 for PD PM96
CAB-DL559 DATALOGICCAB-559 RS232 POT@9 DB9F Coiled 2.4m IP67
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 630 - 680 VFD (Visible Laser Diode)
Illumination: White LED reading light
Scan Pattern
1280 x 800 Pixels
Scan Rate
N/A
Motion Tolerance
N/A
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
SR: 1D Codes: 3 mil; 2D Codes: 6 mil
HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Depth of field
SR Models
Code 128
5 mils: 6.4 to 30.9 cm
20 mils: 4 to 103.7 cm
40 mils: 5.5 to 175 cm
EAN/UPC 13 mils: 4 to 67.5 cm
DataMatrix 10 mils: 6 to 30 cm

HP Models
Code 128
2.5 mils: 6.3 to 11.5 cm
5 mils: 3.8 to 41 cm
40 mils: 5.5 to 242.9 cm
EAN/UPC 13 mils: 4 to 120 cm
PDF417 10 mils: 0.5 to 46.1 cm
DataMatrix 10 mils: 4.2 to 32 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 52°
Skew Angle
+/- 52°
Ambient Light Immunity
0 to100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking Digimarc Barcodes (HP and DC models)
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™ (Three Green Lights) technology for good read feedback; Datalogic ‘Green Spot’ on the Code; Dual good read LED's,Vibration
Communication Type
Cable
Communication Technology
Wired
Interfaces
USB/ RS232
Supply Voltage
5 - 30 VDC +/- 5%
Power Consumption
SR: 200mA @ 5V; 120mA @ 12V.
HP/DC: 280mA @ 5V / 140mA @ 12V
Standby/Idle (Typical): 187mA @ 5V / 92mA @ 12V
Drop Specification
Withstands 50 drops from 2.5 m @ 20 °C
Withstands 50 drops from 2.0 m @ -20 °C
Environmental Sealing
IP67
ESD Protection
+/- 20 kV air discharge
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
China RoHS, EU RoHS, Complies to R.E.A.C.H,
CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED
External Dimensions (WxDxH)
79 x 140 x 198 mm
Weight
318 g
