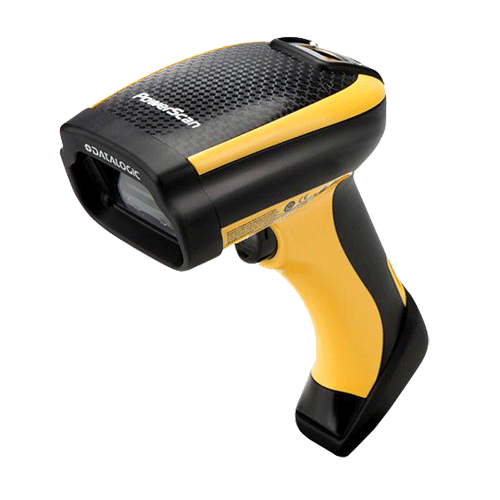

DATALOGIC PowerScan® 9500 D Industrial 2D Area Imager **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

Warehouses, logistic centers and manufacturing plants depend on speed and reliability when managing goods and tracking merchandise in order to improve efficiency while reducing costs. Datalogic’s PowerScan™ PD9500 area imager, the latest generation of rugged 2D area imagers, is the perfect answer for these applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Rugged Industrial Imager Scanner
  • Snappy omnidirectional reading from contact to over 1.0 m / 3.3 ft
  • Datalogic’s new instinctive ‘frame’ aimer
  • New ‘soft white light’ illumination
  • Datalogic’s Motionix™ motion-sensing technology
  • Ergonomic shape provides hours of tireless data collection for the user
  • Supports 1D, stacked and 2D codes, postal codes and image capture
  • Water and Particulate Sealing Rating: IP65
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good read feedback
NameSizeDownload
Brochure310kb dlps9500d_brochure.pdf
Quick Reference Guide1,123kb dlps9500d_qrg.pdf
Product Reference Guide10,043kb dlps9500d_pbt_pm_prg.pdf

Products available to purchase

 SKUVendorName
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL479 DATALOGICCAB-479 RS232 9P Female coiled 7.6m
DLHLS8000 DATALOGICPwrScan 8x Universal Holster
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 630 - 670 VFD (Visible Laser Diode)
Illumination: LED Array
Scan Pattern
PD9530; 864 x 544 Pixels
PD9530HP/HPE; 1280 x 1024 Pixels
Scan Rate
Motion Tolerance
N/A
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
PD9530; 1D 4 mil, 2D 7.5 mil
PD9530HP/HPE; 1D 2.5 mil, 2D 4 mil
Depth of field
PD9530;
4 mils - 4.0 to 17.0 cm
40 mils - 4.0 to 85 cm
Data Matrix: 10 mil - 4.0 to 18.0 cm
PDF417: 10 mil - 2.0 to 25.0 cm

PD9530HP/HPE;
2.5 mils - 2.0 to 6.0 cm
40 mils - 3.0 to 110 cm
Data Matrix: 10 mil - 2.0 to 20.0 cm
PDF417: 10 mil - 2.0 to 30.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 to100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback; Datalogic ‘Green Spot’ on the Code; Dual good read LED's
Communication Type
Cable
Communication Technology
Wired
Interfaces
USB, Keyboard Wedge & RS232 Multi Interface
Supply Voltage
PD9530/9530HP; 5 VDC +/- 10%
PD9530HPE; 10-30 VDC
Power Consumption
Operating:
PD9530/9530HP 335 mA (5VDC)
PD9530HPE 135 mA (10VDC)
Standby:
PD9530/9530HP 180 mA (5VDC)
PD9530HPE 50 mA (10VDC)
Drop Specification
Designed to withstand 50 x 2M drops to concrete
Environmental Sealing
IP65
ESD Protection
+/- 20 kV air discharge
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
China RoHS, EU RoHS, Complies to R.E.A.C.H, CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED
External Dimensions (WxDxH)
74 x 110 x 212 mm
Weight
330 g
