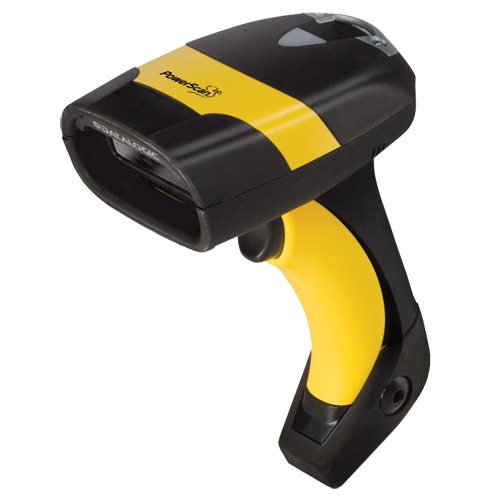

DATALOGIC PowerScan® 8300 D Industrial Laser Scanner *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

Datalogic Scanning’s PowerScan readers are the top rated industrial handheld data collection products on the market. Synthesizing knowledge and experience, Datalogic Scanning is evolving the PowerScan family to include the PowerScan D8300 series: corded laser bar code readers featuring state-of-the-art performance for rugged industrial use.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Handheld Laser Scanner
  • Reads most common linear bar codes including GS1 Databar and PDF417
  • Standard Range (contact up to 1 m) and Auto Range (10 cm 10 m) optic models available
  • Drop resistance to 2 m
  • User interface: loud beeper and Datalogic 3GL™good read feedback Good read LED, "Green Spot" on the code
  • Built-in multiple interface (RS-232, Keyboard Wedge, Wand and USB)
  • Undecoded TTL Laser Out Model
  • 3 Year Limited Warranty
NameSizeDownload
Brochure501kb dlps8300_brochure.pdf
Quick Reference Guide850kb dlps8330d_qrg.pdf
Product Reference Guide2,046kb dlps8300d_pm_prg.pdf

Products available to purchase

 SKUVendorName
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL479 DATALOGICCAB-479 RS232 9P Female coiled 7.6m
DLPC8000 DATALOGICPowerScan 8xxx Protective Case & Belt Holster
DLPD7REEL DATALOGICPowerScan Industrial Take up Reel
DLHLS8000 DATALOGICPwrScan 8x Universal Holster
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL524 DATALOGICUSB A Coiled cable for PM8300
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
Aiming: 630 - 680 VLD activated by double click trigger
Scan Pattern
Single Line
Scan Rate
35 +/- 5 scans/sec
Motion Tolerance
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
PD83x0: 0.076 mm / 3 mils
PD83x0AR: 0.190 mm / 7.5 mils
Depth of field
PD83x0:
5 mils - 2.1 to 13.3 cm
7.5 mils - 3.5 to 24.2 cm
10 mils - 2.9 to 42.8 cm
13 mils - 2.3 to 55.1 cm
20 mils - 6.3 to 78.5 cm
40 mils - 2.5 to 97.8 cm

PD83x0AR:
7.5 mils - 7.0 to 46.5 cm
10 mils - 10.8 to 85 cm
13 mils - 12.7 to 147.3 cm
20 mils - 7.0 to 215.9 cm
40 mils - 16.0 to 340 cm
55 mils - 0.2 to 4.1 m
Reflective 100 mils - 1.5 to 12.5 m
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 20°
Pitch Angle
-55 to -5°- 5 to 55°
Skew Angle
+/- 60°
Ambient Light Immunity
Immume to light exposure in office/facilitie and direct exposure to sunlight
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes: Code 16K, Code 49, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectiona
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Indicators/Controls
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's
Communication Type
Cabled
Interfaces
USB, Keyboard Wedge, Wand & RS232 Multi Interface
Undecoded Laser output model availalbe
Supply Voltage
5 -30 VDC
Power Consumption
310 mA @ 5 VDC (typical)
4 mA @ 5 VDC (typical)
Drop Specification
Designed to withstand 50 x 2M drops to concrete
Environmental Sealing
IP65
ESD Protection
20 kV
Operating Environment
-30° ~ 50°C, Relative Humidity up tp 90% none condensing
Storage Environment
-30° ~ 50°C, Relative Humidity up tp 90% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS
Laser Classification: CDRH Class II, IEC 60825-1 Class 2
External Dimensions (WxDxH)
69 x 114 x 207 mm
Weight
295 g
