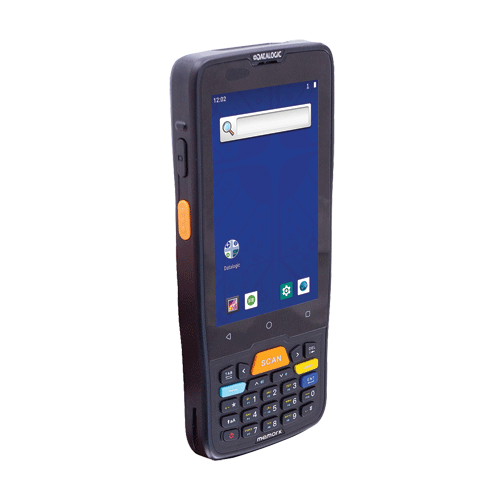

DATALOGIC Memor™ K Portable Data Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Memor K is pocketable and powerful Android™ mobile computer with a thin design and light weight. The perfect daily business companion for any data capture application!Designed for any data capture application, from inventory to assisted sales, or back-end receiving to the warehouse, the Memor K mobile computer includes a powerful 2 GHz octa-core processor with 3 GB of memory. It also delivers ruggedness, power and performance in a smartphone form factor with the user-friendly experience of Android.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Ultra-Ergonomic, compact and robust
  • 4 inch capacitive multi-touch display with Dragontrail™ hardened glass
  • Android 9
  • 2 GHz, Quad/Octa CPU with 3 GB RAM / 32 GB Flash
  • Backlit 24 key rubber keyboard, plus two side scan keys and two programmable side keys
  • Replaceable 3,800 mAh Li-Ion Battery
  • Ruggedized with drop resistance to 1.2 m / 4 ft to concrete (1.5 m / 5 ft with rubber boot) and IP54 sealing
  • Powerful Wi-Fi including the latest 802.11ac standard
  • Bluetooth® v5 short range wireless technology and BLE
  • NFC for proximity communications
  • Rear camera with auto focus, 8 MP with flash LED
  • Advanced 2D ultra-slim VGA imager with Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
  • Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
  • EASEOFCARE Service Plans offer a wide range of options to protect your investment, ensuring maximum productivity and ROI.
Brochure144kb dlmemor_k_brochure.pdf

Products available to purchase

CAB-MMKUSB DATALOGICCable from USB-C (Memor K Memor 10) to USB A Fem
AD-DLMM10DC DATALOGICPower Supply for Docks & Chargers MEMOR 10
DLMMK-RBOOT DATALOGICRubber Protection Boot for the Memor K
DLMMK-DCBASE DATALOGICSingle Slot Dock MEMOR K (excludes power supply)
DLMMK-STBATT DATALOGICSpare Battery for the Memor K

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

2 GHz Octa-core
3 Axis accelerometer to detect orientation
Operating Platform
Android 9
Development Environment
Java, Cordova and Xamarin SDK available
Software Utilities
Datalogic’s SoftSpot technology for configurable soft triggers
QR Code enrollment
Scan2Deploy Studio, DXU
MDM support: SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears SureMDM
System RAM: 3 GB
eMMC Flash: 32 GB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards, up to 64 GB; User-accessible
Scan Options
2D Ultra slim area imager (supports 1D / 2D codes)
Datalogic’s ‘Green Spot’ for good-read feedback
Resolution: VGA (640 x 480 pixels)
Symbologies supported
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, Maxicode, QR Code, Micro QR Code, MicroPDF417, PDF417
POSTAL CODES: Australian Post, Japan Post, British Post; China Post; IMB, Korea Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
STACKED CODES: Micro-PDF417, MacroPDF, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Backlighted 24 keys rubber keyboard, plus two side scan keys and two programmable side keys
4 inch WVGA resolution 800 x 480; LED backlight; Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass
Auto adjusts display backlight
Auto deactivates display when close to face
Resolution: 8 MP; Illumination: LED flash; Lens: Auto focus
I/O Ports
USB-C: High Speed USB 2.0 OTG
Radio Options
Local area network (WLAN): IEEE 802.11 a/b/g/n/ac/d/e/i/w; Frequency range: Country dependent, typically 2.4 GHz and 5 GHz bands
Personal area network (WPAN): Bluetooth wireless technology v5 (Classic Bluetooth wireless technology and BLE)
NFC communication: Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
Removable battery pack 3800 mAh with rechargeable Li-Ion batteries
Battery Life
Drop Specification
Withstands 18 drops from 1.2 m to concrete according to IEC62-2-32 Method 1.
Device with rubber boot: withstands 18 drops from 1.5 m to concrete according to IEC62-2-32 Method 1 with rubber boot.
Device: exceeds 400 hits at 0.5 m (200 cycle) per IEC 60068-2-32 specification.
Device with rubber boot: exceeds 600 hits at 0.5 m (300 cycle) per IEC 60068-2-32 specification.
Environmental Sealing
ESD Protection
Operating Environment
-20 to 50 ºC
Storage Environment
-30 to 70 ºC
EMC/Safety Standards
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH)
16.0 x 7.1 x 1.7 cm
268.0 g
