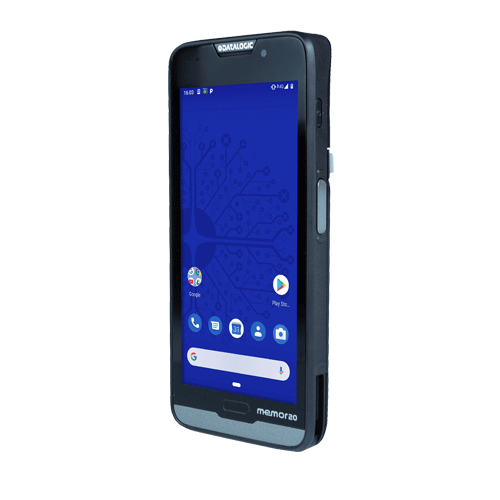

DATALOGIC Memor™ 20 Portable Data Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Memor™ 20 full-touch PDA is the best companion to face the toughest Enterprise challenges with the user friendliness of an Android Smartphone.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Stunning 5.7” Full HD display in 18:9 ratio with Gorilla™ hardened glass
  • Novel 2nd display for enriched notifications
  • Android 9 (Pie) with Google Mobile Services; Android Enterprise Recommended
  • Wireless charging eliminates all contacts on the device and dock
  • Front and rear color cameras
  • Fingerprint sensor for secure user authentication
  • SafeSwap™ technology visually indicates when it is safe to swap the battery
  • Ruggedized with drop resistance to 1.8 m / 6 ft to concrete and IP65/67 sealing
  • Dual band MIMO Wi-Fi featuring 802.11ac and 802.11r/k/v for fast roaming
  • Advanced cellular connectivity for voice and data, featuring LTE and Dual SIM
  • Assisted GPS for location based apps
  • Bluetooth v5 short range wireless technology
  • NFC for proximity communications
  • Advanced ultra-slim Megapixel 2D imager with Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
  • Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
  • Chemical resistant p
NameSizeDownload
Brochure177kb dlmm20_brochure.pdf

Products available to purchase

 SKUVendorName
DLMM20-C2-BN4A DATALOGICMEMOR 20 PDT BT Wifi 4G+ 2D Scn Android 9.0
DLMM20-TRHANDLE DATALOGICPistol-Grip Handle for MEMOR20 needs rubber boot
DLMM20-DCBASE DATALOGICSingle Slot Dock for the MEMOR20
DLMM20-STBATT DATALOGICStandard Battery 4100 mAhr Memor 20 Black Colour
DLZSN5MEM2031 DATALOGICMEMOR 20 EoC 5 Days 3 Years

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm SD660 Octa-core 2.2 GHz
Real-time Clock
3 Axis accelerometer to detect orientation
Gyroscope to sense angular velocity
Operating Platform
Android V9.0 (Pie) with GMS
Development Environment
Java, Cordova and Xamarin SDK available
Software Utilities
Applications:
Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
Provisioning: Android Zero Touch enrollment and QR code or NFC Bump Provisioning
Config & Maintenance: Datalogic DXU for device configuration and firmware upgrade from PC
MDM: SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears SureMDM, Microsoft Intune
Terminal Emulation: StayLinked SmartTE, Avanti Velocity
Memory
eMMC Flash: 64 GB
System RAM: 4 GB
Memory Expansion
Dual SIM Slot, Nano SIM
Scan Options
Halogen™ DE2102 scan engine:
2D Ultra slim area imager (supports 1D / 2D codes);
Datalogic’s ‘Green Spot’ for good-read feedback;
Depth of Field: 4 to 90 cm / 1.6 to 35 in depending on bar
code density and type;
Resolution: Megapixel (1280 x 800 pixels);
Illumination: Both White and Red LEDs (for Digimarc);
Aiming: 650nm VLD; Field of View: 42°H x 26°V
Minimum Print Contrast 25%
Minimum Element Width:
1D Linear: 0.0635 mm / 2.5 mils
PDF: 0.0762 mm / 3 mils
Data Matrix: 0.152 mm / 6 mils
Symbologies supported
1D Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes: Aztec Code, Data Matrix, HanXin Code, MaxiCode, Micro QR Code, QR Code, Dotcode
Postal Codes: Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC), UPU FICS, USPS Intelligent Mail
Stacked Codes: Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Digital Watermark Codes: Digimarc® Barcode
Keyboards
Physical Keys: 2 side scan keys; Power On/Off; Volume Up/Down
3 user programmable Android™ soft keys
Audio
Speaker (Polyphonic)
Vibration (Software Programable)
Display
Primary Display 5.7 inch LTPS in 18:9 format - FHD resolution 1080 x 2160; LED backlight
Secondary Display Second display on top for enriched Android notifications: 0.7 inch POLED
Ambient Light Sensor: auto adjusts display backlight
Proximity sensor: auto deactivates display when close to face
Camera
Rear Camera: Resolution: 13 megapixel;
Illumination: User controllable LED flash; Lens: Auto focus
Front Camera: Resolution: 8 megapixel; Fixed focus
I/O Ports
USB-C: High Speed USB 3.1 gen1 Host and Client; Gigabit Ethernet connectivity (via 3-slot dock)
Radio Options
Local Area Network (WLAN):
IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/k/r/v/w;
Frequency range: Country dependent, typically 2.4 GHz and 5 GHz bands;
2 x 2 MIMO technology for higher throughput and coverage (Wi-Fi models only)
Personal Area Network (WPAN):
Bluetooth wireless technology v5.0 (Classic Bluetooth wireless technology and BLE)
NFC Communication Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
WWAN / Cellular:
LTE-Advanced / 4G+; Cat 6 dual Nano SIM
EMEA and ROW Configuration: GSM: Quad band; WCDMA: B1/2/5/8; FDD_LTE: B1/3/5/7/8/20/28
Global Positioning System (GPS):
Integrated Assisted-GPS (A-GPS) Supported Types: GPS, GLONASS, BeiDou
Battery
1 piece swappable battery pack with rechargeable Li-Ion batteries; 3.85v; Rated 3,900 mAh, ‘SafeSwap’ for application data protection
Wireless charging:
WPC Qi Compliant; 15 Watt fast charging
Battery Life
15 Watt-hours (typical 4,100 mAh)
Drop Specification
Drop Resistance
Withstands drops from 1.8 m onto concrete (with rubber boot);
Withstands drops from 1.2 m onto concrete (without rubber boot).
Tested onto steel / concrete according to IEC 60068-2-32 method 1 and MIL STD 810G Transit drop test.
Tumbles
Withstands 1000 hits from 1 m per IEC 600-2-32 with rubber boot
Withstands 600 hits from 0.5 m per IEC 60068-2-32 method 1 without rubber boot
Environmental Sealing
IP65 and IP67
Chemical Resistance: Chemical cleanser and industrial oil resistant (both Standard and Healthcare models)
Healthcare Cleanable: Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach;applicable for both the device and cradles
ESD Protection
Operating Environment
-20 to 50 ºC
Storage Environment
-30 to 70 ºC
EMC/Safety Standards
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH)
17.0 x 7.97 x 1.92 cm
Weight
295.0 g with battery
