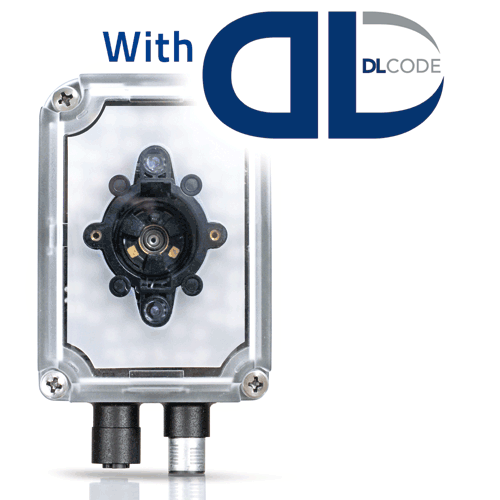

DATALOGIC MATRIX 300N Ultra Compact image based barcode reader

(Product may vary from image. Rely only on description for purchasing decisions.)

The Matrix 300N™ is a ultra-compact image based bar code reader designed for performance on high speed and Direct Part Marking (DPM) applications.The Matrix 300N™ is power by the new software DL.CODE, offering maximum customer ease of use. The Matrix 300™ combines a high resolution sensor with ultra-fast image acquisition: 1.3 megapixels, 60 frames per second. Matrix 300N™ features a large variety of optical models, with manual focus position control or electronical. Designed for manufacturing in Automotive, Electronics & Food & Beverage processes. Document Processing. Medical device traceability, Clinical Lab Automation and Logistics automation

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High Speed Imager for process Automation
  • Fast & high resolution image sensor
  • Ultra Compact dimensions
  • Liquid Lens Dynamic focus Control
  • Integrated dual illuminator; dark field/bright field
  • Power over ethernet option
  • Extreme industrial grade IP67
  • 0-50 °C operating Temprature
NameSizeDownload
Datasheet217kb dlmatrix300n_brochure.pdf

Products available to purchase

 SKUVendorName
DLMTX300N-412-010 DATALOGICMatrix 300N 412-010 LQL-9 Red Wide Std Ind Scanner
DLMTX300N-412-040 DATALOGICMatrix 300N 412-040 LQL-9 Red Wide Std Ind Scn POE
DLMTX300N-482-011 DATALOGICMatrix 300N 482-011 Industrial Scanner
DLMTX300N-712-010 DATALOGICMatrix 300N 712-010 2MP LQL-9 RED Wide Std
DLMTX300N-726-010 DATALOGICMatrix 300N 726-010 LQL-16 Red Med A Ind Scn
CAB-DLETH5-IP67 DATALOGICCAB-ETH-M05 M12-IP67 Ethernet Cable 5M
CAB-DLDS05-S-IP67 DATALOGICCable DS05-S M12-IP67 to CBX 5m
