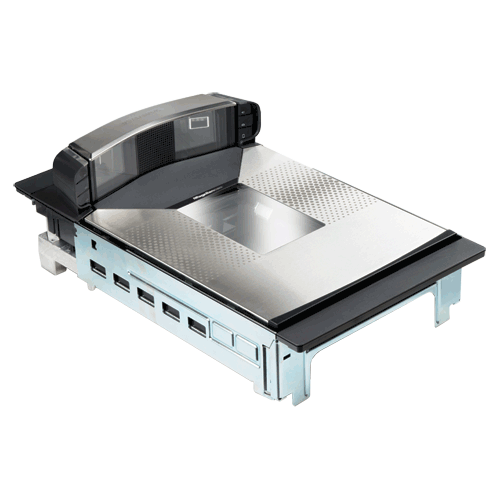

DATALOGIC Magellan® 9800i Series Bi-optic Scanner Scale

(Product may vary from image. Rely only on description for purchasing decisions.)

The new Magellan 9800i scanner is the world’s first bar code scanner driven completely by high performance digital imaging, resulting in the ability to increase checkout performance in the world’s busiest checkout environments. The Magellan 9800i scanner offers a state-of-the-art family of imaging scanners and scanner/scales with high reliability designed to provide maximum throughput for both 1D and 2D bar codes. With a new and unique optional feature, the Top Down Reader offers seamless scanning of top-marked items. The Magellan 9800i scanner also enables a new way to interact with shoppers: a customer-facing imager allows shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Advanced digital imaging in all reading planes
  • Seamless reading of 1D and 2D codes in all planes with good-read audio and visual confirmation for fast, uninterrupted scanning
  • Optional Top Down Reader (TDR) adds large topside field-of-view as well as a customer-facing mobile device reader
  • The largest ever All-Weighs™ scale platter enables effortless, accurate weighing of long or bulky items
  • ScaleSentry™ Shrink Monitoring/Prevention System reduces losses from oversized items outside the weighing surface
  • Low bonnet height allows for accessibility and flexibility in checkstand layout
  • Top side accessible service port allows for the product to stay in the counter for most service calls (including software upgrades)
  • Illumix™ Intelligent Illumination Technology designed for digital imaging in retail
Brochure205kb dlm9800i_brochure.pdf

Products available to purchase

DLM9800LS2-R1 DATALOGICMGL 9800i Lng Sc Scl Saphire Dual Displ RSx1
DLM9800MS1T-R1 DATALOGICMGL 9800i Med Sc Scl Saph Single Displ TDR R RSx1
DLM98TDR7 DATALOGIC9800i Top Down Reader 7" Short
DLM98TDR9 DATALOGIC9800i Top Down Reader 9" Medium high
AD-DLM98 DATALOGICPower Supply for Magellan 9800i needs IEC
DLM98SRDISP DATALOGICRemote Single Scale Display Metric Sgle Int
CAB-DLUSBA-PE DATALOGICUSB Cable Type A with External Power 15’

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Scan Engine
Omni-Directional Area Imager Scanner
Light Source
Multiple Diffused LED's. Orientation and wavelength optimized for eye comfort
Scan Pattern
Seamless reading of Linear and 2D codes in all planes (6 sides)
Scan Rate
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Contrast Ratio
Min. 25%
5 mil
Depth of field
Read Height 15.2 cm
Tilt Angle
Pitch Angle
Ambient Light Immunity
0 - 86,080 lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; Data Matrix; Micro QR Code; QR Code

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Magellan On-Screen Programming (OSP) configuration software is
available for download at no charge.
Remote Management Capabilities: WMI (OPOS and JavaPOS) and MBeans (JavaPOS) compliant
Host Download: Supports IBM Director, Wavelink Avalanche™ and other ERP Management Solutions.
Driver available
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Audio: 85dB Speaker, adjustable Tone & Volume, supports WAV file formats
Visual: Good Read confirmation for all reading planes, Scale center of zero, ScaleSentry™ Event, Sensormatic EAS Status
Communication Type
IBM 46xx, RS232, OEM IBM USB, Powered USB, Single cable RS232 Scanner/Scale
I/O Ports
Powered RS232 Aux Port
Powered USB host Type A x 2
EAS Controller Port
Sensormatic, Interlock
Remote Scale Display port
Scale Host Port
I/O Devices (Intergrated)
Scale (Model Dependent):
Capacity: 15 kg
Maximum Static weight 68 kg
Minimum Increment: 0.005 kg
Vibration Immunity: 4 Programmable Filter settings
Adjustments required: Calibration
Supply Voltage
AC Input: 100-250 VAC, 50-0 Hz
Power Consumption
Nominal 12 Watts, Sleep mode 11 Watts
ESD Protection
25 kV
Operating Environment
10 ~ 40 °C
RH: 5-95% Non Condensing
Storage Environment
-40 ~ 70 °C
RH: 5-95% Non Condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS, Complies to China RoHS, Complies to R.E.A.C.H., EC1907/2006
External Dimensions (WxDxH)
Width: 29.2 cm
Depth Below the Counter: 10.6 cm
Height Above the Counter: 6.8cm
9801 Short Scanner only 35.2 cm
9803 Medium Scanner only 39.9 cm
9804 Medium Scanner/Scale 39.9 cm
9806Long Scanner/Scale 50.7 cm
Long Platter Scanner/Scale 8 Kg
