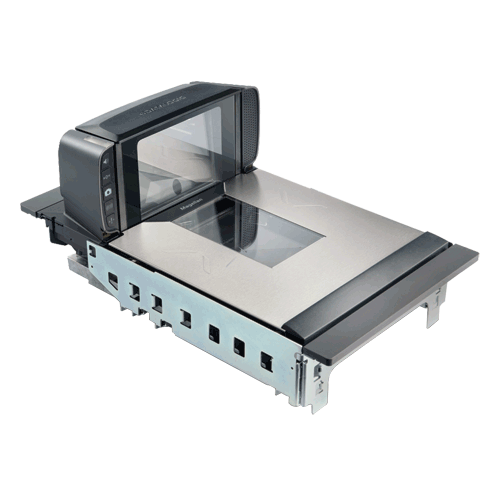

DATALOGIC Magellan® 9400i Series Bi-optic Scanner Scale

(Product may vary from image. Rely only on description for purchasing decisions.)

The Magellan™ 9400i scanner and scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9400i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. The 9400i

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Enhanced All-Weighs® Platter
  • Advanced digital imaging in all reading planes
  • Multiple interface solution supports all popular host interfaces
  • ScaleSentry™ Shrink Monitoring/Prevention System reduces losses from oversized items outside the weighing surface
  • Form factor compatible with traditional checkstands
  • Optional Magellan Customer Service Scanner
Datasheet279kb mag9300i-9400i_datasheet.pdf

Products available to purchase

DLM9400LS2-R1 DATALOGICMGL 9400i Lng Sc Scl Saphire Dual Displ RSx1

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Scan Engine
Omni-Directional Area Imager Scanner
Light Source
Multiple Diffused LED's. Orientation and wavelength optimized for eye comfort
Scan Pattern
Seamless reading of Linear and 2D codes in all planes (5 sides plus customer service scanner)
Scan Rate
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2
Contrast Ratio
Min. 25%
5 mil
Depth of field
Read Height 15.2 cm
Tilt Angle
Pitch Angle
Ambient Light Immunity
0 - 86,080 lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; Data Matrix; Micro QR Code; QR Code

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Magellan On-Screen Programming (OSP) configuration software is
available for download at no charge.
Remote Management Capabilities: WMI (OPOS and JavaPOS) and MBeans (JavaPOS) compliant
Host Download: Supports IBM Director, Wavelink Avalanche™ and other ERP Management Solutions.
Driver available
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Audio: 85dB Speaker, adjustable Tone & Volume, supports WAV file formats
Visual: Good Read confirmation for all reading planes, Scale center of zero, ScaleSentry™ Event, Sensormatic EAS Status
Communication Type
IBM 46xx, RS232, OEM IBM USB, Powered USB, Single cable RS232 Scanner/Scale
I/O Ports
Powered RS232 Aux Port
Powered USB host Type A x 2
EAS Controller Ports
Sensormatic, Interlock
Remote Scale Display port
Scale Host Port
I/O Devices (Intergrated)
Scale (Model Dependent):
Capacity: 15 kg
Maximum Static weight 68 kg
Minimum Increment: 0.005 kg
Vibration Immunity: 4 Programmable Filter settings
Adjustments required: Calibration
Supply Voltage
AC Input: 100-250 VAC, 50-0 Hz
Power Consumption
Nominal 12 Watts, Sleep mode 11 Watts
ESD Protection
25 kV
Operating Environment
10 ~ 40 °C
RH: 5-95% Non Condensing
Storage Environment
-40 ~ 70 °C
RH: 5-95% Non Condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS, Complies to China RoHS, Complies to R.E.A.C.H., EC1907/2006
External Dimensions (WxDxH)
Width: 29.2 cm
Depth Below the Counter: 10.2 cm
Height Above the Counter: 13cm
93/9401 Short Scanner only 35.6 cm
93/9403 Medium Scanner only 40.1 cm
93/9404 Medium Scanner/Scale 40.1 cm
93/9406Long Scanner/Scale 50.8 cm
Long Platter Scanner/Scale 8 Kg
