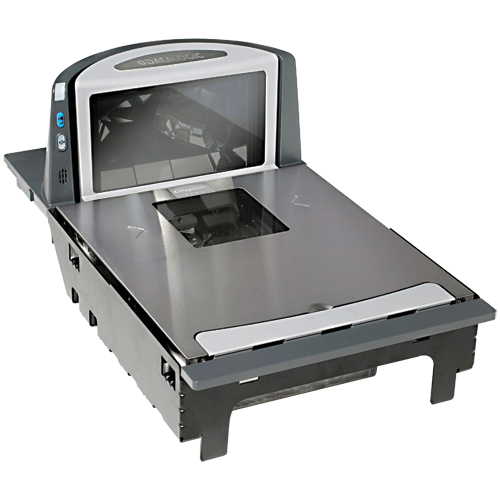

DATALOGIC Magellan® 8400 Series Bi-optic Scanner Scale ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

Highest performing 5-sided bi-optic point-of-sale scanner available. Improves operational efficiency through outstanding first-pass read rates that provide an impressive value/performance ratio. The next level in value and checkout productivity from the Magellan family and Datalogic Scanning.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Enhanced All-Weighs® Platter
  • Aggressive and ergonomic 360° 5-sided scanning
  • Multiple interface solution supports all popular host interfaces
  • FirstStrike® advanced decoding software
  • Flash memory for easy, low cost upgrades
  • Powered auxiliary RS-232 port for easy integration of a handheld scanner
  • GS1 DataBar™ (RSS) decoding
  • Optional EAS functionality
  • Integrated Produce Lift Bar or Produce Rail™
  • Value Added Features:
  • Host Download
  • Diagnostic Reporting
  • Productivity Index Reporting™ (PIR)
  • Cashier Training™
Brochure221kb dlm8400_brochure.pdf

Products available to purchase

CAB-DLV22COMBO DATALOGIC8-0735-01 KBW PS2 Cable for VS2200
CAB-DLM8R2 DATALOGICDual RS232 Scale Comm cable 8xxx 93xxi 98xxi
AD-DLM84 DATALOGICPower Supply for Magellan 8400 9300 9400 needs IEC
CAB-DLM8RS DATALOGICRS232 Scanner Cable for M9300i 9800i
CAB-DLM84USB DATALOGICUSB cable for Magellan 84 83

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Scan Engine
Omni-Directional Laser Scanner
Motor Speed 6000 rpm
Light Source
650 nm
Scan Pattern
52 Scan Lines
Scan Zone 360°
Sides Read: 5
Scan Rate
5200 Lines/sec
Contrast Ratio
Min. 25%
5 mil
Depth of field
Read Height 15.2 cm
Tilt Angle
Pitch Angle
Ambient Light Immunity
Symbologies supported
1D: Auto discriminates all standard 1D codes including GS1 Databar™ linear codes
GS1 Databar™ Expanded Stacked Codes; GS1 Databar™ Stacked Codes; GS1 Databar™ Omni Directional Stacked Codes
Programming Method
Magellan On-Screen Programming (OSP) configuration software is
available for download at no charge.
Driver available
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Beeper (Adjustable Tone & Volume)
Good Read LED
Communication Type
IBM 46xx, RS232, OEM IBM USB
I/O Ports
Powered RS232 Aux. Port
EAS Port
Remote Scale Display port
Scale Host Port
I/O Devices (Intergrated)
Scale (Model Dependent):
Capacity: 15 kg
Maximum Static weight 68 kg
Minimum Increment: 0.005 kg
Vibration Immunity: 4 Programmable Filter settings
Adjustments required: Calibration
Supply Voltage
AC Input: 100-250 VAC, 50-0 Hz
Power Consumption
Max 8 Watts, nominal 7 Watts, Sleep mode 4 Watts
ESD Protection
25 kV
Operating Environment
10 ~ 40 °C
RH: 5-95% Non Condensing
Storage Environment
-40 ~ 70 °C
RH: 5-95% Non Condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS
Caution Laser Radiation - Do not stare into beam; EN 60825-1 Class 1; IEC 60825-1 Class 1
External Dimensions (WxDxH)
Width: 29.2 cm
Depth Below the Counter: 10.2 cm
Height Above the Counter: 13.0 cm
8401 Short Scanner only 35.6 cm
8402 Medium Scanner only 40.1 cm
8403 Long Scanner only 50.8 cm
8404 Medium Scanner/Scale 40.1 cm
8405 Long Scanner/Scale 50.8 cm
Medium Platter Scanner/Scale 8.2 Kg
Long Platter Scanner/Scale 9.1 Kg
