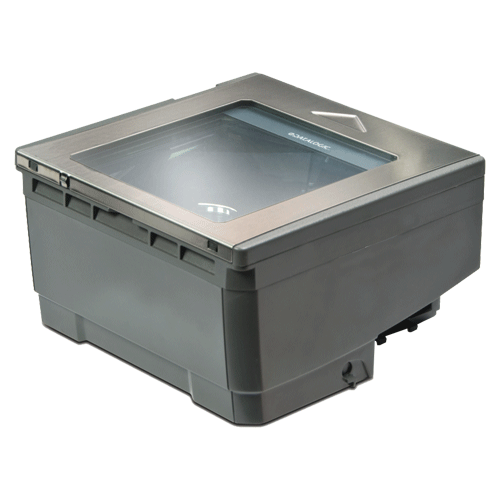

DATALOGIC Magellan® 2300HS Horizontal Omni-directional Presentation Scanner ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

Aggressive Omni Directional performance and intuitive operation reduces checker training and speeds checkout for better customer service. With OmegaTek Productivity Technology, which Improves front end checkout productivity by reducing or eliminating re-scans or no-scans

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • OmegaTek™ Productivity Technology
  • Aggressive horizontal scan volume
  • FirstStrike® advanced decoding software
  • RSS Decoding capability
  • Flash memory for easy software upgrades
  • Multiple interface solution supports all popular host interfaces
  • Powered auxiliary RS-232 port for easy integration of a handheld scanner
  • Host diagnostic reporting
  • Optional EAS functionality
  • Optional Productivity Index Reporting™ software
  • 2005 Sunrise Compliant
NameSizeDownload
Brochure79kb dlm2300hs_datasheet.pdf
Product Reference Guide2,110kb dlm2200vs_2300hs_prg.pdf

Products available to purchase

 SKUVendorName
CAB-DLV22COMBO DATALOGIC8-0735-01 KBW PS2 Cable for VS2200
AD-DL12VR15N DATALOGICPlug Pack 12V 18W Ctr Neg 2.1mm plug with Power cord
CAB-DLM8RS DATALOGICRS232 Combined Scan Scale cable for M83 84 93 98

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Omni-directional Laser (Horizontal Plane)
Motor Speed 6,000 RPM
Light Source
650nm VLD
Scan Pattern
18 Scan Lines
Scan Rate
Up to 1800 Scans/sec
Motion Tolerance
N/A
Contrast Ratio
35% minimum reflective difference
Resolution
0.130 mm / 5 mils
Depth of field
Read height 15.2cm
Printing resolution, contrast, and ambient light dependent.
Tilt Angle
N/A
Pitch Angle
N/A
Skew Angle
N/A
Ambient Light Immunity
Fluorescent, incandescent, mercury vapor and sodium vapor: 450 ft-candles (4,844 lux)
Sunlight: 8,000 ft-candles (86,111 lux)
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities

Optional features available: Diagnostic Reporting, Productivity Index Reporting
Indicators/Controls
Scanner Indicators:
Adjustable tone beeper
Operating Modes
Presentation Auto-trigger
Communication Type
Corded
Interfaces
IBM 46XX, RS232, IBM USB, USB Keyboard
Output port: Powered AUX RS232
Optional: EAS
Supply Voltage
AC INPUT: 90-265 VAC, 47-63Hz Power Supply, 10V DC 800mA
Power Consumption
Operating Max 9.6W, Operating Nominal 4W
Drop Specification
N/A
Environmental Sealing
N/A
ESD Protection
Functional after 25kV Air discharge
Operating Environment
10 to 40 °C
RH 5% ~ 90% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 90% non condensing
EMC/Safety Standards
TUV, UL60950(USA), CISPR22-B, IEC60285-1 Class 1
External Dimensions (WxDxH)
Scanner: 152 x 152 x 86mm
Weight
1.1Kg
