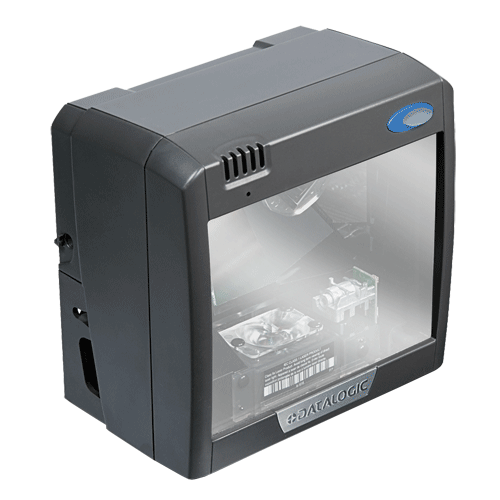

DATALOGIC Magellan® 2200VS Vertical Omni-directional Presentation Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

Aggressive Omni Directional performance and intuitive operation reduces checker training and speeds checkout for better customer service. With OmegaTek Productivity Technology, which Improves front end checkout productivity by reducing or eliminating re-scans or no-scans

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • OmegaTek™ Productivity Technology
  • Aggressive vertical scan volume
  • FirstStrike® advanced decoding software
  • RSS Decoding capability
  • Flash memory for easy software upgrades
  • Multiple interface solution supports all popular host interfaces
  • Powered auxiliary RS-232 port for easy integration of a handheld scanner
  • Host diagnostic reporting
  • Optional EAS functionality
  • Optional Productivity Index Reporting™ Software
  • 2005 Sunrise compliant
NameSizeDownload
Brochure146kb dlm2200vs_brochure.pdf
Product Reference Guide2,110kb dlm2200vs_2300hs_prg.pdf

Products available to purchase

 SKUVendorName
CAB-DLV22COMBO DATALOGIC8-0735-01 KBW PS2 Cable for VS2200
AD-DL12VR15N DATALOGICPlug Pack 12V 18W Ctr Neg 2.1mm plug with Power cord
CAB-DLM8RS DATALOGICRS232 Combined Scan Scale cable for M83 84 93 98
CAB-DLV22U15 DATALOGICUSB Type A Cable 4.5m for VS2200

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Omni-Directional Laser Scanner
Light Source
650 nm
Scan Pattern
20 Scan Lines
Scan Rate
Contrast Ratio
Min. 25%
Resolution
5 mil
Depth of field
Read Height 15.2 cm
Tilt Angle
N/A
Pitch Angle
N/A
Ambient Light Immunity
N/A
Symbologies supported
1D: Auto discriminates all standard 1D codes including GS1 Databar™ linear codes
Programming Method
Magellan On-Screen Programming (OSP) configuration software is
available for download at no charge.
Driver available
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Indicators/Controls
Beeper (Adjustable Tone & Volume)
Interfaces
IBM 46XX, RS232, IBM USB, USB Keyboard, USB COM, Keyboard Wedge
I/O Ports
Powered RS232 Aux. Port
EAS: Checkpoint Systems: Integrated Hardware will work with Counterpoint IV, V, VI & VII models
Sensormatic: Good read acknowledgement
Micro-SD card reader to help with software maintenance and upgrades
Supply Voltage
AC Input: 90-265 VAC, 47-63 Hz
Output; 10V 800mA
Power Consumption
Max 9.6 Watts, nominal 4.0 Watts, Sleep mode 2.5 Watts
ESD Protection
25 kV
Operating Environment
10 ~ 40 °C
RH: 5-95% Non Condensing
Storage Environment
-40 ~ 70 °C
RH: 5-95% Non Condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS
Caution Laser Radiation - Do not stare into beam; EN 60825-1 Class 2; IEC 60825-1 Class 2
External Dimensions (WxDxH)
15.2 x 15.2 x 9.7 cm
Weight
1.1 Kg
