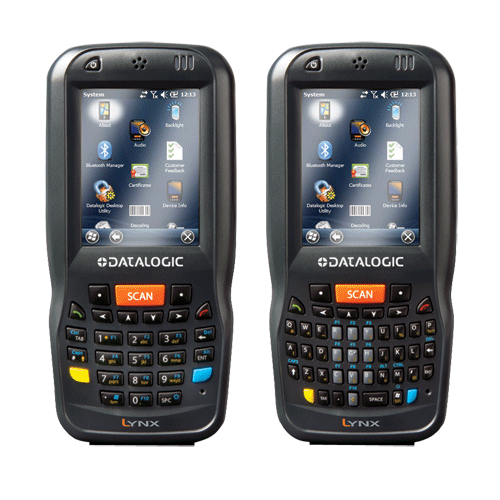

DATALOGIC LYNX Portable Data Terminal ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The Lynx™ PDA combines the latest technology in a pocketable and robust package. This state-of-the-art PDA features an 806 MHz processor with 256 MB RAM and 512 MB Flash, all delivered in the industry’s most appreciated ergonomic form factor. The Lynx PDA has handy LED’s to provide instant status on battery charging, good read indicator and keyboard state. It offers a vibrator for customizable alerts and an accelerometer to automatically orient the display.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Ergonomic, compact and robust
  • Microsoft Windows Embedded Handheld 6.5
  • Optional Assisted GPS (A-GPS) with Skyhook‘s Core Engine hybrid positioning system for location-based applications
  • Optional 3G/4G (HSPA+) mobile radio for voice and data communication
  • Summit embedded 802.11 b/g/n radio Cisco CCX v4 certified for enterprise-class mobile connectivity
  • Bluetooth® wireless technology Class 2 with EDR for simultaneous connections with lower power consumption
  • Laser or wide aspect 2D imager
  • Optional 3 Megapixel autofocus camera with flash
  • 256 MB RAM / 512 MB Flash memory
  • XScale™ PXA 310 @ 806 MHz processor
  • User-accessible micro SD memory slot (SDHC)
  • Ruggedized with 1.2 m / 4 ft drop to concrete resistance and IP54 protection class
  • Wavelink Avalanche® device management pre-licensed
NameSizeDownload
Datasheet558kb lynx_datasheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
XScale™ PXA310 @ 806 MHz
Operating Platform
Microsoft Windows Embedded Handheld 6.5 with Mobile Tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
Development Environment
Datalogic Windows SDK™
MCL-Collection™
Wavelink Studio™
Java Virtual Machine
Software Utilities
Pal™ Application Library
Vo-CE™ (voice recognition)
Wavelink SpeakEasy (voice recognition)
Wavelink Industrial Browser™
Memory
Ram Memory: 256 MB
Flash Memory: 512 MB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards; User-accessible
Scan Options
2D Imaging Engine: Optical Resolution: Linear codes: 4 mils; 2D codes: 5 mils; Scan Rate: 60 frames/sec maximum, Depth of Field: 3.5 to 41.5 cm, depending on bar code density and type, Resolution: VGA (752 H x 480 V pixels), 256 gray scale, Image Format: BMP, JPEG
or
Laser: Scan Rate: 104 +/- 12 scan/sec, Optical Resolution: 0.10 mm / 4 mils, Depth of Field: 4 to 82 cm, depending on bar code density
Both with Good Read Feedback: Datalogic’s patented ‘Green Spot’ for good-read feedback
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked codes; Micro-PDF417, PDF417
Keyboards
27-key Numeric or 46-key QWERTY backlit keyboard standard; Side scan keys and volume setting
Audio
Display
TFT-LCD color display QVGA: 320 x 240 pixels; 2.7 in diagonal; 262, 144 color display capability; Full Graphics with backlight; Touch Screen
Camera
Resolution: 3 megapixel; Illumination: User controllable flash; Lens: Auto focus
I/O Ports
Micro-USB connector: USB 1.1 Client and USB 1.1 Host Handylink connector: integrated RS-232 up to 115.2 Kbps, USB 1.1 Client, USB 1.1 Host Ethernet: via single dock (external module) or multiple cradle
Radio Options
(WLAN) Summit IEEE 802.11 b/g/n Cisco CCX v4 certified Frequency range: Country dependent, typically 2.4 GHz bands

(WPAN) Bluetooth® Wireless Technology IEEE 802.15 v2.0 with EDR

(WWAN) 3G/4G (HSPA+), 4G when used on AT&T network with enhanced backhaul: 800/850/900/1900/2100 MHz; GSM/GPRS/ EDGE: 850, 900, 1800, 1900 MHz for voice and data communication; SIM socket under the battery

(GPS) Integrated Assisted-GPS (A-GPS) with Qualcomm gpsOneXTRA Assistance technology
Battery
Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; 1800 mAh (6.7 Watt-hours)
Extended: 3.7 V; 3600 mAh (13.3 Watt-hours)
Battery Life
Drop Specification
Withstands drops from 1.2 m / 4.0 ft onto concrete
Environmental Sealing
IP54
ESD Protection
Operating Environment
Operating: 0 to 50 ºC / 32 to 122 ºF
Storage Environment
Storage/Transport: -20 to 70 ºC / -4 to 158 ºF
EMC/Safety Standards
External Dimensions (WxDxH)
With Standard Battery: 14.4 x 6.8 x 2.7 cm / 5.6 x 2.6 x 1.0 in

With Hi-Capacity Battery: 14.4 x 6.8 x 3.3 cm / 5.6 x 2.6 x 1.3 in
Weight
With Standard Battery: 270.0 g / 9.5 oz
With Hi-Capacity Battery: 300.0 g / 10.6 oz
