DATALOGIC Joya™ Touch 22 Portable Data Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

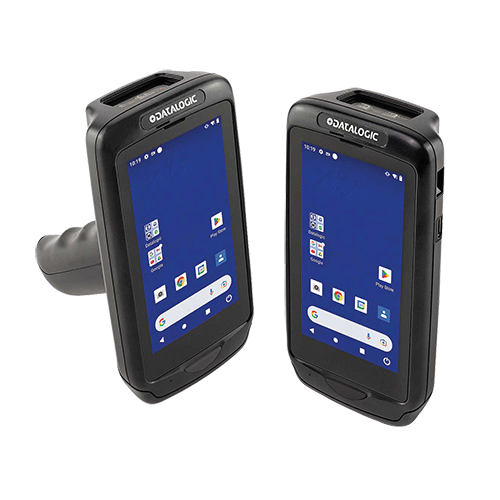

JOYA™ Touch 22 - The replacement Full Touch PDA for the MEMOR 1JOYA™ Touch 22 is your business companion for any data capture application, from assisted sales to the shop floor, or back-end receiving to the warehouse.The Memor 1 device comes with a powerful Qualcomm SDA660 platform and features Android™ 11. This device is available in two form factors: a hand held version resembling a rugged smartphone or a pistol-grip version with a comfortable trigger.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Qualcomm® platform SDA660 System-on-Chip running at 2.2 GHz
  • Android™ operating System with Google Mobile Services
  • 4 GB RAM Memory and 32 GB Flash Memory storage
  • Wi-Fi featuring 2x2 MU-MIMO for higher throughput and coverage
  • Advanced Megapixel imager, ideal for all types of 1D/2D codes on printed material or displayed on screens
  • Bluetooth® v5.1 with BLE to support different peripherals consuming less power
  • Backward compatibility with all Joya Touch and Memor 1 accessories
  • Datalogic’s ‘Green Spot’ technology for visual good-read feedback
  • Compatible with all major MDM providers
  • Large 4.3 inch capacitive multi-touch FWVGA display with Corning Gorilla® Glass 3
  • Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
  • Wireless charging technology eliminates all contacts on the device and cradle
  • Precise indoor location with Quuppa Intelligent Locating System™
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment
NameSizeDownload
Datasheet407kb DS-JOYATOUCH-22-EN.pdf

Products available to purchase

 SKUVendorName
DLJYTG-C2-BNA-BKIT DATALOGICJoya Touch 22 Blk & Charger Kit
DLJYTG-C2-BNA DATALOGICJoya Touch 22 Gun PDT BT Wifi 2D Scn A11
DLMM1-DCBASE DATALOGICMemor 1 Single Slot Dock Charge only Black w PS
DLMM1-RBOOT DATALOGICRubber protection Boot for MEMOR1
DLZSC2JOYT2231 DATALOGICJoya Touch 22 EoC 2 Days 3 Years Comprehensive

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm® SD660 2.2 GHz processor
3 Axis accelerometer to detect orientation
3 Axis Gyroscope sense angular velocity
Operating Platform
Android 11 (upgradeable to Android 13)
Development Environment
Datalogic Android SDK; Xamarin SDK; Ionic Cordova SDK; React Native SDK; Datalogic Enterprise Browser Javascript SDK
Software Utilities
Datalogic launcher as lockdown solution; Datalogic Enterprise Browser as lockdown browser supporting Javascript SDK;
Others: Datalogic’s SoftSpot soft Trigger; WiFi Guard; Datalogic Logger
Provisioning: Scan2Deploy Studio; Android Zero-Touch; QR Code Enrollment
Config & Maintenance: Scan2Deploy Studio; OEM Config; ProfileManager; Wi-Fi QR Code Generator
Terminal Emulation: StayLinked SmartTE, Wavelink Velocity
MDM: Soti MobiControl; VMWare Airwatch; Ivanti Avalanche; 42Gears SureMDM; Microsoft Intune
Memory
System Flash: 32 GB Flash Disk
System RAM: 4 GB
Memory Expansion
N/A
Scan Options
Advanced 2D imaging technology with image capture
Print Contrast (Minimum) 25%
Field of View 42°H x 32°V
Depth of Field 4.5 to 42.0 cm on UPC/EAN 13
Resolution (Maximum) 1D Linear: 2.5 mils; Data Matrix: 6 mils; PDF417: 3 mils
Reading Indicators: Datalogic’s ‘Green Spot’ technology for visual good-read feedback, Vibration software programmable
Symbologies supported
1D / Linear Codes:
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes:
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
Postal Codes:
Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes:
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Digital Watermark Codes:
Digimarc Barcode (Red LED illumination model)
Keyboards
Physical Keys
Handheld: Home/scan fully programmable key
Pistol-Grip: Home/scan fully programmable key; Scan Trigger key
Audio
Speaker (Polyphonic)
Display
4.3 inch full touch TFT-LCD color display; FWVGA: 854 x 480 pixels; 16M colors, LED backlight, Capacitive, multi-touch, Gorilla® Glass 3 with Air Gap
Camera
N/A
I/O Ports
USB-C: High Speed USB 2.0 Host and Client
Radio Options
Local area network (WLAN):
IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6
2x2 MU-MIMO for higher throughput and coverage
Frequency range: country dependent, typically 2.4 GHz and 5 GHz bands
Security standards: WPA/WPA2/WPA3 Personal and Enterprise 802.1x EAP: PEAP/MSCHAPv2, PEAP/GTC, TLS, TTLS/PAP, TTLS/MSCHAP, TTLS/MSCHAPv2, TTLS/GTC, PWD, TLS (WPA3 SuiteB/192-bit)
Personal area network (WPAN)
Class 2, Bluetooth V5.1, with BR/EDR and Bluetooth Low Energy (BLE)
NFC:
Communication between device and dock
Battery
Replaceable battery pack with rechargeable Li-Ion batteries; 3.6 V; 3300 mAh
Wireless charging
Two charging options: Fast charging or Standard charging
Battery Life
12 Watt hours
Drop Specification
Withstands repeated drops from 1.2 m onto steel or concrete according to IEC 60068-2-32 method 1
Tumble Specifications: 1000 0.5 m tumbles at room temperature according to IEC 60068-2-232 method 2
Environmental Sealing
ESD Protection
Operating Environment
-10 to 50 ºC
Storage Environment
-10 to 50 ºC
EMC/Safety Standards
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH)
Handheld: 14.5 x 7.7 x 3.4 cm
Pistolgrip; 14.5 x 7.7 x 11.6 cm
Weight
Handheld: 285.0 g
Pistolgrip; 317.0 g
