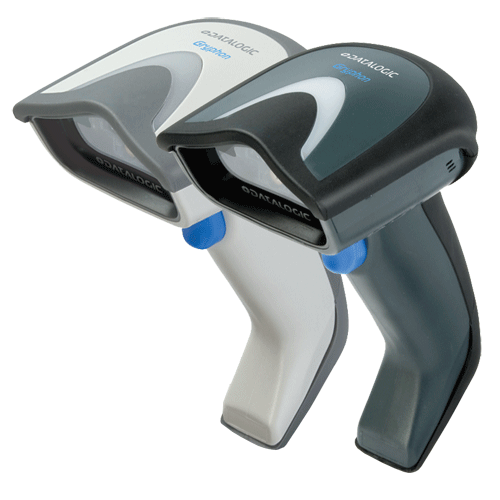

DATALOGIC GRYPHON™ L GD-4300 Laser Scanner *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

For customers who want the high performance associated with laser scanning technology, the Gryphon GD4300 scanner is an ideal solution providing longer reading distances, snappy performance with a bright, well-defined scan line. Poor quality bar codes and low contrast labels with bad edge definition are not a problem for this Gryphon scanner, plus Datalogic’s patented Green Spot provides visual good-read feedback directly on the code, allowing for fast and accurate scanning which is especially useful in noisy environments or in places where “beep-free” reading is desired.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • Aggressive reading performance: over 100 scans/second
  • Excellent depth-of-field over 47.0 cm / 19.0 in
  • Datalogic Green Spot for good-read feedback
  • Remote Host Download lowers service costs and improves operations (GD4310 Model)
  • Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand Emulation
  • 1.8 m / 5.9 ft Drop Resistance
  • Water and Particulate Sealing Rating: IP52
  • USB Certified Kits Available
NameSizeDownload
Brochure346kb dlgd4300_brochure.pdf
Quick Reference Guide2,617kb dlgd4300_qrg.pdf
Product Reference Guide13,403kb dlgd4300_gbt4100_gm4100_prg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
630-680nm VLD
Scan Pattern
Single Line
Scan Rate
Up to 100 Reads/sec
Contrast Ratio
25% minimum reflective difference
Resolution
0.102 mm / 4 mils
Depth of field
3.6 to 15.8 cm on 5 mils barcode
2.8 to 35.0 cm on 10 mils barcode
Up to 69.0 cm on 20 mils barcode
Tilt Angle
+/- 35 deg.
Pitch Angle
+/- 50 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper
Operating Modes
Trigger, Auto-trigger
Communication Type
Corded
Interfaces
GD4330: USB, RS232, Wedge & Wand Multi Interface
GD4310: RS232, IBM 46XX, USB Multi Interface
Supply Voltage
GD4330: 4.75-5.25 VDC
GD4310: 4.5-14.0 VDC
Power Consumption
GD4330: Operating typical 260mA @ 5V
GD4310: Operating typical 185mA @ 5V
Standby/Idle Typical 30 mA @ 5V
Drop Specification
Withstands repeated drops from 1.8 m onto concrete
Environmental Sealing
IP52
ESD Protection
Functional after 16kV Air discharge
Operating Environment
0 to 55 °C
RH 5% ~ 90% non condensing
Storage Environment
-20 ~ 70 °C
RH 5% ~ 90% non condensing
EMC/Safety Standards
Caution Laser Radiation - Do not stare into beam; CDRH Class II; IEC 60825-1 Class 2
External Dimensions (WxDxH)
Scanner: 71 x 100 x 181mm
Weight
169g
