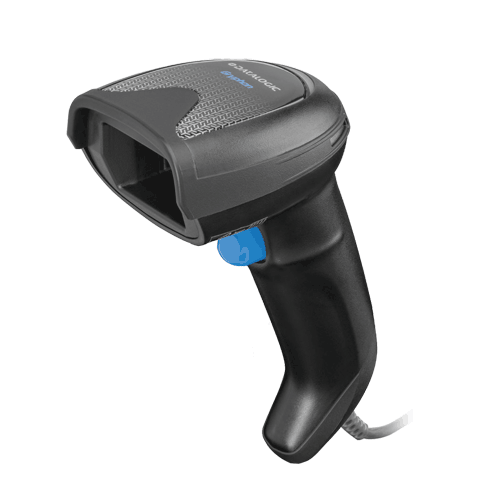

DATALOGIC GRYPHON™ I GD-4500 2D Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • 1 MP optics for superior scanning and Depth of Field
  • Datalogic distinctive technology with highly visible white-illumination and 4-Dot aimer with center cross for targeted scanning
  • Datalogic’s patented ‘Green Spot’ technology and exclusive 3GL™ (3 Green Lights) for superior good-read feedback
  • Motionix™ motion-sensing technology for seamless reading mode transitions
  • Omnidirectional reading
  • Advanced motion tolerance optics
  • Image capture and document scanning capabilities
  • Reads 1D, 2D and postal codes plus stacked and composite codes
  • Digital Watermarking and DPM reading on specific models/applications
  • Multi-interface options: USB-only or multi-interface RS-232 / USB / Keyboard Wedge
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Brochure99kb dlgd4500_brochure.pdf

Products available to purchase

DLGD4520B-U DATALOGICGryphon I GD4520 2D Scanner with USB Cable Blk
DLGD4590BHD DATALOGICGryphon I GD4590 2D HD Scanner no Cable
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DLG4SU DATALOGICCable USB A Enhanced Str Power Off Terminal
DLGD45WHLD-B DATALOGICDesk Wall Holder for the GD4500 Series Black
DLGD45BSTD-B DATALOGICHandsfree Stand auto for GD4500 Series Black
DLGD45MHLD-B DATALOGICMulti Purpose Holder for the GD44 45 Series Black
CAB-DL321 DATALOGICPS2 KB straight cable for Heron Gryphon

All Vendor Sku's for this Products

This product is equivalent to the following products

1900gXenon 1900 Series 2D Imager Scanner

Parts documents

Parts layout details

Scan Engine
Area Imager
Light Source
Aiming: Red Laser 650 nm
Illumination: Warm White; Hyper Red LED for Digimarc
Scan Pattern
1280 x 800 Pixels
Scan Rate
Motion Tolerance
35 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2
Capture Area
Contrast Ratio
15% Minimum reflective difference
Standard Range (SR):
1D Linear: 0.102 mm / 4 mils
PDF417: 0.127 mm / 5 mils
Data Matrix: 0.195 mm / 7.5 mils

High Density (HD):
1D Linear: 0.077 mm / 3 mils
PDF417: 0.077 mm / 3 mils
Data Matrix: 0.102 mm / 4 mils
Depth of field
Standard Range (SR):
Code 39: 5 mils - 7.0 to 38.0 cm
Code 39: 10 mils - 2.2 to 58.0 cm
Data Matrix: 10 mils - 5.5 to 27.0 cm
Data Matrix: 15 mils - 2.8 to 41 cm
EAN-13: 13 mils - 1.0 to 71.0 cm
PDF417: 10 mils - 2.5 to 41.0 cm
QR Code: 10 mils - 5.5 to 24 cm

High Density (HD)
Code 39: 3 mils - 5.0 to 15 cm
Code 39: 5 mils - 0.5 to 25.0 cm
Data Matrix: 5 mils - 5.5 to 9.0 cm
Data Matrix: 10 mils - 2.0 to 27.0 cm
EAN-13: 7.5 mils - 2.0 to 23.5 cm
EAN-13: 13 mils - 1.0 to 40.0 cm
PDF417: 4 mils - 3.0 to 12.0 cm
PDF417: 10 mils - 0.5 to 31.0 cm
QR Code: 10 mils - 2.0 to 25.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
Pitch Angle
+/- 65°
Skew Angle
+/- 65°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D CODES: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code

POSTAL CODES: Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations)
Driver available
JavaPOS, OPOS Utilities
Beeper (Adjustable Tone)
Datalogic Three Green Lights (3GL) Good Read Feedback
Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
Communication Type
GD4520: USB only
GD4590: RS-232 / USB / Keyboard Wedge Multi-Interface
Supply Voltage
GD4520: 5 VDC
GD4590: 4.5 - 14.0 VDC
Power Consumption
Operating: <300 mA @ 5V, < 200 mA @ 12V
Standby/Idle: < 90 mA @ 5V, <50 mA @ 12V
Drop Specification
Withstands repeated drops from 1.8 m onto a concrete surface
Environmental Sealing
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 0 - 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 0 - 95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE Complies to China RoHS; Complies to EU RoHSLASER CLASSIFICATION Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2
External Dimensions (WxDxH)
Scanner: 68 x 109 x 166mm
