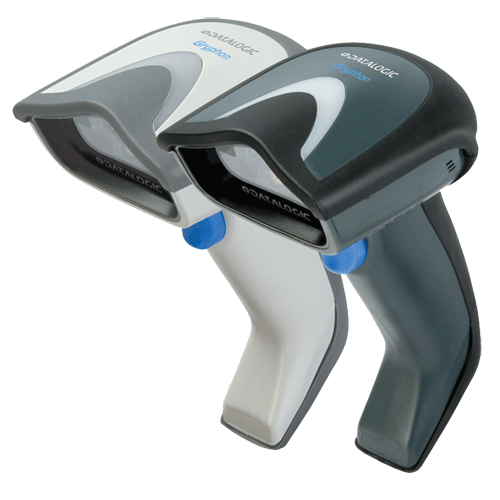

DATALOGIC GRYPHON™ I GD-4100 Linear Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gryphon™ I Handheld scanner family of products builds on linear and full imaging technologies. Plug and play with enhanced multi-standard architecture, and is ergonomic and user-friendly for intuitive operation. Its modular design is open to upgrades.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • Handheld Linear Imager Scanner
  • Extremely snappy reading performance with speeds up to 325 reads/second
  • Extended reading distances including up to 60.0 cm / 23.6 in for 13 mil UPC/EAN 13 labels
  • Wide 42° scan angle for reading wider codes
  • Datalogic's patented 'Green Spot' for good-read feedback
  • Supports GS1 DataBar™ linear codes
  • Remote Host Download lowers service costs and improves operations (GD4110 Model)
  • Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand
  • IP52 Rating: Water and Particulate Sealing
  • Drop resistance to 1.8 m
Datasheet301kb gd4100_datasheet.pdf
Quick Reference Guide1,857kb dlgbt4100_qrg.pdf
Product Reference Guide7,237kb dlgd4100_um.pdf
Datalogic Aladdin Configuration Utility43,917kb

Products available to purchase

DLGD4132B-U DATALOGICGryphon 4132 Black1D Imager Scanner with USB Cable
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DLG4SU DATALOGICCable USB A Enhanced Str Power Off Terminal
DLGD41AUTOSTD-B DATALOGICHandsfree Stand Auto Sensing B
DLGD41AUTOSTD-W DATALOGICHandsfree Stand Auto Sensing W
DLGD41BSTD-B DATALOGICHandsfree Stand Standard Blk
DLGD41BSTD-W DATALOGICHandsfree Stand standard Wh
CAB-DL321 DATALOGICPS2 KB straight cable for Heron Gryphon
DLGD41WHLD-B DATALOGICWall Desk Holder for GD41 Blk
DLGD41WHLD-W DATALOGICWall Desk Holder for GD41 Wh

All Vendor Sku's for this Products

This product is equivalent to the following products

1300gHyperion 1300g Linear Imager
3800GIT-3800G Linear Imager
3800LRIT-3800LR Linear Imager
GD4330GRYPHON GD-4330 Laser Scanner

Parts documents

Parts layout details

Scan Engine
CCD Solid State
Light Source
Dual LED Array 630-670nm
Scan Pattern
Single Line
Scan Rate
Up to 325 Reads/sec
Contrast Ratio
15% minimum reflective difference
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
6.0 to 18 cm on 5 mils barcode
3.5 to 30 cm on 7.5 mils barcode
2.0 to 45 cm on 10 mils barcode
3.0 to 60 cm on 13 mils barcode
3.0 to 80 cm on 20 mils barcode
Tilt Angle
+/- 35 deg.
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper
Operating Modes
Trigger, Auto-trigger
Communication Type
GD4130: USB, RS232, Wedge & Wand Multi Interface
GD4110: RS232, IBM 46XX, USB Multi Interface
Supply Voltage
GD4130: 4.75-5.25 VDC
GD4110: 4.5-14.0 VDC
Power Consumption
GD4130: Operating typical 245mA @ 5V
GD4110: Operating typical 225mA @ 5V
Standby/Idle Typical 120 mA @ 5V
Drop Specification
Withstands repeated drops from 1.8 m onto concrete
Environmental Sealing
ESD Protection
Functional after 16kV Air discharge
Operating Environment
0 to 55 °C
RH 0% ~ 90% non condensing
Storage Environment
-20 ~ 70 °C
RH 0% ~ 90% non condensing
EMC/Safety Standards
UL 60950, CSA C22.2 No. 60950, IEC 60950
LED: IEC 60825-1 Class 1
External Dimensions (WxDxH)
Scanner: 80 x 100 x 181mm
