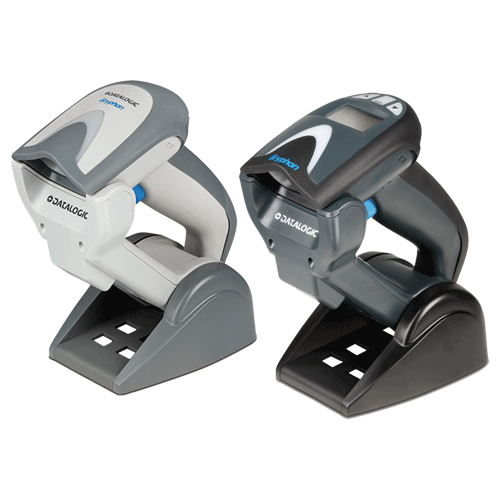

DATALOGIC GRYPHON™ GM-4430 Cordless 2D Imaging Scanner ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

With rich feature sets, the Gryphon™ series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon™ GM4400 2D scanner blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless 2D Imaging Scanner
  • Datalogic STAR Cordless System™ with up to 30 m / 98 ft range
  • Radio frequencies available in 433 MHz or 910 MHz
  • Point-to-point and multi-point transmission
  • Datalogic’s patented ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
  • Two-position cradle with Scan-While-Charging capability
  • Optional Counterfeit Detection
  • USB Certified Kits Available
NameSizeDownload
Datasheet207kb dlgm4400_datasheet.pdf
Product Reference Guide13,642kb dlgd44xx_gbt4400_prg.pdf
Quick Reference Guide2,340kb dlgm44xx_qrg.pdf
Base Station Quick Reference Guide886kb dlchr-gm40_qrg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph
CAB-DLCOBUSB DATALOGICStraight USB Cable for Cobalto HD3130 QM Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
1902gXenon 1902 Cordless Area Imager Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 630 - 670 VLD (Visible Laser Diode)
Scan Pattern
752 x 480 Pixels
Scan Rate
Motion Tolerance
25 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
Standard Range (SR):
1D Linear Max. 0.102mm / 4 mils
Datamatrix 0.178mm / 7 mils
PDF417 0.127mm / 5 mils
Depth of field
Standard Range (SR):
Code 39: 5 mils - 4.0 to 19.0 cm
Data Matrix: 10 mils - 2.0 to 16.0 cm
Data Matrix: 15 mils - 0 to 23.6 cm
EAN-13: 13 mils - 1.5 to 40.0 cm
PDF417: 10 mils - 0.5 to 22.0 cm
QR Code: 10 mils - 3.0 to 12.5 cm

High Density (HD)
Code 39: 3 mils - 2.4 to 9.1 cm
Code 39: 5 mils - 0.8 to 11.3 cm
Data Matrix: 5 mils - 2.8 to 6.1 cm
EAN-13: 13 mils - 1.1 to 17.2 cm
PDF417: 4 mils - 1.8 to 6.8 cm
PDF417: 10 mils - 0 to 14.3 cm
QR Code: 6.7 mils - 2.1 to 4.2 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations - BC4010)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper

Cradle Indicators:
Battery charging (Red)
Charge completed (Green)
Power/Data (Yellow)
Communication Type
Datalogic Star Cordless System™
Communication Technology
Radio Frequency: 433.92 MHz
Effective Radiated Power: <10 mW
Radio Range : 30m open air
Max 16 readers per radio receiver
Coexisting Systems: max. 2048 readers in the same area
Point to point communications
Interfaces
BC4010 Cradle: RS-232/IBM46xx/USB Multi-Interface
BC4030 Cradle: RS-232/USB/KBW/Wand Emulation Multi-Interface
Supply Voltage
4.75 ~ 14.0 VDC
Power Consumption
Charging : Typical < 8W
Operating : Typical 2.5W @5VDC
with external Power supply
Standby/Idle: Typical 2.5mA @ 5VDC
Drop Specification
Withstands repeated drops from 1.8 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity up tp 95% none condensing
Storage Environment
-20° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2
External Dimensions (WxDxH)
Scanner: 71 x 100 x 181mm
Cradle: 99 x 56 x 186 mm
Weight
Reader 245g including battery
Cradle: 246g
