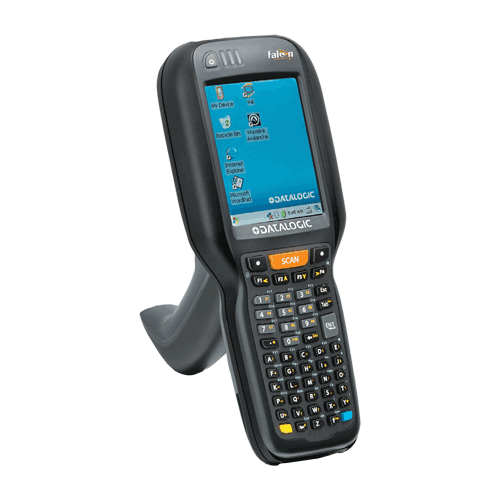

DATALOGIC Falcon X4 Gun BT WAN Alpha AutoR 2D Imager A4.4

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLX4G-AX2-BN0A
  • 945550032
  • DATALOGIC
  • FALCONX4
    • Login to view pricing and availability

Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, Auto Range 2D Imager, Android 4.4, EU

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Ultra Rugged Portable Data Terminal
  • Full-shift hot swappable battery
  • 3.5 inch touchscreen display
  • Ruggedized with 1.8 m / 6.0 ft drop to concrete and IP65 sealing rating
  • Choice of 1D or 2D imagers featuring Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Extra Long Range 2D Imager option (coming soon)
  • Choice of Microsoft Windows Embedded Compact 7 or Android v4.4
  • TI 802.11 a/b/g/n radio with CCX v4 compliance and featuring MIMO antenna technology
  • 1 GB RAM / 8 GB Flash memory
  • Bluetooth wireless technology v4.0 with BLE (low energy) and Wide Band Audio for improved speech recognition (Android models only)
  • Corning® Gorilla® Glass 3 scan window
  • WEC7 units include: Wavelink® Avalanche™ and Terminal Emulation pre-installed and pre-licensed; Pal pre-installed and pre-licensed
  • Upgradable to Android 4.4
  • Attachable handle (and orderable pre-installed)
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment
NameSizeDownload
Datasheet254kb falconx4_datasheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
99EXDolphin® 99EX Portable Data Terminal
FALCON X3Falcon X3 X3+ PDT

Parts documents

Parts layout details

Specifications
Processor
TI OMAP4 @ 1 GHz
Operating Platform
Microsoft Windows Embedded Compact 7 (WEC7) or Android v4.4
Development Environment
WEC7: Datalogic Windows SDK™
Android: Datalogic Android SDK, Xamarin SDK
Software Utilities
APPLICATIONS: Pal Application Library pre-licensed (WEC7 only)
CONFIGURATION & MAINTENANCE: Wavelink Avalanche® pre-licensed (WEC7 only), 42 Gears SureLock pre-licensed for device lockdown (Android only); SOTI MobiControl (optional), Datalogic xPlatform Utility (DXU) pre-licensed, Datalogic Desktop Utility (DDU) pre-licensed for device lockdown (WEC7 only)
BROWSER: SureFox locked web browser pre-licensed for WEC7 and Android models
TERMINAL EMULATION: Wavelink® Terminal Emulation™ pre-licensed (for WEC7 models only); StayLinked SmartTE (for Android); Wavelink Velocity (for Android)
Memory
System RAM:1GB
Flash: 8GB (partially used for firmware and reserved data)
Memory Expansion
Micro-SD card slot: Compatible with Micro SDHC cards up to 32 GB (user accessible)
Scan Options
2D IMAGER (STANDARD RANGE) Megapixel sensor for extended range; White LED Illumination Optical Resolution: 1D codes: 3 mils; 2D codes: 6.6 mils Depth of Field (typical): 4.5 to 74 cm / 1.7 to 29.1 in (13 mil/EAN), depending on bar code density and type

1D IMAGER 2500 pixel sensor; Sharp green LED scan line Optical Resolution: 2.5 mils (linear codes) Depth of Field: 4.0 to 74 cm / 1.5 to 29.1 in (13 mil/EAN), depending on bar code density and type

EXTRA LONG RANGE IMAGER (2D XLR) Coming soon

SCAN WINDOW All scan engines feature Corning® Gorilla® Glass 3 scan window
Symbologies supported
Depending on Scan enging used:
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS, Postnet
STACKED CODES: GS1 Composite Codes UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1-128 Composite
Keyboards
Polycarbonate hard cap keyboards with backlight; 29-key numeric or 52-key alphanumeric with discrete navigation
Audio
Integrated microphone, high-volume speaker
Display
Reflective TFT daylight readable color display, 240 x 320 pixels in diagonal, 65K colors, backlight, touchscreen
Camera
N/A
I/O Ports
Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps
Ethernet or Modem: via single-slot dock (external module)
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco CCX v4 compliant
Bluetooth wireless technology v4 with BLE (Android models)
Bluetooth v2.1 + EDR (WEC7 models)
Battery
Removable battery pack with rechargeable Li-ion batteries; 3.7 V 5200 mAh (19.2 Watt hours)
Battery Life
N/A
Drop Specification
Withstands drops from 1.8 m / 6.0 ft onto concrete and 1500 random drops from 1.0 m / 3.3 ft according to IEC68-2-32 (Method 2)
Environmental Sealing
IP65
ESD Protection
N/A
Operating Environment
Operating: -20 to 50 ºC
Storage Environment
Storage: -30 to 70 ºC
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use. The Users Manual for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE: Complies to EU RoHS
LASER CLASSIFICATION VLD: Class 2 IEC/EN60825-10. Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice Number 50, dated June 24, 2007
LED CLASSIFICATION: Exempt Risk Group IEC/EN62471
External Dimensions (WxDxH)
Handheld: 22.5 x 8.8 x 5.5 cm, 6.4 x 4.0 cm at keyboard
Pistol grip: 22.5 x 8.8 x 16.8 cm
Weight
Handheld: 602.0 g
Pistol grip: 668.0 g
