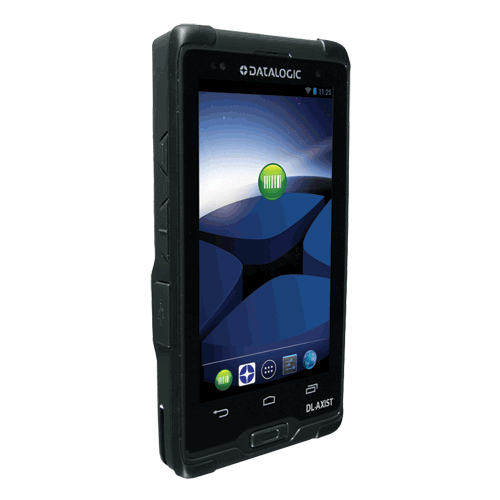

DATALOGIC DL-AXIST Wifi BT 2D Imager NFC And v4.1 Std Batt

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLAX-C2-BN0A
  • 944600001
  • DATALOGIC
  • DL-AXIST
    • Login to view pricing and availability

DL-Axist Full Touch PDA, 802.11 a/b/g/n CCXv4 +MIMO, Bluetooth v4 & NFC, 1GB RAM/8GB Flash, Multi-purpose 2D Imager w Green Spot, Android v4

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Android rugged Enterprise Assistant PDA
  • 5 inch HD multi-touch screen with Corning® Gorilla® Glass 3
  • 802.11 a/b/g/n with MIMO technology and Cisco CCX v4 certified
  • 3G/4G cellular for voice and data communication
  • Bluetooth® wireless technology v4.0 with BLE for beacons
  • Enterprise Class Assisted GPS for location-based applications
  • IP67 rating and 1.8 m drop resistance
NameSizeDownload
Datasheet104kb dlaxist_datasheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
ARM-7 32 bit 72 MHz
Operating Platform
Windows CE 6.0

Windows Embedded Handheld 6.5 with Mobile tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
Development Environment
Windows SDK, Datalogic SDK (C/C++, .Net, Java),
Wavelink Studio, MCL-Collection™,
Java Virtual Machine
Software Utilities
Applications: Pal™Application Library prelicensed
Memory
System Flash: 256 MB (including Backup directory for user data & programs permanent storage)
System RAM: 256 MB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards, user-accessible
Scan Options
HIGH PERFORMANCE LASER (HPL) Depth of Field: 1 to 83 cm / 1 to 32 in, depending on bar code and density; Scanning Rate: 104 +/- 12 scans/sec.; Good Read Feedback: Datalogic’s patented ‘Green Spot‘ technology



WDE ASPEDT IMAGER (2D) Depth of Field: 2 to 60 cm / 1 to 24 in, depending on bar code size and density; Minimum Resolution: Linear codes: 5 mils; 2D codes: 6.7 mils; Good Read Feedback: Datalogic’s patented ‘Green Spot’ technology

EXTRA LONG RANGE IMAGER (2D XLR) Depth of Field: 17 to 952 cm / 0.6 to 31.3 ft, depending on bar code size and density; Minimum Resolution: Linear codes: 5 mils; 2D codes: 1
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail

Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC
)
Stacked codes; Micro-PDF417, PDF417
Keyboards
27-key Numeric or 46-key QWERTY backlit keyboard standard; Side scan keys, push to talk and volume setting
Audio
Integrated microphone, high-volume speaker
Display
Reflective TFT daylight readable color display, 320 x 240 pixels (CE only) or 640 x 480 (WEHH only), 8.9 cm / 3.5 in diagonal, 65K colors, backlight, touch screen
Camera
Resolution: 3 megapixel; Illumination: User controllable flash; Lens: Auto focus
I/O Ports
Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
GLOBAL POSITION SYSTEM (GPS) Assisted GPS (A-GPS) with Skyhook‘s Core Engine hybrid ositioning system

LOCAL AREA NETWORK (LAN) Summit IEEE 802.11a/b/g Frequency range: Country dependent, typically 2.4 and 5.2 GHz CCX v4 Security

PERSONAL AREA NETWORK (PAN) Bluetooth® Wireless Technology IEEE 802.15; Class 2 with EDR

WIDE AREA NETWORK (WAN) UMTS HSDPA 850 1900 2100 - GSM/GPRS/ EDGE 850 900 1800 1900 MHz for voice and data
communication; SIM socket under the battery
Battery
Removable battery pack with rechargeable Li-ion high capacity battery included with all models;
3.7 V 5000 mAh (18.50 Watt hours);

2820 mAh (10.43 Watt hours) also available
Battery Life
Drop Specification
DROP RESISTANCE W
Environmental Sealing
IP64
ESD Protection
Operating Environment
Operating: -10 to 50 ºC
Storage Environment
Storage: -20 to 70 ºC
EMC/Safety Standards
External Dimensions (WxDxH)
15.7 x 8.1 x 4.2 cm / 6.2 x 3.2 x 1.7 in
Weight
440.0 g / 15.5 oz including high capacity batteryz
