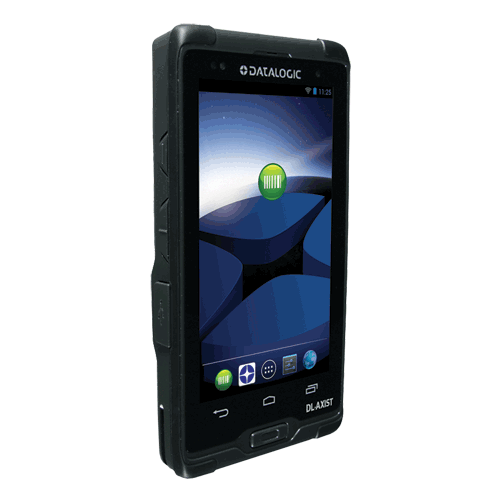

DATALOGIC DL-Axist 5" Touch Enterprise Assistant PDA

(Product may vary from image. Rely only on description for purchasing decisions.)

A rugged Android PDA with a brilliant full touch 5 inch display. Its industrial robustness and Gorilla® Glass 3 touchscreen allows this PDA to survive the toughest environments. A rubber boot option is also available to ensure an additional level of protection. The DL-Axist PDA is equipped with an advanced 2D imager providing quick and easy data capture from high density codes at standard distances. Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback is standard and a 5 MP auto focus camera with LED flash provides easy documentation with photos

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Android rugged Enterprise Assistant PDA
  • 5 inch HD multi-touch screen with Corning® Gorilla® Glass 3
  • 802.11 a/b/g/n with MIMO technology and Cisco CCX v4 certified
  • 3G/4G cellular for voice and data communication
  • Bluetooth® wireless technology v4.0 with BLE for beacons
  • Enterprise Class Assisted GPS for location-based applications
  • IP67 rating and 1.8 m drop resistance
NameSizeDownload
Datasheet104kb dlaxist_datasheet.pdf

Products available to purchase

 SKUVendorName
DLAXE-C2-BN0A DATALOGICDL-AXIST Wifi BT 2D Imager NFC And v4.1 Ex Batt
DLAX-C2-BN0A DATALOGICDL-AXIST Wifi BT 2D Imager NFC And v4.1 Std Batt
DLAX-QBCHRG DATALOGIC4 Slot Battery Charger for DL-AXIST
DLAX-EXBCOVER DATALOGICExt Battery Cover for DL-AXIST
DLAX-EXBATT DATALOGICExtended Capacity Battery for DL-AXIST
DLAX-RBOOT DATALOGICRubber Protection Boot for DL-AXIST
DLAX-DCBASE DATALOGICSingle Slot Dock for DL-AXIST
DLAX-STBATT DATALOGICStandard Battery for the DL-AXIST

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
ARM-7 32 bit 72 MHz
Operating Platform
Windows CE 6.0

Windows Embedded Handheld 6.5 with Mobile tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
Development Environment
Windows SDK, Datalogic SDK (C/C++, .Net, Java),
Wavelink Studio, MCL-Collection™,
Java Virtual Machine
Software Utilities
Applications: Pal™Application Library prelicensed
Memory
System Flash: 256 MB (including Backup directory for user data & programs permanent storage)
System RAM: 256 MB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards, user-accessible
Scan Options
HIGH PERFORMANCE LASER (HPL) Depth of Field: 1 to 83 cm / 1 to 32 in, depending on bar code and density; Scanning Rate: 104 +/- 12 scans/sec.; Good Read Feedback: Datalogic’s patented ‘Green Spot‘ technology



WDE ASPEDT IMAGER (2D) Depth of Field: 2 to 60 cm / 1 to 24 in, depending on bar code size and density; Minimum Resolution: Linear codes: 5 mils; 2D codes: 6.7 mils; Good Read Feedback: Datalogic’s patented ‘Green Spot’ technology

EXTRA LONG RANGE IMAGER (2D XLR) Depth of Field: 17 to 952 cm / 0.6 to 31.3 ft, depending on bar code size and density; Minimum Resolution: Linear codes: 5 mils; 2D codes: 1
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail

Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC
)
Stacked codes; Micro-PDF417, PDF417
Keyboards
27-key Numeric or 46-key QWERTY backlit keyboard standard; Side scan keys, push to talk and volume setting
Audio
Integrated microphone, high-volume speaker
Display
Reflective TFT daylight readable color display, 320 x 240 pixels (CE only) or 640 x 480 (WEHH only), 8.9 cm / 3.5 in diagonal, 65K colors, backlight, touch screen
Camera
Resolution: 3 megapixel; Illumination: User controllable flash; Lens: Auto focus
I/O Ports
Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
GLOBAL POSITION SYSTEM (GPS) Assisted GPS (A-GPS) with Skyhook‘s Core Engine hybrid ositioning system

LOCAL AREA NETWORK (LAN) Summit IEEE 802.11a/b/g Frequency range: Country dependent, typically 2.4 and 5.2 GHz CCX v4 Security

PERSONAL AREA NETWORK (PAN) Bluetooth® Wireless Technology IEEE 802.15; Class 2 with EDR

WIDE AREA NETWORK (WAN) UMTS HSDPA 850 1900 2100 - GSM/GPRS/ EDGE 850 900 1800 1900 MHz for voice and data
communication; SIM socket under the battery
Battery
Removable battery pack with rechargeable Li-ion high capacity battery included with all models;
3.7 V 5000 mAh (18.50 Watt hours);

2820 mAh (10.43 Watt hours) also available
Battery Life
Drop Specification
DROP RESISTANCE W
Environmental Sealing
IP64
ESD Protection
Operating Environment
Operating: -10 to 50 ºC
Storage Environment
Storage: -20 to 70 ºC
EMC/Safety Standards
External Dimensions (WxDxH)
15.7 x 8.1 x 4.2 cm / 6.2 x 3.2 x 1.7 in
Weight
440.0 g / 15.5 oz including high capacity batteryz
