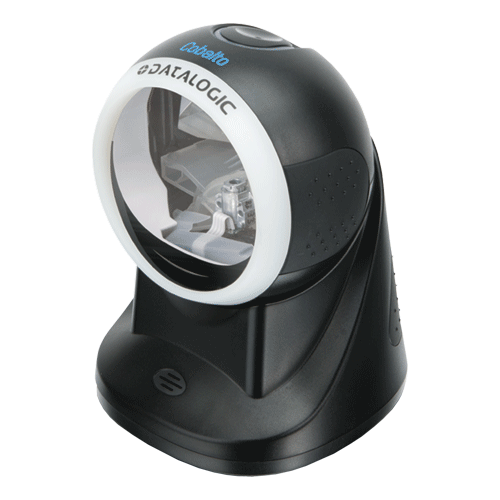

DATALOGIC Cobalto® CO-5300 Series Omin-directional Laser Scanner ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The new Cobalto™ CO5300 omnidirectional presentation laser scanner guarantees an excellent value for customers looking for outstanding performance in a stylish and full-featured product. An elegant blue ‘Ring of Light’ encircles the reading window, which turns a bright green to visually confirm a good read. Additionally, a high quality polyphonic speaker can be configured to provide the preferred sound or ‘jingle’ for audio confirmations of a good read. The omnidirectional reading pattern of 20 lines and 1,500 scans per second provides the market’s fastest 1D decoding rate and motion tolerance, key features in applications that require immediate and intuitive reading.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Laser Presentation Scanner
  • ‘Ring of Light’ visual good-read confirmation
  • Configurable polyphonic speaker for customized audio good-read confirmation
  • Top of the range speed and motion tolerance on 1D bar codes
  • Adjustable scan head with 30° tilting ability for larger items
  • Ergonomic rubber finishing grips are ideal for handheld operations
  • Capacitive trigger for single line targeting applications such as Price Look-Up (PLU) lists
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Brochure84kb dlcobalto5300_brochure.pdf
Product Reference Guide12,278kb Cobalto_prg.pdf
Windows Utility Software43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
AD-DL5VR30N DATALOGICPlug Pack 5V 3.0A for QM series
CAB-DL408 DATALOGICRS232 Coiled Cable DB9F with Power Inlet & pin 9
CAB-DLCOBUSB DATALOGICStraight USB Cable for Cobalto HD3130 QM Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Omni-directional Laser
Light Source
650nm VLD
Scan Pattern
20 Scan Lines
Scan Rate
Up to 1500 Scans/sec
Motion Tolerance
> 4 m / sec. on 100% EAN13 @ 10 cm from nose
Contrast Ratio
35% minimum reflective difference
Resolution
0.130 mm / 5 mils
Depth of field
Code 39 5 mils: 0.5 to 5.5 cm
EAN/UPCA 13 mils: 0 to 27.5 cm
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
Tilt Angle
N/A
Pitch Angle
N/A
Skew Angle
N/A
Ambient Light Immunity
Fluorescent, incandescent, mercury vapor and sodium vapor: 450 ft-candles (4,844 lux)
Sunlight: 8,000 ft-candles (86,111 lux)
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper
Operating Modes
Presentation Auto-trigger, Manual Trigger
Communication Type
Corded
Interfaces
RS232, USB, OEM IBM USB, Keyboard Wedge
Supply Voltage
5 VDC +/-5%
Power Consumption
Max. 500 mA, Typical less then 430 mA @ 5 VDC
Sleep mode: less then 2.5 mA
Drop Specification
Withstands repeated drops from 1.2 m onto concrete
Environmental Sealing
IP30
ESD Protection
Functional after 16kV Air discharge
Operating Environment
0 to 40 °C
RH 5% ~ 90% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 90% non condensing
EMC/Safety Standards
Class 1 IEC 60825-1:2007
CE, C-Tick, FCC
External Dimensions (WxDxH)
Scanner: 99 x 110 x 150mm
Weight
440g
