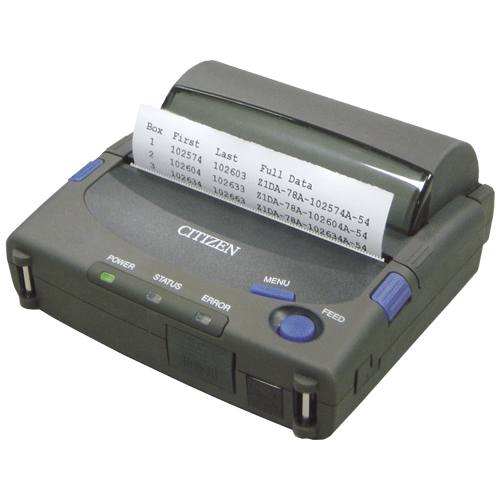

CITIZEN PD-24 112mm Thermal Portable Printer

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PD24BT
  • PD24BE
  • CITIZEN
  • PD24
    • Login to view pricing and availability

CITIZEN PD-24 Direct Thermal Mobile112 mm Printer /w Bluetooth Interface, IRDA, USB & RS232 interface

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Clamshell Design
  • 112mm Paper width
  • Bluetooth, IRDA, RS232 & USB interface
  • Small footprint and light weight
  • Li-ion rechargeable Battery
  • Low battery monitoring
  • Internal Charging Circuit
  • Auto power off function
NameSizeDownload
Brochure236kb pd24_brochure.pdf
Windows Driver294kb CIT_PrinterDriverPD24.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
104mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 50 mm/Sec
Number of Columns
10CPI: 46, 12CPI: 55, 15CPI: 69, 17CPI: 79, 20CPI: 92
Character Size
10CPI: 18 X 24, 12CPI: 15 X 24, 15CPI: 12 X 24, 17CPI: 10 X 24, 20CPI: 9 X 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
UPC/A/E, JAN (EAN) 13/8 COLUMNS, ITF, CODE 39, CODA128, CODEBAR, CODE 93, QR CODE, PDF417
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
112mm
Paper Roll Diameter
Max Ø 50 mm
Paper Thickness
35-65um
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power, Status & error LED
Power, Paper feed & Menu Button
VuePrint Menu System
Emulation
ESC/P, Citizen original command, ESC/POS (Supports only barcode commands)
Memory
Buffer size 64K bytes
Sensors
Paper End Sensor, Black mark, Low battery, Battery/Head/Motor temp, Cover open.
Interfaces
IrDA 1.2, Bluetooth ver 1.1, Serial (RS232C compliant), USB
Driver available
Windows Mobile, Win CE 4.2/5.0
Software Utilities
NA
Battery
Rechargeable Li-ion 7.2V 1800 mAh
Print Capacity 25,000 lines (at ASCII Pattern, 0 density /w fully charged battery)
MSR
NA
External Dimensions (WxDxH)
147 x 140 x 63 mm
Weight
Including Battery Approx. 540 g
Typical weight with Paper roll 740 g
Operating Environment
5 - 40°C
30-90% RH None condensing
Storage Environment
-25 -60°C
30-90% RH None condensing
Environmental Sealing
NA
Mechanical Shock
NA
Reliability
Print Head Life: 30 Mill pulses (at 12.5% Coverage, density 0)
EMC/Safety Standards
UL60950 (3RD), CAN/CSA-C22.2 no. 60950 (3rd), FCC Part 15 subpart B (class B) EN60950-1/55022 (class b)/55024/61000-3-2/61000-3-3
  • select

Related Products

 SKUVendorVendor SKUTypeProduct Name
AD-PD24 CITIZEN PD79933-00F Accessory CITIZEN Plug Pack for PD24
PD56503-02F CITIZEN PD56503-02F Part CITIZEN AC Adaptor Cover for PD24
PD69701-00F CITIZEN PD69701-00F Part CITIZEN Battery Connector for PD24
PD56267-03F CITIZEN PD56267-03F Part CITIZEN Battery Cover for PD24
PD56274-02F CITIZEN PD56274-02F Part CITIZEN IRDA Cover PD24
PD56272-02F CITIZEN PD56272-02F Part CITIZEN Paper Holder L PD24
PD56273-02F CITIZEN PD56273-02F Part CITIZEN Paper Holder R PD24
PD23601-00F CITIZEN PD23601-00F Part CITIZEN Paper Holder Spring for PD24
PD28701-00F CITIZEN PD28701-00F Part CITIZEN Platen Roll Ass PD24
PD56269-00F CITIZEN PD56269-00F Part CITIZEN Power Switch for PD24
