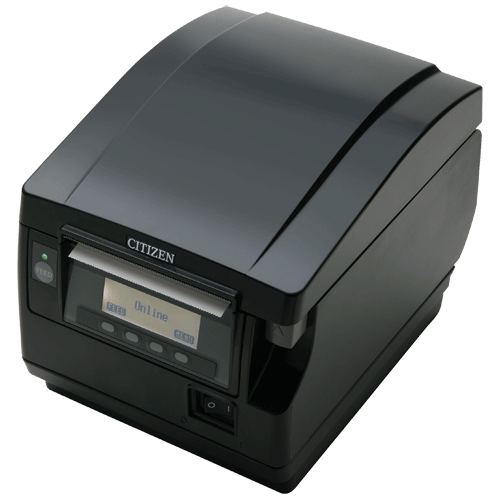

CITIZEN CT-S851II Thermal POS Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

High performance, front-exit POS printing.The first in a new line of revolutionary "Intelligent" printers, featuring the industry's first POS printer with a back lit graphic LCD display that communicates with you.Designed for hospitality applications, with a spill-proof cover, the CT-S851III is the only front paper exit POS printer capable of printing at high speeds of 300mm/sec. In common with the top exit CT-S801III, the CT-S851III has an advanced customisable LCD, ensuring quick setup, total control of all print functions and full error checking.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Speed Direct Thermal Printer
  • Paper exit from the front for better splash proofing
  • A truly, unique printer: the industry's first POS printer with a backlit graphic LCD display and Colour LED which communicates with you.
  • One of the world's fastest, most reliable, easiest to configure and customize POS printer.
  • Up to 300mm/sec providing the fastest printing results for customers.
  • Longer cutter life delivers lower maintenance costs
  • Greater reliability delivers longer life & lower maintenance costs
  • Wider paper width allows printing of additional information & larger fonts
  • USB standard meets market standardization requirements
  • 2D/PDF417 bar code support
  • Built in buzzer provides audible alert without adding extra cost devices
  • Built in power supply eliminates unsightly "brick" and frees up space
  • Printer drivers included are: Windows XP (32 and 64 bit), Windows Vista (32 and 64 bit), Java POS, OPOS and CUPS.
  • Available in Black and White
NameSizeDownload
MacOSX Driver418kb CIT_ctzpos-cups-1.2.0-0.dmg

Products available to purchase

 SKUVendorName
CTS851IIBL CITIZENCTS-851II Thermal POS Printer no interface Black
CIF801E CITIZENEthernet Interface for CTS800 CTS600 Series
CIF801P CITIZENParallel Interface Board for CTS800 CTS600 Series
CIF801PU CITIZENPowered USB Interface Board (No Cable) for CTS801
CIF801R CITIZENRS232 Interface Board for CTS800 CTS600 Series
CIF801U CITIZENUSB Interface Board for CTS800 CTS600 Series
CWM300 CITIZENWallmount Bracket for the CDS5xx CTS3xx CTS801 601
CIF801WF CITIZENWifi Interface Card for CTS8xx 6xx CLS400
PFKZ200 POSIFLEXPosiflex External Kitchen Printer Buzzer RJ12
PFWLAN-U POSIFLEXUSB Wi-Fi Dongle 2.4 GHz BGN
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
SER-IFCHG GOODSONInterface Fitting Charge

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
CBM1000CITIZEN CBM-1000 Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot print method
Printing Width
80 mm / 640 dots, 72 mm / 576 dots, 64 mm / 512 dots, 54.5 mm / 436 dots, 54 mm / 432 dots, 52.5 mm / dots, 48 mm / 384 dots, 45 mm / 360 dots, 48.75 mm / 390 dots, 68.25 mm / 546 dots
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
GEN 2 Model is 300 mm/sec, GEN 3 Model is 500mm/sec,2400 dots lines / sec. (fastest, print density 100%)
Number of Columns
83 mm Paper: Font A - 53 columns, Font B - 71 columns, Font C - 80 columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
60 mm Paper: Font A - 36 columns, Font B - 48 columns, Font C - 54 columns
58 mm Paper: Font A - 35 columns, Font B - 46 columns, Font C - 52 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×2.13 mm (9 x 17 Dots)
Font C: 1.00 x 2.00 mm (8 x 16 Dots)
Character Table/Code Pages
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Japanese Kanji characters
IBM extended characters
simplified or traditional Chinese, Vietnamese Code Page.Thai Font 1pass printing.
Bar-code Type
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR (NW-7), CODE 93, PDF417, QR Code
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
83+0/-1 mm, 80+0/-1 mm, 60+0/-1 mm, 58 mm+0/-1
Paper Roll Diameter
Max Ø 80.0mm
Paper Thickness
0.065 - 0.075mm (core tube diameter: inner 12 mm/outer 18mm)
0.075 - 0.150mm (core tube diameter: inner 25.4 mm/outer 32 mm)
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
LED: Green/Orange/Red
LCD Display
Emulation
ESC/POS
Optional:
iDP3540 Compatible
CBM710 Compatible
Print Buffer
4K bytes / 45 bytes
NV Memory
384 Kb (capable of storing user-defined characters and logos)
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
RJ-45, 8-pin connector
Interfaces
Standard without interface. Choice off:
Serial (RS-232C compliant), Parallel (IEEE1284 compliant), USB,
USB with hub, Ethernet, powered USB
Bluetooth model
Driver available
WIN XP, WIN 7,WIN8, WIN10, OPOS, JAVAPOS, POS for .NET, CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
AC Adapter 36AD
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.1 A
ENERGY STAR® qualified printer
Power Consumption
Approx. 45 W (normal printing), 3W (standby)
External Dimensions (WxDxH)
CT-S601 (Built-in power supply type): 145 × 192 × 148 mm
CT-S601N (No power Supply): 145 × 192 × 120 mm
Weight
CT-S8x1 (Built-in power supply type): 2.0kg
CT-S8x1N (No Power Supply): 1.6kg
Operating Environment
5 to 45 °C, 10 to 90 % RH (no condensation)
Storage Environment
-20 to 60 °C, 10 to 90 % RH (no condensation)
Reliability
Print head life: 150 km, 200 million pulses (at normal temperature and humidity using recommended paper)
Auto cutter life: 2 million cuts (at normal temperature and humidity using recommended paper)
EMC/Safety Standards
UL, C-UL, FCC class A, TÜV-Bauart, CE marking, CCC, C-tick
