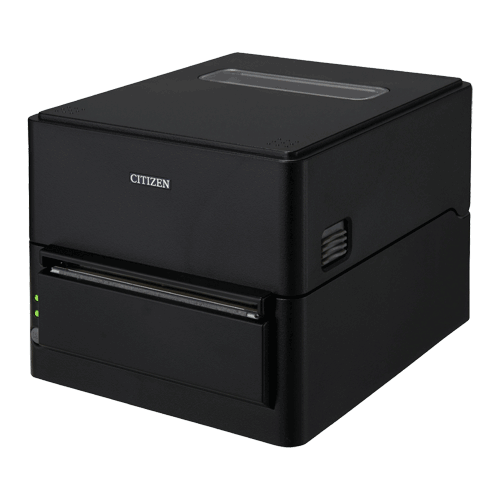

CITIZEN CT-S4500 Thermal 4 Inch POS Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

Cost-effective 4-inch POS printing with precise document scaling. A compact and functional printer with stylish design and market-leading print speed that’s been meticulously designed to serve across multiple applications. With compression driver as standard, the CT-S4500 delivers outstanding economy, printing receipts and labels up to 4-inches wide faster than any other machine in the current POS market. The new CT-S4500 will scale down large A4 multi-column documents, for those who need more columns per line, into perfect 4-inch prints. Superior performance and reliability with dynamic functionality

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal 4" POS Printer
  • Front exit, prevents damage from moisture or foreign objects
  • Paper width 112 mm
  • Easy paper loading
  • Fast print out of receipts,up to 200mm per seconds
  • Paper thickness up to 0.150mm, good for ticketing
  • Integrated power supply enables clean work station
  • Mobile-POS ready
  • A4 printer replacement, compression driver scales down documents
  • Barcode printing
  • Cash drawer connection
  • Available in black or white(Special order)
  • Media sensor: Black mark, Paper near end & Label gap sensor
NameSizeDownload
Brochure468kb ct-s4500-en datasheet.pdf
User Manual6,128kb CT-S4500_ume.pdf

Products available to purchase

 SKUVendorName
CTS4500UBL CITIZENCTS-4500 4" Thermal Printer USB interface Black
CTS4500UEBL CITIZENCTS-4500 4" Thermal Printer with USB & Ethernet IF
CIF751E CITIZENEthernet Interface CTS751 CTS4500
CIF751R CITIZENRS232 Interface CTS751 CTS4500
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
T11280B24 GOODSONThermal 112 x80 Paper rolls 24 per box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot printing
Printing Width
104mm
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 200 mm/sec
Number of Columns
On 112mm paper up to 69 digits (12 x 24 font A)
On 112mm paper up to 104 digits (8 x 16 font C)
On 112mm paper up to 92 digits (9 x 17 font B)
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.00 mm (8 x 16 Dots)
Character Table/Code Pages
Alphanumeric
International characters
Kana
Kanji (JIS level 1, level 2)
Katakana
Thai code18
WPC1252
437, 850, 852, 857, 858, 860, 863, 864, 865, 866
15 codepages, 17 country tables
Bar-code Type
UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8(JAN-8), Codabar, ITF, CODE39, CODE128, CODABAR(NW-7), CODE93, PDF 417, QR Code, GS1-Databar, Composit Symb, Code3of9
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
58 - 112 mm (min to max)
Paper Roll Diameter
Paper roll: Max Ø 102.0 mm
Paper Thickness
65 to 150 µm (min to Max)
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light & Error Light
Buzzer
Emulation
ESC/POS
Print Buffer
4K bytes / 45 bytes
NV Memory
384 Kb (capable of storing user-defined characters and logos)
Sensors
Black mark sensor (Photo interrupter)
Paper near end Sensor
Label gap sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB on-board
Optional:
Bluetooth with Apple™ MFi compatibility
Serial (RS-232C compliant)
Compact Wireless LAN
Ethernet
USB with hub
Driver available
Windows Drivers, OPOS Drivers, JAVAPOS Driver, POS for .net Driver, CUPS Driver for Linux/Mac OSX
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.0 A
Power Consumption
Approx. 70 W (normal printing), 3W (standby)
External Dimensions (WxDxH)
170 x 216 x 151mm
Weight
2.5Kg
Operating Environment
5 to 40°C, 35 to 90% RH (No condensation)
Storage Environment
-20 to 60°C, 10 to 90% RH (No condensation)
Reliability
Print head life: 100 km, 1 × 108 pulses (At normal temperature/humidity with recommended paper used)
Auto cutter life:1 million cuts (At normal temperature/humidity with recommended paper used)
EMC/Safety Standards
UL, C-UL, FCC Class A, TÜV-GS, CE Marking, C-Tick
