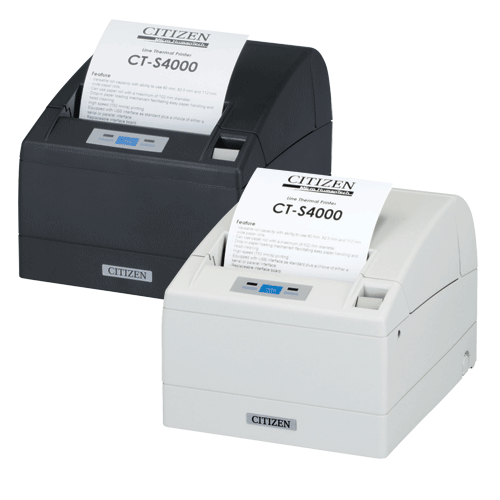

CITIZEN CT-S4000 Thermal POS Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The CITIZEN CTS-4000 combines wide format printing with all the main features of the new CTS range. Fitted with dual interface. Build in power supply, which can be taken of to lower overall height of the printer.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Drop-in design for easy paper loading
  • Expanded 102mm paper roll capability for fewer roll changes
  • High speed up to 150mm/sec
  • Can be accomodate three different paper widths (112, 82.5, 80mm)
  • Two color printing
  • Built-in power supply
  • Unique DMA (Direct Memory Access) allows faster text and graphics downloads and increase productivity
  • Can be positioned horizontally, vertically or wall mounted
  • 2D barcode (QR-code and PDF417) support allows wider applications
  • Built in buzzer provides audible alert without adding extra cost devices
  • Cash drawer kick-out extrenal device port supports 2 cash drawers
  • USB interface standard on all units, Optional with Serial or Parallel or Ethernet
NameSizeDownload
Brochure171kb cts4000_brochure_cat.pdf
User Manual439kb CT-S4000ume.pdf
English model drivers74,762kb CIT_360_all_driver_files.zip
POS Printer utility2,133kb CIT_POSUtilSetup211E.exe
Virtual COM Driver4,244kb CIT_V-COM-E110616.zip
MacOSX Driver418kb CIT_ctzpos-cups-1.2.0-0.dmg
Command Reference Guide5,312kb CTS_PMU_CTP_CommandReference.pdf

Products available to purchase

 SKUVendorName
ZZOLDCIF2000E CITIZENEthernet IF Board CTS2000 CTS4000 PPU700II
CIF2000R CITIZENSerial IF Board CTS2000 CTS4000 PPU700II
CWM4000 CITIZENWall Mount Bracket for the CTS4000
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T11280B24 GOODSONThermal 112 x80 Paper rolls 24 per box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot printing
2 Colour when special Paper is used
Printing Width
112mm/832 dots, 82.5mm/660 dots, 80mm/576 dots
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 150 mm/sec, 1200 dots lines / sec. (fastest, print density 100%)
Label Version Max. 132 mm/sec
Number of Columns
112 mm Paper: Font A - 69 columns, Font B - 92 columns, Font C - 104 columns
82.5 mm Paper: Font A - 55 columns, Font B - 73 columns, Font C - 82 columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.00 mm (8 x 16 Dots)
Character Table/Code Pages
Alphanumeric, International, PC437/850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Bar-code Type
UPC-A/E, JAN-13/8 columns, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
112 +/-1 mm, 82.5mm, 80 +/-1 mm
Paper Roll Diameter
Paper roll: Max Ø 102.0 mm
Paper Thickness
65 to 75µm (core tube diameter: inner 12 mm/outer 18mm)
75 to 150µm (core tube diameter: inner 25.4 mm/outer 32mm)
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light & Error Light
Buzzer
Emulation
ESC/POS
Optional:
iDP3540 Compatible
CBM710 Compatible
Star Emulation Compatible
Print Buffer
4K bytes / 45 bytes
NV Memory
384 Kb (capable of storing user-defined characters and logos)
Sensors
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB on-board with ether RS232C, Parallel or Ethernet Interface
Driver available
Windows2000/XP/Vista/7/8, OPOS Drivers, JAVAPOS Driver, POS for .net Driver, CUPS Driver for Linux/Mac OSX
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.0 A
Power Consumption
Approx. 70 W (normal printing), 3W (standby)
External Dimensions (WxDxH)
177 × 213 × 147 mm
Weight
With Built in Power supply 2.3 Kg
Seperate Power Adaptor typ: 2.0 Kg
Operating Environment
5 to 45°C, 10 to 90% RH (No condensation)
Storage Environment
-20 to 60°C, 10 to 90% RH (No condensation)
Reliability
Print head life: 100 km, 1 × 108 pulses (At normal temperature/humidity with recommended paper used)
Auto cutter life:1 million cuts (At normal temperature/humidity with recommended paper used)
EMC/Safety Standards
UL, C-UL, FCC Class A, TÜV-GS, CE Marking, C-Tick
