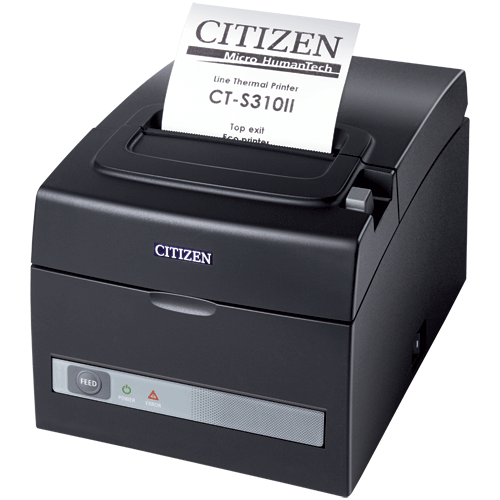

CITIZEN CT-S310 II Thermal POS Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Citizen CT-S310 II is a low-cost thermal POS printer, which fits perfectly in a wide variety of POS applications. It combines high-speed printing with a compact footprint. Environmentally friendly: From production and packaging to utilisation and recycling the CT-S310 II fulfils today‘s demand for green IT products. The integrated Energy Star® power supply is one of the most efficient at managing power consumption.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Low cost Thermal Printing
  • 160mm/sec. printing speed
  • Drop-in Paper Loading
  • Easy Maintenance for cutter, Print head and Platen
  • Built-in USB & RS232 Serial Interface
  • NV Memory for Bit map Data Storage
  • Barcode Printing including GS1 DataBar and 2D Barcode
  • LLP (Long Life Print) function to be able to extend the printer life
  • Paper save function: Top Margin /Line Spacing / Font Compression
  • Internal Energy Star® Power Supply
  • Low power consumption: Power Save Mode / USB Power Save Mode
  • Easy customization with software utility
  • Printer can be positioned Horizontally or Vertically
  • Available in Black & White (white special order only MOQ applies)
NameSizeDownload
Brochure470kb cts310II_brochure.pdf
User Manual3,938kb cts310II_um.pdf
Command Reference Guide5,312kb CTS_PMU_CTP_CommandReference.pdf
English model drivers74,762kb CIT_360_all_driver_files.zip
POS Printer utility2,133kb CIT_POSUtilSetup211E.exe
Virtual COM Driver4,244kb CIT_V-COM-E110616.zip
MacOSX Driver418kb CIT_ctzpos-cups-1.2.0-0.dmg

Products available to purchase

 SKUVendorName
CTS310IIUEBL CITIZENCTS-310II 3" Thermal Printer USB Ethernet interface Blk
CTS310IIURBL CITIZENCTS-310II 3" Thermal Printer USB RS232 interface Blk
CWM300 CITIZENWallmount Bracket for the CDS5xx CTS3xx CTS801 601
PFKZ200 POSIFLEXPrinter Kitchen Buzzer with RJ12 Connector
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-ETH02 GOODSONPatchlead RJ45 Ethernet 2m Gry
CAB-PR9F9F310II GOODSONSerial Printer Cable for the CTS310II
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
TMT82TM-T82 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm/576 Dots
58mm Paper: 48mm/384 Dots
Dot Pitch
8 x 8 dots/mm (203 x 203 dpi)
Printing Speed (Max.)
160 mm/Sec
Number of Columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
58 mm Paper: Font A - 35/32 columns, Font B - 46/42 columns, Font C - 52/48 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.0 mm (8 x 16 Dots)
Character Table/Code Pages
Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866, Katakana, WPC1252, Thai code 18
Bar-code Type
UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, GS1 DataBar, PDF417, QR Code
Line Spacing
4.25mm (1/6 inch), adjustable by a user by command
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
65 to 75µm (core tube diameter: inner 12 mm/outer 18mm)
75 to 85µ:m (core tube diameter: inner 25.4 mm/outer 32 mm)
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light & Error Light
Buzzer
Emulation
ESC/POS
Print Buffer
4KBytes/45 bytes
NV Memory
4KBytes/45 bytes
Sensors
Paper End Sensor , Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
Built in USB & RS232 only
Driver available
Windows 2000/NT/XP/VISTA/7 32 bit & 64Bit/OPOS/JavaPOS/ POS for .net/CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Input: AC100 ~240V 47/63Hz Energy Star® approved
Power Consumption
Printing 40 W, Sleep 0,7 W, Standby 0,15 W
External Dimensions (WxDxH)
140 x 195 x 132 mm
Weight
Approx. 1.9 Kg
Operating Environment
5-45°C, 10-90% RH
Storage Environment
-20-60°C, 10-90% RH
Reliability
Head: 300,000,000 pulses or 150 Km (200 Km or more with LLP function)
Auto Cutter: 2,000,000 cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
