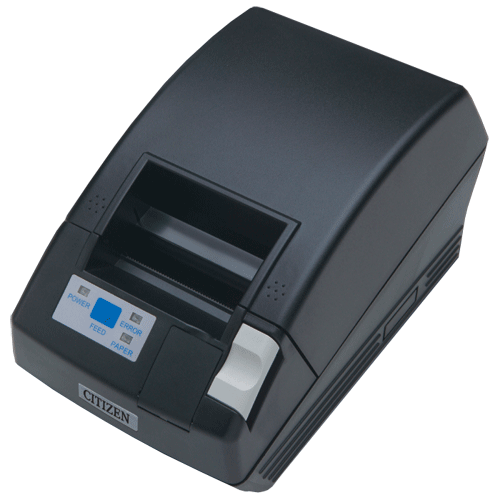

CITIZEN CT-S281 Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Citizen CT-S281 low-cost thermal mini printer fits perfectly in a wide variety of logging applications. Based on the CT-S280 It combines high-speed, two-colour printing with a compact footprint and an Auto Cutter.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Speed (80mm/sec) Direct Thermal Printing
  • Drop in Paper loading
  • Auto Cutter
  • Two Colour Printing (with Special Paper)
  • Barcode Printing
  • Compatibility (ESC/POS)
  • Easy to use configuration software
  • Low cost Thermal Printing
  • User-changeable interface
  • Available in Ivory & Black
  • Can also be hung upright
NameSizeDownload
Brochure459kb cts280_281_brochure.pdf
Command Reference Guide5,312kb CTS_PMU_CTP_CommandReference.pdf
English model drivers74,762kb CIT_360_all_driver_files.zip
POS Printer utility2,133kb CIT_POSUtilSetup211E.exe
Virtual COM Driver4,244kb CIT_V-COM-E110616.zip
MacOSX Driver418kb CIT_ctzpos-cups-1.2.0-0.dmg

Products available to purchase

 SKUVendorName
CTS281UBL CITIZENCT-S281U 2" Thermal Printer with AutoCut USB interface Blk
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot print method
Printing Width
48mm / 384 dots
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 80mm/s. 60mm/s in label printing
Number of Columns
32 columns - Font A: 12 x 24 dots horizontal and vertical
42 columns - Font B: 9 x 24 dots
48 columns - Font C: 8 x 16 dots
Character Size
Font A:1.50 ×3.00 mm
Font B:1.13 × 3.00 mm
Font C:1.00 x 2.00 mm
Character Table/Code Pages
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Bar-code Type
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR , CODE 93, PDF417, QR Code
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
58+0/-1 mm,
Paper Roll Diameter
Max Ø 83.0mm. Label paper 80.0mm
Paper Thickness
0.06 to 0.1mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine,Full or Partial cut
Indicators/Controls
Power LED. Feed Button,Error LED, Paper Led, Power switch
Emulation
Citizen
Print Buffer
4K bytes / 45 bytes
NV Memory
256 Kb (capable of storing user-defined characters and logos)
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
NA
External Device Port
N/A
Interfaces
Serial (RS-232C compliant), USB,
Driver available
WIN 7, CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC8.5V, 2.5 A
Power Consumption
Approx. 18 W (normal printing), 2W (standby)
External Dimensions (WxDxH)
106W x 180D x 105H mm
Weight
630g approx.AC adaptor 240g approx.
Operating Environment
5 to 40 °C, 10 to 85 % RH (no condensation)
Storage Environment
-20 to 60 °C, 10 to 90 % RH (no condensation)
Reliability
Print head life: 50km, 100 million pulses
Auto cutter life: 1 million cuts (at normal temperature and humidity using recommended paper)
EMC/Safety Standards
UL, C-UL, FCC class B, TÜV, CE marking, C-tick
