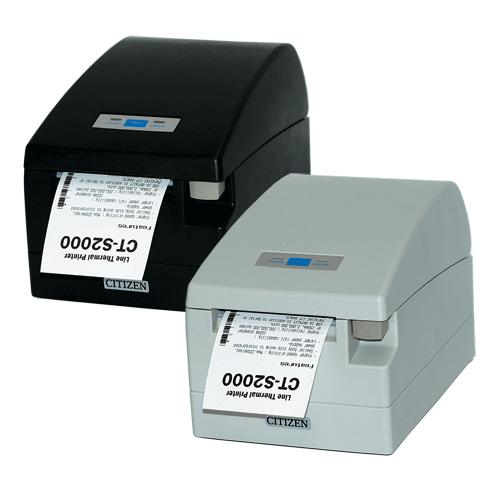

CITIZEN CT-S2000 Thermal POS Printer Series **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

With its unique high-speed DMA (Direct Memory Access) the CT-S2000 is a two-colour, thermal printer capable of “real-world” speeds of up to 220 mm/second and offers variety of advanced printer features including: Spill-Shield™ design to prevent damage from moisture or foreign objects to the internal mechanism, large capacity (102mm) drop-in paper loading, Quick-Clear™ technology for one-touch clearing of cutter jams.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 220 mm/sec high-speed printing
  • 82.5 / 80 / 60 / 58mm selectable paper width
  • Front paper exit
  • Splash proof design (Conform to IPX1)
  • One touch cover open and Easy paper loading
  • F102 mm paper roll Capacity, a time saving at the check out.
  • Optional interface cards
  • USB is default in addition to Serial or Parallel interface board
  • Built-in AC adapter
  • Label/Black mark function (option)
  • Cash drawer kick-out
  • Bitmap Data Registration (NV memory)
  • Barcode printing
  • ESC/POS compatibility
  • Page mode
  • Two colour printing
  • Smoothing font
  • Easy customization by software
  • Availability in white, black
NameSizeDownload
Datasheet161kb cts2000_catalog_datasheet.pdf
User Manual433kb CT-S2000ume.pdf
Command Reference Guide5,312kb CTS_PMU_CTP_CommandReference.pdf
English model drivers74,762kb CIT_360_all_driver_files.zip
Virtual COM Driver4,244kb CIT_V-COM-E110616.zip
MacOSX Driver418kb CIT_ctzpos-cups-1.2.0-0.dmg

Products available to purchase

 SKUVendorName
ZZOLDCIF2000E CITIZENEthernet IF Board CTS2000 CTS4000 PPU700II
CIF2000R CITIZENSerial IF Board CTS2000 CTS4000 PPU700II
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-ETH02 GOODSONPatchlead RJ45 Ethernet 2m Gry
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot printing
2 Colour when special Paper is used
Printing Width
80mm/640 dots, 72mm/576 dots, 54.5mm/436 dots, 54mm/432 dots
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
220mm/sec. (fastest, print density 100%), 1760 dot-lines/sec.
Number of Columns
82.5 mm Paper: Font A - 53 columns, Font B - 71 columns, Font C - 80 columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
60 mm Paper: Font A - 36 columns, Font B - 48 columns, Font C - 54 columns
58 mm Paper: Font A - 35 columns, Font B - 46 columns, Font C - 52 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.00 mm (8 x 16 Dots)
Character Table/Code Pages
Alphanumeric, International, PC437/850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Bar-code Type
UPC-A/E, JAN-13/8 columns, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Thermal Labels on a roll
Paper Width
83 +/-1 mm, 80 +/-1 mm, 60 +/-1 mm, 58 mm +/-1 mm
Label Type:
Liner: 58 to 82.5 mm +/-0.5 mm
Label: 54 to 78.5 +/-0.5 mm
Paper Roll Diameter
Paper roll: Max Ø 102.0 mm
Label:
Label width: 54 to 78 mm, Label length: 25 to 300 mm
Diameter: Ø 102 mm or less
Paper Thickness
Paper:
65 to 75µm (core tube diameter: inner 12 mm/outer 18mm)
75 to 85µm (core tube diameter: inner 25.4 mm/outer 32mm)
Label paper:
65 to 85µm, Liner: 60µm or less
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light & Error Light
Buzzer
Emulation
ESC/POS
Optional:
iDP3540 Compatible
CBM710 Compatible
Star Emulation Compatible
Print Buffer
4K bytes / 45 bytes
NV Memory
384 Kb (capable of storing user-defined characters and logos)
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB on-board with either RS232C, Parallel or Ethernet Interface
Driver available
Windows2000/XP/Vista/7/8, OPOS Drivers, JAVAPOS Driver, POS for .net Driver, CUPS Driver for Linux/Mac OSX
Software Utilities
Utility software to customize print speed, darkness and to set up user' font, logo, maintenance counter, etc.
Power Supply
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.0 A
Power Consumption
Approx. 70 W (normal printing), 3W (standby)
External Dimensions (WxDxH)
147 × 207 × 147 mm
Weight
With Built in Power supply 2.0 Kg
Seperate Power Adaptor type: 1.8 Kg
Operating Environment
5 to 45°C, 10 to 90% RH (No condensation)
Storage Environment
-20 to 60°C, 10 to 90% RH (No condensation)
Reliability
Print head life: 150 km, 1 × 200 pulses (At normal temperature/humidity with recommended paper used)
Auto cutter life:2 million cuts (At normal temperature/humidity with recommended paper used)
EMC/Safety Standards
UL, C-UL, FCC Class A, TÜV-GS, CE Marking, C-Tick
