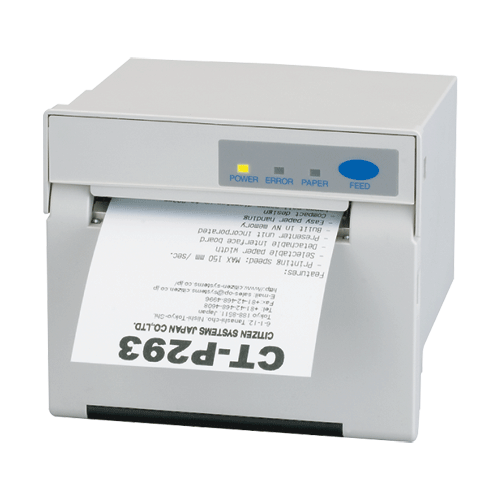

CITIZEN CT-P293 Thermal Panel Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The CT-P29x is a rack mountable thermal panel printer, with easy drop-in paper loading. It is widely applicable in various kinds of data logging and measuring applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Small and compact design
  • Clamshell structure facilitates paper handling and head cleaning
  • Splash-proof design of panel, against vertical drips (Equivalent to IEC60529 IPX1)
  • High speed 150mm/sec printing
  • Durable to low temperature operation down to -20°C
  • Equipped with auto cutter (Full or partial cut)
  • A variety of multiple choices of functions by memory switch
  • Registration of user-defined characters and logos into flash memory
  • Page mode offers to arrange pages freely
  • 1D and 2D bar codes available
NameSizeDownload
Brochure4,034kb ctp293_brochure.pdf
Quick Start Guide859kb CT-P29x_QSE.pdf
User Manual1,803kb CT-P29x_UME.pdf
Command Reference Guide5,312kb CTS_PMU_CTP_CommandReference.pdf
English model drivers74,762kb CIT_360_all_driver_files.zip

Products available to purchase

 SKUVendorName
CTP293PRU CITIZENCT-P293 80mm Thermal Panel Printer
AD36AD3 CITIZENAdapter for the CTS6xx 8xx 24V 2.1A
T8045 GOODSONTherrmal Paper Roll 80x45x12

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
CBM293PRCITIZEN CBM-293 Thermal Panel Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot printing
Printing Width
72 mm / 576 dots
Dot Pitch
8 x 8 dots/mm (203 dpi)
Printing Speed (Max.)
150 mm/sec (1200 dot / lines)
Number of Columns
Font A: 48 columns
Font B: 64 columns
Font C: 72 columns
Character Size
Font A: 1.50 × 3.00 mm, 12 × 24 dots
Font B: 1.13 × 2.13 mm, 9 × 17 dots
Font C: 1.00 × 2.00 mm, 8 × 16 dots
As space for internal space of character font is included, actual character is smallerthan those in the above table.
Character Table/Code Pages
Alphanumeric, International (12 characters × 16 countries),
PC437/850(858)/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai Code 18
Bar-code Type
UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODEBAR, CODE 93, PDF417, QRCODE
Line Spacing
4.25mm (1/6 inch) settable with command
Paper feed method
Friction Feed
Paper Type
Direct Thermal Paper Roll
Paper Width
58 - 80 mm
Paper Roll Diameter
50mm
Paper Thickness
65 to 75µmm
Paper Supply Method
Easy Paper Loading, Drop in from front, close and print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power (Green) Power is on when it is illuminated. It flashes when data is incoming or a memory error has occurred
Error (Red Lights or blinks in case of an error, etc. The interval length of blinking represents the type of error
Paper (Orange) Paper is empty when illuminated
Emulation
Print Buffer
4K bytes/45 bytes
NV Memory
N/A
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
N/A
External Device Port
N/A
Interfaces
Serial (RS-232C compliant) & Parallel (Centronics or IEEE1284nibble mode compliant)
USB (Option)
depending on type. (Our standard machines has all 3 interfaces through a HOSHIDEN connector)
Driver available
WIN 7, OPOS, JAVAPOS, POS for .NET, CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
DC24V ± 10% (2.1A with 9A Peak)
Power Consumption
1.9A (9A at peak)
External Dimensions (WxDxH)
127 × 120.5 × 109 mm
Weight
Approx. 800g
Operating Environment
-20 to 50°C, 10 to 85%RH (No condensation)
Storage Environment
-20 to 60°C, 10 to 90%RH (No condensation)
Reliability
Printer head life:
100 km, 1 × 100 million pulses (at normal temperature/humidity with recommended paper used, Paper thickness: 65µmm)
Auto cutter life:
1 million cuts (at normal temperature/humidity with recommended paper used, Paper thickness: less than 65µmm)
EMC/Safety Standards
UL, C-UL, FCC class A, TUV-Bauart, CE marking, C-tick
Standard compliant if the CITIZEN AC adapter (36AD2) is used.
