CITIZEN CT-D150 Thermal POS Printer Series

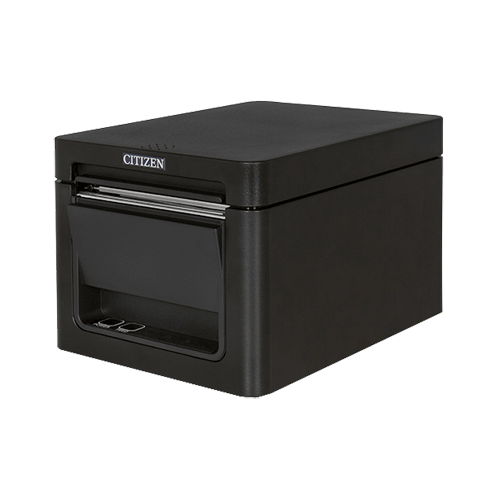

(Product may vary from image. Rely only on description for purchasing decisions.)

New "entry level" POS Thermal Printer from CITIZEN. More features for reliable Printing, High Speed printing in a Stylish and Compact box.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Low cost Thermal Printing
  • 250mm/sec. printing speed
  • Drop-in Paper Loading
  • Built-in USB & Ethernet or USB & RS232 Serial Interface
  • NV Memory for Bit map Data Storage
  • Barcode Printing including GS1 DataBar and 2D Barcodes
  • LLP (Long Life Print) function to be able to extend the printer life
  • Paper save function: Top Margin /Line Spacing / Font Compression
  • Internal Energy Star® Power Supply
  • Low power consumption: Power Save Mode / USB Power Save Mode
  • Easy customization with software utility
  • Printer can be positioned Horizontally or Vertically
  • Available in Black & White (white special order only MOQ applies)
NameSizeDownload
Brochure583kb ctd150_brochure.pdf

Products available to purchase

 SKUVendorName
CTD150UEBL CITIZENCTD150 3" Thermal POS Printer USB Ethernet interface Blk
CTD150URBL CITIZENCTD150 3" Thermal POS Printer USB RS232 interface Blk
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-ETH02 GOODSONPatchlead RJ45 Ethernet 2m Gry
CAB-PR9F9F310II GOODSONSerial Printer Cable for the CTS310II
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
TMT20TM-T20 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm/576 Dots
58mm Paper: 48mm/384 Dots
Dot Pitch
8 x 8 dots/mm (203 x 203 dpi)
Printing Speed (Max.)
250 mm/Sec
Number of Columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
58 mm Paper: Font A - 35/32 columns, Font B - 46/42 columns, Font C - 52/48 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.0 mm (8 x 16 Dots)
Character Table/Code Pages
Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, ThaiCode 11/18 (1Pass/3Pass), TCVN-3, Kanji (JIS first, second, third, and fourth level), Kana, extended characters, JIS X0213, GB18030, BIG5, KS Hangul, EUC Hangul
Bar-code Type
UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, GS1 DataBar, PDF417, QR Code
Line Spacing
4.25mm (1/6 inch), adjustable by a user by command
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
79.5 ± 0.5mm or 57.5 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
53 to 85µm (core tube diameter: inner 12 mm/outer 18mm)
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light & Error Light
Buzzer
Emulation
ESC/POS
Print Buffer
4KBytes/45 bytes
NV Memory
384 Kbytes
Sensors
Paper End Sensor , Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
Built in:
USB 2.0 & Ethernet
or
USB 2.0 & RS232
Driver available
Windows 2000/NT/XP/VISTA/7 32 bit & 64Bit/OPOS/JavaPOS/ POS for .net/CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Input: AC100 ~240V 50/60Hz Energy Star® approved
Rated output: DC 24 V, 2.1 A
Power Consumption
Approximately 2.0 A (average), approximately 0.1 A (standby)
External Dimensions (WxDxH)
125 x 165 x 108 mm
Weight
Approx. 1.3 Kg
Operating Environment
5-45°C, 10-90% RH
Storage Environment
-20-60°C, 10-90% RH
Reliability
Head: 300,000,000 pulses or 150 Km
Auto Cutter: 2,000,000 cuts (Using 3 inch Paper)
EMC/Safety Standards
UL, C-UL, FCC Class A, CE Marking, C-Tick
