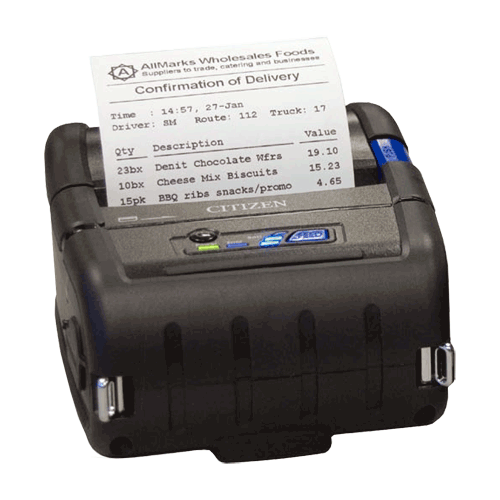

CITIZEN CMP-30II Bluetooth Mob Printer no MSR iOS Android

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CMP30IIBT
  • CMP30IIBUXCX
  • CITIZEN
  • CMP30II
    • Login to view pricing and availability

CMP-30II 3" Bluetooth Thermal Mobile Printer, no MSR, iOS & Android Compatible

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Paper width: Paper width 80 mm
  • Paper load: Quick and easy media changing - drop-in paper loading
  • Printing Speed: High speed printing - up to 100 mm per second
  • Mobile-POS ready
  • Powerful - High capacity batteries for a full day's operation (status indicated by LED)
  • Robust: Robust - exceeds IP42 and survives multiple drops of 1.2 metres
  • Integral tear bar to cut labels at the gap
  • Energy: AC adapter as standard designed to recharge batteries on-board the printer or via an external optional charging station Lithium Ion battery technology and easy-to-change power packs
NameSizeDownload
Brochure63kb cmp30ii_brochure.pdf
Exploded Parts View867kb CMP30II_Parts_layout.pdf
User Manual5,611kb cmp30II_ume.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
72mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 100 mm/Sec (Receipt)
Number of Columns
Font A - 48 columns
Font B - 64 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Character Table/Code Pages
Alphanumeric characters, extension characters, 18 codepages, 14 international characters
Bar-code Type
1D: EAN-8, EAN-13, UPC-A, UPC-E, ITF, CODE 39, CODABAR, CODE 93, CODE 128,
2D: PDF417, MicroPDF417, Maxicode, Datamatrix, AZTEC, TLC39, RSS14
Line Spacing
4.23mm
Paper feed method
Friction
Paper Type
Thermal Paper Roll or Labels (Special Model)
Paper Width
79.5mm +/-0.5
Paper Roll Diameter
Max Ø 56 mm
Paper Thickness
60 - 90um
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power and Battery Charge & Error Indicator
Paper Feed & Power Button
Emulation
Standard: ESC/POS, CPCL Command Compatible
Factory Option: ZPLII Command Compatible
Memory
8 Kbytes
Sensors
Paper End Sensor
2 x Reflective Sensor (Top & Bottom)
Cover Open Sensor
Interfaces
Standard: USB, Serial (RS232),
Optional: Bluetooth V4.2 Class 2, Wireless LAN 802.11a/b/g (Factory Options)
Driver available
Windows XP, Vista, Windows7/8/10 CUPS Linux Driver, CE Driver, iOS
Software Utilities
Windows POS Print SDK, Windows Embedded SDK, iOS SDK, Android SDK, CE SDK, Configuration Tool
Battery
Rechargeable Li-ion. Output 7.4V, 2600mAh
On Full Charge: Continuous printing for up to 60 minutes (250 m), 48 Hours on Standby
Charger Specifications: Input 100-240V AC, 50-60Hz, Output 8.4VDC 800~1400 mA
MSR
NA
External Dimensions (WxDxH)
120 x 152 x 70 mm
Weight
Including Battery Approx. 640 g
Operating Environment
-10-50°C
30-80% RH None condensing
Storage Environment
-20-60°C
10-85% RH None condensing
Environmental Sealing
IP42
Mechanical Shock
Multiple drops of 1.5m (6 faces)
Reliability
Printhead 50 km
EMC/Safety Standards
UL, FCC Class B, CE, C-Tick
