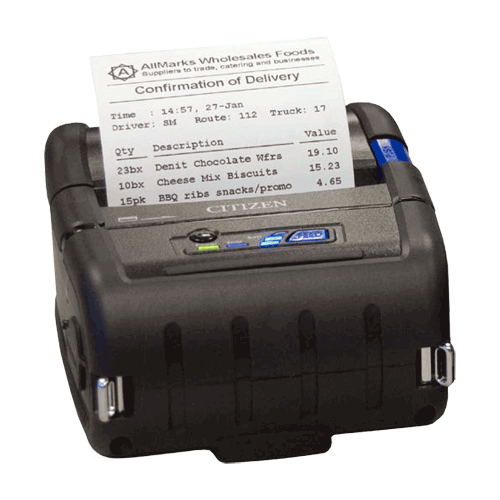

CITIZEN CMP-30 Portable 3 inch Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Citizen's CMP-30 mobile printers put the power of professional label and receipt printing in the palm of your hand. The CMP-30 can print on receipt and label media up to 3-inches wide. For protection, a strong rubber moulding is wrapped about the high-impact case to give both durability and reliability.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 3 inch Portable Thermal Printer
  • Paper Drop in Style
  • USB & RS232 interface standard
  • Factory option of Bluetooth® and Wireless LAN interfaces.
  • Li-ion rechargeable Battery
  • Battery monitoring
  • Label Printing
  • Internal Charging Circuit
  • Belt Clip & Strap holder
  • Firmware & Font Data loaded through interface
  • Auto power off function
  • Factory option: 3 track Magnetic stripe car reader
NameSizeDownload
Brochure164kb cmp20-30_brochure.pdf
User Manual4,825kb cmp30_um.pdf
Windows Utility Software146kb CIT_CITIZEN_CMP-2030_Utility-1.67.zip
Windows Driver24,336kb CIT_CMP30WinDriver160E.zip

Products available to purchase

 SKUVendorName
CMP30LWF CITIZENCMP-30 Portable WiFi Label Printer
CMP30WF CITIZENCMP-30 Portable Wifi Printer
AD-CMP20AUADAPT CITIZENAU Plug for Adapter CMP series (old)
CMP30CHGCRADLE CITIZENBattery Charge Cradle for the CMP30 Battery
CMP20VCHG CITIZENCigar Jack Charger for the CMP20 30
CMP30LCASE CITIZENLeather case for the CMP-30
CAB-CMP20RS CITIZENSerial Cable for the CMP20 30
CMP30BATT CITIZENSpare Rechargeable Battery for CMP30

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
72mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 100 mm/Sec (Receipt)
Number of Columns
Font A - 48 columns
Font B - 64 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Character Table/Code Pages
Alphanumeric characters, extension characters, 18 codepages, 14 international characters
Bar-code Type
UPC/A. JAN (EAN) 13/8 columns, ITF, CODE 39, CODABAR, CODE 93, CODE 128, PDF417 (2D)
Line Spacing
4.23MM
Paper feed method
Friction
Paper Type
Thermal Paper Roll or Labels
Paper Width
79mm
Paper Roll Diameter
Max Ø 56 mm
Paper Thickness
60 - 90um
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power and Battery Charge & Error Indicator
Paper Feed & Power Button
Emulation
ESC/POS, CPCL command compatible
Memory
256KB capable of storing user defined characters and logos
Sensors
Paper End Sensor: Gap Sensor
Cover Open Sensor
Interfaces
USB, Serial (RS232), Bluetooth Class 2, Wireless LAN 802.11b/g
Driver available
Windows 2000/XP, Vista, Windows Mobile, CUPS, Windows SDK, Windows SDK CE5/CE6, Androide SDK, iOS SDK
Software Utilities
iOS SDK, Android SDk, Windows SDK,
Battery
Rechargeable Li-ion. Output 7.4V, 2200mAh
On Full Charge: Continuous printing for up to 36 minutes, 19 Hours on Standby
Charger Specifications: Input 100-240V AC, 50-60Hz, Output 8.4VDC 1200mA
MSR
Factory Option
2 Track MSR
IC Card Reader
External Dimensions (WxDxH)
120 x 152 x 70 mm
Weight
Including Battery Approx. 600 g
Operating Environment
-10-50°C
35-90% RH None condensing
Storage Environment
-20-60°C
95% RH None condensing
Environmental Sealing
IP42
Mechanical Shock
Multiple drops of 1.2m (6 faces)
Reliability
Printhead 50 km
Battery: continuous printing for 90 minutes, standby for 24 hours
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick, CCC
