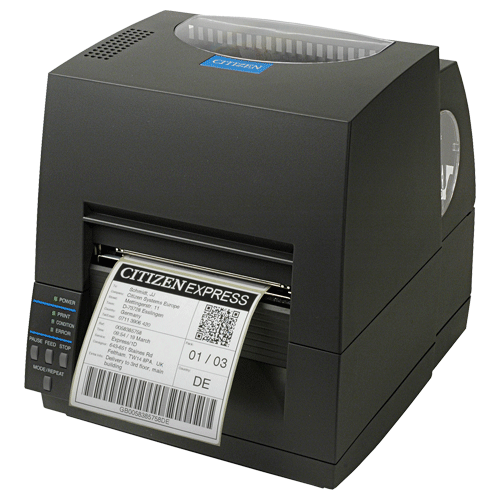

CITIZEN CLS-631 4" Thermal Transfer 300Dpi Label Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

The powerful CL-S631 offers unparalleled versatility in the desktop thermal printer class. Printing in both direct thermal and thermal transfer modes, the CL-S631 features a 360-meter ribbon for greater productivity and reduced downtime. Citizen's unique metal Hi-Lift™ mechanism allows easy access for loading of media and/or ribbons and the adjustable media sensor can handle a wide variety of label configurations including standard and paediatric medical wristbands.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Thermal Transfer Technology
  • Zebra® and Datamax® auto-sensing emulation detection
  • Powerful 32-Bit RISC processor
  • Thermal transfer or direct thermal printing
  • 360-meter ribbon
  • Standard and paediatric medical wristband capable
  • Metal Hi-Lift™ print mechanism
  • Standard internal parallel, serial and USB interfaces
  • Optional internal Parallel or Ethernet interfaces are available.
  • Internal 5-inch (125mm) media capacity
  • Ships with Windows™ 2000, XP, Vista, and Windows 7 drivers
  • Active Ribbon Control and Positioning System (ARCP)
  • Internal power supply
  • Label-making software included
NameSizeDownload
Datasheet132kb cls521_621_datasheet.pdf
User Manual2,974kb cls621-631_um.pdf
Seagull Driver13,873kb CIT_7.3.3_M-0.exe
Seagull Driver4,244kb CIT_V-COM-E110616.zip

Products available to purchase

 SKUVendorName
CLS631IIG CITIZENCLS631II Thermal Transfer Label Printer 300dpi Blk
CLSAC600B CITIZENAutocutter for the CLS5xx 6xx Dark Grey
CLP6PEEL CITIZENPeeler for the CLP\CLS 521\621\631
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
LAB100150PWS40P GOODSONPlain Label 98 x 148 x 40 Perf
TRWR110300B25 GOODSONTh Trsf Rib. B110 Wax Res110mmx300m Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
ZT220ZT-220 4" Thermal Transfer Label Printer

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal and Thermal Transfer
Printing Width
Max. 104 mm
Printing Length
Max. 812.8 mm
Dot Pitch
12 dots / mm (300 dpi)
Printing Speed (Max.)
Max. Thermal Transfer - 4ips. Max. Direct thermal - 6ips
Font
9 fixed pitch, 2 proportional font.
Character Table/Code Pages
See User Manual
Bar-code Type
Code3of9,UPC_A,UPC-C, Interleaved 2of5, Code 128,EAN-13,EAN-8,HIBC, CODABAR(NW-7),Plessey,Int2of5,CASE CODE,Code93,ZIP, UPC2DIG ADD, UPC5DIG ADD, UCC/EAN128(for K-MART), RandomWeight, Telepen,FIM,UPS Maxicode, PDF-417, Data Matrix, and QR code.
Paper feed method
Friction Feed
Media Type
Roll, fanfold
(Continuous media, die-cuts media,)
Media width
Min. 19.5 mm to Max. 118 mm
Paper Roll Diameter
Max Ø 127 mm with 25.4 to 76 mm Core
Media Tickness
Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter
Optional Cutter
Indicators/Controls
Power/Error LED (Green/Red)
Function keys: FEED, STOP, PAUSE,
Buzzer
Power Switch
Emulation
Datamax® I-Class & DMX400 Programming language
Zebra® programming language ZPL-II
Auto detect
CPU
32 Bit RISC CPU
Memory
RAM 16MB total, 1.0 MB available for use
FLASH 4MB total, 1.0MB available for use
Sensors
Transparent sensor, Reflective sensor& Label peeling sensor (if optional Peeler is used)
Interfaces
Standard with USB 1.1 (Full speed) & RS-232C interface
Optional Ethernet or Paralllel IEEE1284 (compatible, Nibble, ECP mode) or Wireless Lan.
Driver available
Drivers by Seagull
Software Utilities
Bartender Ultralite
Power Supply
Internal 200-240V 1.5A 50/60Hz
Power Consumption
Max. 1.5A
External Dimensions (WxDxH)
231 × 289 × 270 mm
Weight
4.5 Kg approx.
Operating Environment
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards
UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM
