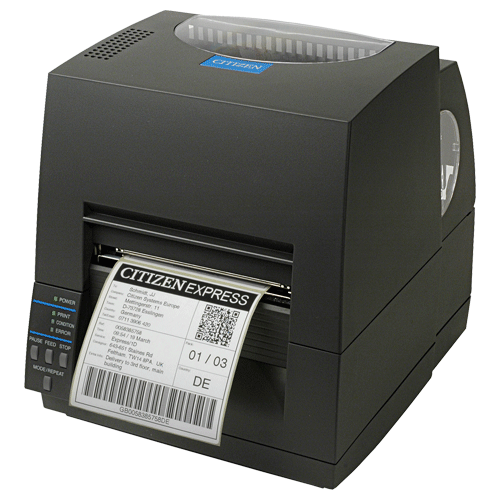

CITIZEN CLS-621II 4" Thermal Transfer Label Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The CL-S621II is a precision engineered, fast and easy-to-use unit that includes all the capabilities of the CL-S521II plus the option to print in both direct thermal and thermal transfer modes. The printer also features Citizen’s Hi-Lift™ metal mechanism and the innovative ARCP™ anti-wrinkle and automatic tensioning system.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Thermal Transfer Technology
  • Zebra® and Datamax® auto-sensing emulation detection
  • Thermal transfer or direct thermal printing
  • CLS621: 203 dpi CLS631: 300 dpi
  • 360-meter ribbon
  • Standard and paediatric medical wristband capable
  • Metal Hi-Lift™ print mechanism
  • Standard internal parallel, serial and USB interfaces
  • Optional internal Parallel or Ethernet interfaces are available.
  • Internal 5-inch (125mm) media capacity
  • Active Ribbon Control and Positioning System (ARCP)
  • Internal power supply
  • Label-making software included
NameSizeDownload
Datasheet312kb datasheet-cl-s621ii-en.pdf
User Manual4,520kb cl-s6xxiiI_ume.pdf
Datamax Command Reference837kb Citizen_CLE_CLS_CLP_Datamax_Command_Ref.pdf
ZPL Command Reference324kb Citizen_ZPL_Command_Ref.pdf
Seagull Windows Driver70,557kb CIT_Label_Printer_Driver_2021.3 M-3.exe
VCOM Driver994kb CIT_VCOM_Driver EN20200115.zip

Products available to purchase

 SKUVendorName
CLS621IIG CITIZENCLS621II Thermal Transfer Label Printer Blk
CLSAC600B CITIZENAutocutter for the CLS5xx 6xx Dark Grey
CLP6PEEL CITIZENPeeler for the CLP\CLS 521\621\631
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
LAB100150PWS40P GOODSONPlain Label 98 x 148 x 40 Perf
TRWR110300B25 GOODSONTh Trsf Rib. B110 Wax Res110mmx300m Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal and Thermal Transfer
Printing Width
Max. 104 mm
Printing Length
Max. 812.8 mm
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. Thermal Transfer - 4ips. Max. Direct thermal - 6ips
Font
9 fixed pitch, 2 proportional font.
Character Table/Code Pages
See User Manual
Bar-code Type
Code3of9,UPC_A,UPC-C, Interleaved 2of5, Code 128,EAN-13,EAN-8,HIBC, CODABAR(NW-7),Plessey,Int2of5,CASE CODE,Code93,ZIP, UPC2DIG ADD, UPC5DIG ADD, UCC/EAN128(for K-MART), RandomWeight, Telepen,FIM,UPS Maxicode, PDF-417, Data Matrix, and QR code.
Paper feed method
Friction Feed
Media Type
Roll, fanfold
(Continuous media, die-cuts media,)
Media width
Min. 12.5 mm to Max. 118 mm
Paper Roll Diameter
Max Ø 200 mm with 25.4 mm Core
Media Tickness
Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter
Optional Cutter
Indicators/Controls
Power/Error LED (Green/Red)
Function keys: FEED, STOP, PAUSE,
Buzzer
Power Switch
Emulation
atamax® DMX
Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations
Zebra® ZPL2®
CBI™ BASIC Interpreter
Eltron® EPL2®
CPU
32 Bit RISC CPU
Memory
RAM 32MB total, User area 8.0 MB
FLASH 16MB total, User area 4.0MB
Sensors
Transparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used)
Interfaces
Standard with USB 2.0 (Full speed) & RS-232C interface
Optional Ethernet or Paralllel IEEE1284 (compatible, Nibble, ECP mode) or Wireless Lan.
Driver available
Drivers by Seagull
Software Utilities
Bartender Ultralite
Power Supply
Internal 200-240V 1.5A 50/60Hz
Power Consumption
Max. 1.5A
External Dimensions (WxDxH)
231 × 289 × 263 mm
Weight
4.9 Kg approx.
Operating Environment
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards
UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM
