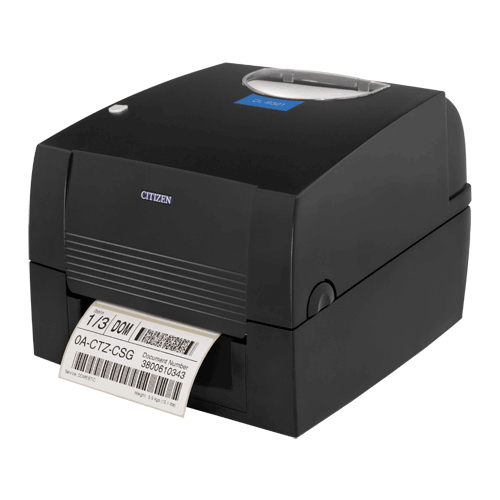

CITIZEN CLS-321 4" Thermal Transfer Label Printer Series ***obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The CL-S321 is an easy-to-use, value-based printer that delivers dependable day-to-day output. The printer offers EPL2 compatibility, so you can just plug and print with existing applications, and provides not only Ethernet but also RS-232 and USB interfaces. With this robust, reliable unit you can invest less time in printer maintenance, training and support and more time in building your business.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Thermal Transfer or Direct Thermal Label Printer
  • Standard Multi Interface - USB, RS232 & Ethernet
  • Front exit - prevents damage from moisture or foreign objects
  • Variable paper width - 1 inch (25.4 mm) - 4.6 inches (118.1 mm)
  • Paper thickness up to 0.200mm
  • Fast print out - 4 inches per second (100 mm per second)
  • Large media capacity - holds rolls up to 5 inches (127 mm)
  • Wide range of ribbon options - Uses up to 110 metres outside wound ribbons
NameSizeDownload
Datasheet180kb CLS321_Datasheet.pdf
User Manual8,646kb cls321_331_ume.pdf
Seagull Driver13,873kb CIT_7.3.3_M-0.exe
Seagull Driver4,244kb CIT_V-COM-E110616.zip

Products available to purchase

 SKUVendorName
CAB-D9MD9FExt GOODSON2m DB9M to DB9F straight Ext
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
LAB100100PWS25P GOODSONPlain Label 100x100x25 Perf
LAB100150PWS40P GOODSONPlain Label 98 x 148 x 40 Perf
LAB10050PPWS40 GOODSONPlain Poly Label 100x50x40 White
LAB4028PPWS25 GOODSONPlain Poly Label white 40 x 28 x 25
LAB4028PWR40 GOODSONRemovable Plain Label 40x28x40
LAB4028TWR25 GOODSONRemovable Thermal Lab 40x28x25
LAB100100TWS40P GOODSONThermal Label 100x100x38 Perf
LAB4028TWS40 GOODSONThermal Label 40 x 28 x 40 Bx 5 2000 Labels Roll
LAB100150TWS40P GOODSONThermal Label 99 x 148 x 40 Perf
TRWR11074B11 GOODSONTrsf Rib. Wax Res 110mmx74m Black
TRWR5774B11-4 GOODSONTrsf Ribbon Wax Resin 57 X 74 4"core

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Thermal Transfer/Direct Thermal
Printing Width
Max. 4.25 inches, 108 mm
Printing Length
Min. 4 mm, Max. 1727 mm
Dot Pitch
8 × 8 dots / mm (203 dpi)
Optional 300 dpi (special Order CL-S331)
Printing Speed (Max.)
Max. 102 mm/sec
Font
Resident Bitmap Fonts:
6, 8, 10, 12, 14, 18, 24, 30, 16x26 & OCR A&B
Bitmap fonts 90, 180 & 270° rotatable, Single Characters 90, 180 & 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts: 90, 180 & 270° rotatable
Character Table/Code Pages
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16
Bar-code Type
1D: Code 93, Code 39, EAN-8/13 (add on 2 & 5), UPC-A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, CODABAR, Code 128 (subset A,B & C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 Databar
2D: PDF-417, MaxiCode, Micro PDF-417, Data Matrix, QR Code, Micro QR Code and Aztec Code
Paper feed method
Friction Feed
Media Type
Continues Form, Gap Labels, Black Mark Sensing and punch hole sensing
Label length set by auto sensing or programming
Media width
Min. 25.4 mm to Max. 118 mm
Paper Roll Diameter
Max Ø 127 mm with 25.4/38.1mm Core
Media Tickness
Min. 0.06 mm to Max. 0.2 mm
Auto Cutter
N/A
Indicators/Controls
one Tri-Colour LED
Function key: FEED
Emulation
EPL, ZPL auto switch
CPU
32 Bit RISC CPU
Memory
RAM (Standard Memory) 16.0 MB Total, 1.0 MB available to user
Flash (Non-Volatile Memory) 8.0 MB Total, 4.0 MB available to user
Sensors
Fixed transmisive sensor
Reflective sensor, Central Aligned
Label gap and Black Mark
Interfaces
Standard with USB 2.0, RS-232C interface & Ethernet (10/100)
Driver available
Windows 8, Windows 7, Windows Vista, Windows XP
Software Utilities
Bartender Ultralite
Power Supply
Auto Switching 100-240V 50/60Hz
Power Consumption
External Dimensions (WxDxH)
224 × 254 × 170 mm
Weight
2.5 Kg
Operating Environment
Temperature: 5 to 40 °C
Humidity: 30 to 85% (non-condensing)
Storage Environment
Temperature: -20 to 50 °C
Humidity: 10 to 90% (non-condensing)
EMC/Safety Standards
CE(EMC), FCC Class A, CB and CCC, NOM, S-Mark, C-tick
