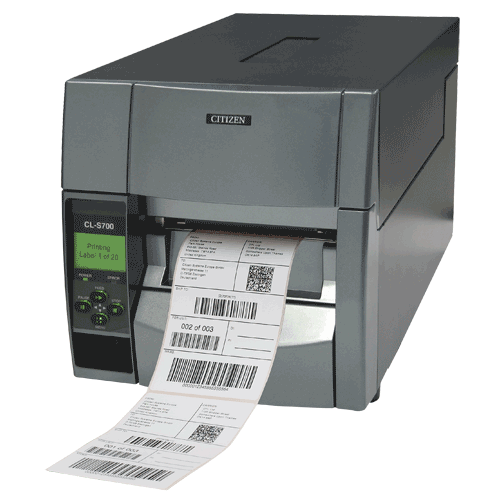

CITIZEN CL-S700II Series 4" Thermal Transfer Label Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

Our CL-S700II series is designed for ease of use; the metal mechanism opens vertically to a full 90° to allow for easy ribbon access, while integrated ribbon control and positioning support precision printing on even small or specialist media. The CL-S700II also comes with the option to print in both direct thermal and thermal transfer modes.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Easy ribbon loading: Hi-Lift™ metal mechanism opening to a full 90° to allow for easy ribbon access
  • Heavy duty metal case for strength and durability
  • Print Resolution CLS700II: 203 DPi, CLS703II: 300 DPi
  • Ribbons up to 450 metres long either inside or outside wound with ARCP™ ribbon control
  • Power switch is conveniently located at the front of the printer
  • Large graphic LCD for clear indication of printer status and easy printer configuration
  • Soft-close top cover for user safety and user courtesy
  • Parallel, serial and USB interfaces standard; optional Ethernet and Wireless LAN
  • Cross-Emulation™: Supports both Datamax® and Zebra® emulations and will sense the language being used and offer to switch emulations automatically
  • Free-of-charge on CD with printer, including support for various platforms
  • Media capacity: Internal 203mm (8-inch) media capacity
  • CLP7xxIIR: Rewind model
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
CLS700II CITIZENCL-S700II Industrial Thermal Trsf Label Printer
CLS703II CITIZENCL-S703II Industrial Thrml Trsf Label Ptr 300Dpi
CLS700III CITIZENCLS703III GEN 3 300dpiThermal Trsf Direct Pr
CLSAC700B CITIZENAutocutter for CLS700 703
CLS6IIETH CITIZENEthernet Interface for CLS5xx 6xx 700 703 MarkII
CLS7PEEL CITIZENPeeler for the CLS700 Series label Printer
CLS7RWGUIDE CITIZENRewinder paper guide for CL-S700R
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
TRWR110300B25 GOODSONTh Trsf Rib. B110 Wax Res110mmx300m Black
TRWR110450B25 GOODSONTh Trsf Rib. B110 Wax Res110mmx450m Black
TRWR55300B25 GOODSONTrsf Rib. B110A Wax res 55mmx300m Black
TRWR80300B25 GOODSONTrsf Rib. B110A Wax Res 80mmx300m Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal and Thermal Transfer
Printing Width
Max. 104 mm
Printing Length
Max. 253.9 mm
Dot Pitch
CLS700II/700IIR: 203 dpi, 8 dots/mm
CLS703II/703IIR: 300 dpi, 8 dots/mm
Printing Speed (Max.)
CLS700II/700IIR up to 254 mm (10 inches) per second
CLS703II/703IIR up to 203 mm (8 inches) per second
Font
Fixed Pitch Font, OCR Font, Proportional Font
Kanji Font
Character Table/Code Pages
See User Manual
Bar-code Type
1D Codes: Code39, Code93, Code128, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5 Case Code, UPC2DIG add, UPC5DIG add, Telepen, ITF14 & 16, Industrial 2 of 5, COOP 2 of 5, GS1*1
2D Codes: PDF-417, UPS Maxi Code, DATA Matrix, QR Code
Paper feed method
Friction Feed
Media Type
Roll, fanfold
(Continuous media, die-cuts, continuous tags, paper or ticket)
Media width
Min. 25.4 mm Max. 118 mm
Label Width: Min. 7.62 mm Max. 118 mm
Paper Roll Diameter
Max Ø 203 mm with 38 to 76 mm Core
Media Tickness
Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter
Optional Cutter
Indicators/Controls
Graphic LCD with 4 buttons
VuePrint™ Menu configuration system
LED: Power, Error
Buzzer:Alarms, errors etc
Operating keys: Pause, Feed, Stop, Menu
Power switch
Emulation
Datamax® (DMX400™, Prodigy Plus™, I-Class™) and Zebra® ZPL2® on board Cross-emulation™. Printer will sense the language being used and offer to switch emulations automatically.
CBI™ BASIC Interpreter
Eltron® EPL2®
CPU
32 Bit RISC CPU
Memory
SDRAM 64Mb total, 30 MB available for use
FLASH 16MB total, 4.0MB available for use
Sensors
Transparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used)
Interfaces
Standard with
USB 1.1 (Full speed)
RS-232 (Baudrate from 2400-115200) interface
Parallel (IEEE 1284)
Optional:
Ethernet LAN or
Wireless Lan.
Driver available
Drivers by Seagull
Software Utilities
Bartender Ultralite
Power Supply
AC100 - 240V, 1.5 - 3.5A, 50/60Hz
Power Consumption
Max. 3.5A
External Dimensions (WxDxH)
CLS700II/703II: 255 × 490 × 265mm
CLS700IIR/703IIR: 255 × 490 × 385mm
Weight
CLS700II/703II: 13.3Kg
CLS700IIR/703IIR:17.6Kg
Operating Environment
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards
UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM, CCC
