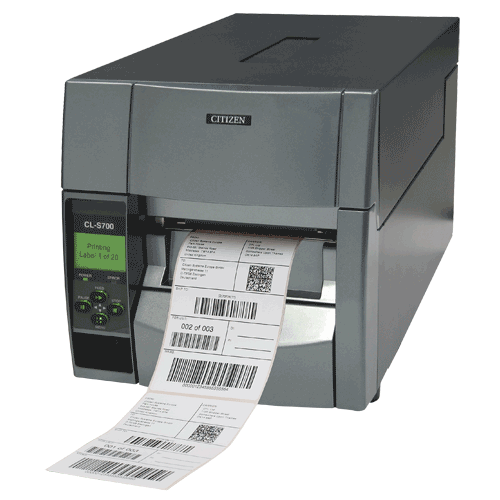

CITIZEN CL-S700 Series 4" Thermal Transfer Label Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

All Citizen label and barcode printers are designed with ease of use in mind and our new CL-S700 Series printer is no exception. In fact, we believe we have exceeded even our own high standards with our latest design. With its Clam Shell heavy duty Printer mechanism, it is a very robust label printer for many Factory & Warehouse applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Easy ribbon loading: Hi-Lift™ metal mechanism opening to a full 90° to allow for easy ribbon access
  • Heavy duty metal case for strength and durability
  • Print Resolution CLS700: 203 DPi, CLS703: 300 DPi
  • Ribbons up to 450 metres long either inside or outside wound with ARCP™ ribbon control
  • Power switch is conveniently located at the front of the printer
  • Large graphic LCD for clear indication of printer status and easy printer configuration
  • Soft-close top cover for user safety and user courtesy
  • Parallel, serial and USB interfaces standard; optional Ethernet and Wireless LAN
  • Cross-Emulation™: Supports both Datamax® and Zebra® emulations and will sense the language being used and offer to switch emulations automatically
  • Drivers: Ships with Windows™ 2000, XP, and Vista drivers
  • Media capacity: Internal 203mm (8-inch) media capacity
  • CLP7xxR: Rewind model
NameSizeDownload
Brochure1,462kb cls700_brochure.pdf
User Manual2,563kb cls700ume.pdf
Seagull Driver13,873kb CIT_7.3.3_M-0.exe
Seagull Driver4,244kb CIT_V-COM-E110616.zip

Products available to purchase

 SKUVendorName
CLS700 CITIZENCL-S700 Industrial Thermal Transfer Label Printer
CLS700RW CITIZENCL-S700 Industrial Thrml Trsf Label Prt with Rewind
CLS703RW CITIZENCL-S703 Label Printer 300dpi with Rewind
CLSAC700B CITIZENAutocutter for CLS700 703
CLS7PEEL CITIZENPeeler for the CLS700 Series label Printer
CLS7RWGUIDE CITIZENRewinder paper guide for CL-S700R
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
TRWR110300B25 GOODSONTh Trsf Rib. B110 Wax Res110mmx300m Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
ZT410ZT-410 4" Thermal Transfer Label Printer

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal and Thermal Transfer
Printing Width
Max. 104 mm
Printing Length
Max. 812 mm
Dot Pitch
CLS700/700R: 203 dpi, 8 dots/mm
CLS703/703R: 300 dpi, 8 dots/mm
Printing Speed (Max.)
CLS700/700R up to 254 mm (10 inches) per second
CLS703/703R up to 200 mm (8 inches) per second
Font
1 Scalable, 8 Bitmap, OCR-A & B
True Type Font Download Standard
Character Table/Code Pages
See User Manual
Bar-code Type
1D Codes: Code39, Code93, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5, Code128 with subsets A/B/C and UCC Case Codes, Telepen, FIM & HIBC.
2D Codes: PDF-417 & Maxi Code
Paper feed method
Friction Feed
Media Type
Roll, fanfold
(Continuous media, die-cuts, continuous tags, paper or ticket)
Media width
Min. 25.4 mm Max. 118 mm
Label Width: Min. 7.62 mm Max. 118 mm
Paper Roll Diameter
Max Ø 203 mm with 38 to 76 mm Core
Media Tickness
Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter
Optional Cutter
Indicators/Controls
Graphic LCD with 4 buttons
VuePrint™ Menu configuration system
LED: Power, Error
Buzzer:Alarms, errors etc
Operating keys: Pause, Feed, Stop, Menu
Power switch
Emulation
Datamax® (DMX400™, Prodigy Plus™, I-Class™) and Zebra® on board. Printer will sense the language being used and offer to switch emulations automatically
CPU
32 Bit RISC CPU
Memory
SDRAM 16Mb total, 1.0 MB available for use
FLASH 4MB total, 1.0MB available for use
Sensors
Transparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used)
Interfaces
Standard with
USB 1.1 (Full speed)
RS-232 (Baudrate from 2400-115200) interface
Parallel (IEEE 1284)
Optional:
Ethernet LAN or
Wireless Lan.
Driver available
Drivers by Seagull
Software Utilities
Bartender Ultralite
Power Supply
AC100 - 240V, 1.5 - 3.5A, 50/60Hz
Power Consumption
Max. 3.5A
External Dimensions (WxDxH)
CLS700/703: 255 × 490 × 265mm
CLS700R/703R: 255 × 490 × 385mm
Weight
CLS700/703: 13.3Kg
CLS700R/703R:17.6Kg
Operating Environment
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards
UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM, CCC
