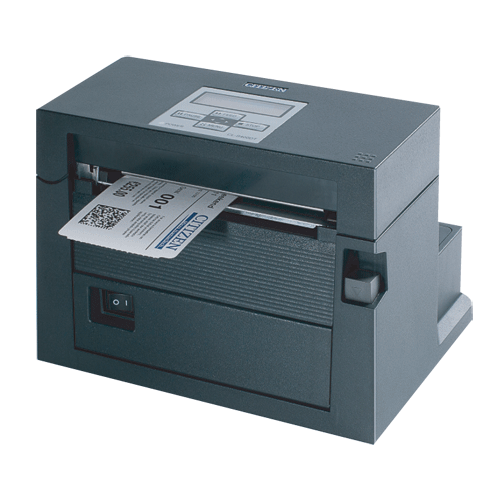

CITIZEN CL-S400DT 4" Direct Thermal Label Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The CT-S400 is a compact footprint Label or Ticketing printer with an industrial performance metal Mechanism. It's Hi-Open® print mechanism makes it very easy to change Label or tag media. Typical applications are Event ticketing, Boarding passes, Shelf-edge labelling, Retail Swing tags, Fanfold Labels for logistics.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal Label Printer
  • High Lift Mechanism for easy media loading
  • Self-contained metal mechanism for durable operation
  • Internal Power Supply
  • Both Zebra® and Datamax® emulations are installed as standard
  • BASIC interpreter for code conversion and support for other ticketing emulations
  • Adjustable media sensors for tags with unusual cut-outs or black marks
  • Standard tear-bar for perforated lables or optional autocutter
  • Internal Serial & USB standard plus ethernet or Parallel options available
  • Media Roll Holder or fanfold stacked media
NameSizeDownload
Brochure148kb cls400dt_brochure.pdf
User Manual4,446kb cls400dt_um.pdf
Seagull Driver13,873kb CIT_7.3.3_M-0.exe
Seagull Driver4,244kb CIT_V-COM-E110616.zip
Quick Start Guild8,072kb CL-S400DT_Quick_Start_Guild.pdf

Products available to purchase

 SKUVendorName
CLS400DTR CITIZENCLS400 Direct Thermal Label Pr with Roll holder Blk
CLSAC600B CITIZENAutocutter for the CLS5xx 6xx Dark Grey
CIF801E CITIZENEthernet Interface for CTS800 CTS600 Series
CIF801P CITIZENParallel Interface Board for CTS800 CTS600 Series
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
Max. 104 mm
Printing Length
Min. 4 mm, Max. 812.8 mm
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 15.2 mm/s 6 ips
Font
Datamax® emulation: Seven kinds of fixed pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer
Zebra® emulation: Five kinds of fixexd pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer *4
*3: The OCR font may have a low recognition rate according to the reader.
*4. It is equipped with UFST™ and TrueType™ raterizer that are licensed from Agfa Corporation.
Character Table/Code Pages
See User Manual (page 55 under Symbol set)
Bar-code Type
Datamax® emulation:
Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM, UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS
Zebra® emulation: Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet, Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39
Paper feed method
Friction Feed
Media Type
Roll, fanfold
(Continuous media, die-cuts media, continuous tags, copntinuous tickets)
Media width
Min. 19.5 mm to Max. 118 mm
Paper Roll Diameter
Max Ø 127 mm with 25.4 to 76 mm Core
Min. media core when using labels 50.8 mm
Media Tickness
Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter
Optional quilotine Cutter
Indicators/Controls
Power/Error LED (Green/Red)
LCD Panel
4 Function keys: FEED, STOP, PAUSE, MENU
Buzzer
Emulation
CITIZEN original language
Datamax® Programming language
Zebra® programming language
Auto detect
CPU
32 Bit RISC CPU
Memory
Flash ROM 8MB (User area: 1MB)
Datamax® emulation: SDRAM 16MB(User area: 1MB)
ZEBRA® emulation: SDRAM 16MB(User area: 4MB)
Sensors
Transparent sensor, Reflective sensor& Label peeling sensor (if optional Peeler is used)
Interfaces
Standard with USB 2.0 (Full speed) & RS-232C (2400, 4800, 9600, 19200, 38400,115200 bps) interface
Optional Ethernet or Paralllel (compatible, Nibble, ECP mode)
Driver available
Drivers by Seagull
Software Utilities
Bartender Ultralite
Power Supply
Internal 200-240V 50/60Hz
ENERGY STAR® qualified printer
Power Consumption
Max. 1.2A
External Dimensions (WxDxH)
206 × 218 × 150 mm (With Paper roll Holder)
Weight
3 Kg
Operating Environment
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards
CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick
