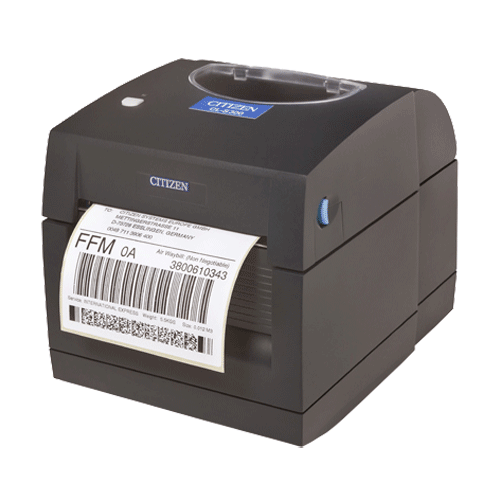

CITIZEN CL-S300 4" Direct Thermal Label Printer Series ***obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The CL-S300 packs all the essential features required for regular, medium volume label printing into a compact, robust case. The Windows® Graphical Device Interface offers simple plug and play printing from any Windows® application, while Citizen’s Hi-Open™ case enables easier media loading without increasing the unit's footprint.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Direct Thermal Label Printer
  • Easy set-up and media loading
  • Integrated power supply
  • Label dispenser for easy print, peel and apply as option
  • Front exit - prevents damage from moisture or foreign objects
  • Variable paper width - 1 inch (25.4 mm) - 4.6 inches (118.1 mm)
  • Quick and easy media changing - drop-in paper loading
  • Paper thickness up to 0.200mm
  • Fast print out - 4 inches per second (100 mm per second)
  • Large media capacity - holds rolls up to 5 inches (127 mm)
  • Low space requirement - integrated power supply enables clean work station
NameSizeDownload
Datasheet132kb cls300_datasheet.pdf
User Manual2,140kb cls300_ume.pdf
Seagull Driver13,873kb CIT_7.3.3_M-0.exe
Seagull Driver4,244kb CIT_V-COM-E110616.zip

Products available to purchase

 SKUVendorName
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
GK420DGK-420D Thermal Label Printer

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
Max. 4.25 inches, 108 mm
Printing Length
Min. 38.1 mm
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 102 mm/sec
Font
Resident Bitmap Fonts:
6, 8, 10, 12, 14, 18, 24, 30, 16x26 & OCR A&B
Bitmap fonts 90, 180 & 270° rotatable, Single Characters 90, 180 & 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts: 90, 180 & 270° rotatable
Character Table/Code Pages
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16
Bar-code Type
N/A, uses Windows™ Graphical Interface,
Barcodes need to be printed from windows driven application
Paper feed method
Friction Feed
Media Type
Continues Form, Gap Labels, Black Mark Sensing and punch hole sensing
Label length set by auto sensing or programming
Media width
Min. 25.4 mm to Max. 118 mm
Paper Roll Diameter
Max Ø 127 mm with 25.4/38.1mm Core
Media Tickness
Min. 0.06 mm to Max. 0.2 mm
Auto Cutter
N/A
Indicators/Controls
one Tri-Colour LED
Function key: FEED
Emulation
CPU
32 Bit RISC CPU
Memory
RAM (Standard Memory) 16.0 KB Total
Flash (Non-Volatile Memory) 64.0 KB Total, 4.0 KB available to user
Sensors
Fixed transmisive sensor
Reflective sensor, Central Aligned
Label gap and Black Mark
Interfaces
USB Device
Driver available
WIN 8, WIN 7, WIN 2000, WIN Vista, WIN XP, WIN Server 2003/2008/2012
DLL: WIN 2000, XP & Vista
Software Utilities
Bartender Ultralite
Power Supply
Auto Switching 100-240V 50/60Hz.
Power Consumption
Max 1.6A
External Dimensions (WxDxH)
168 × 222 × 178 mm
Weight
2.0 Kg
Operating Environment
Temperature: 5 to 40 °C
Humidity: 30 to 85% (non-condensing)
Storage Environment
Temperature: -20 to 50 °C
Humidity: 10 to 90% (non-condensing)
EMC/Safety Standards
CE(EMC), FCC Class A, CB and CCC, UL, c-UL, C-tick
