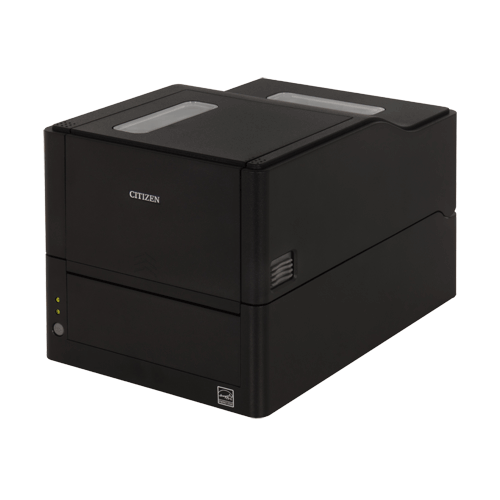

CITIZEN CL-E321 4" Thermal Transfer Label Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The CL-E321‘s is a economical Thermal Transfer Label Printer. Its compact, modern, functional design takes up very little desk space, is easy to use and is also perfectly at home in any location, from warehouses to hospitals. It also has a fast print speed of 8 inches-per-second, is quick to setup and to load with media. Featuring on-board LAN, USB and Serial interfaces, the CL-E321 allows the printer to be operated remotely and settings adjusted thanks to its LinkServer™ management tool, which enables you to connect to the printer instantly via a web browser.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Thermal Transfer Label Printer
  • Ethernet LAN, USB & Serial interfaces as standard
  • Compact size and overall footprint, to fit in small spaces
  • One minute, tool-free maintenance: both head and platen can be replaced without tools
  • Hi-Lift™ mechanism: full access for all operations including easy media / ribbon changing and sensor adjustment
  • Adjustable media sensor as standard with label gap and black mark sensing
  • Integral LinkServer™ web management enables easy operation and remote management of the printer
  • Black or white case colours suitable for a wide variety of environments
NameSizeDownload
Brochure201kb CL-E321_Datasheet.pdf
User Manual7,633kb CL-E321_ume.pdf
User Manual7,633kb CL-E321_ume.pdf

Products available to purchase

 SKUVendorName
CLE321G CITIZENCLE-321 203dpi 4" Thermal Trsf Label Printer Black
CLE321CG CITIZENCLE-321 Thml Trsfer Printer 203 dpi with Cutter Blk
CLE331G CITIZENCL-E331 300dpi 4" Thermal Trsf Label Printer Black
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
TRWR110300B25 GOODSONTh Trsf Rib. B110 Wax Res110mmx300m Black
TRWR55300B25 GOODSONTrsf Rib. B110A Wax res 55mmx300m Black
TRWR80300B25 GOODSONTrsf Rib. B110A Wax Res 80mmx300m Black
TRWR45300B25 GOODSONTrsf Ribbon Wax Resin 45 x 300 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
CLS321CL-S321 4" Thermal Transfer Label Printer Series

Parts documents

Parts layout details

Specifications
Printing Method
Thermal Transfer/Direct Thermal
Printing Width
Max. 104 mm (4.1 inches)
Printing Length
6.4 – 2540 mm, 0.25 – 100 inches depending on emulation and resolution
Dot Pitch
8 × 8 dots / mm (203 dpi)
Optional 300 dpi (special Order CL-E331)
Printing Speed (Max.)
8 inches per second (200 mm/s) at 203 dpi; 6 IPS at 300 dpi.
Font
NA
Character Table/Code Pages
NA
Bar-code Type
Paper feed method
Friction Feed
Media Type
Continues Form, Gap Labels, Black Mark Sensing and punch hole sensing
Media width
24 mm to 118 mm (0.94 inches to 4.65 inches)
Paper Roll Diameter
Max Ø 125 mm with 25 to 38 mm Core
Media Tickness
63.5 µm – 190 µm, 0.0025 to 0.0075 inches
Auto Cutter
Factory Option (CLE321CG)
Indicators/Controls
Feed/Setting button and two LEDs (Power & Status)
Emulation
Cross-Emulation™ - automatically switching between Zebra® ZPL-II® and Datamax®. CBI Basic Interpreter for programmers. EPL emulation coming soon.
CPU
NA
Memory
16MB Flash (User area 4MB), 32MB SDRAM (User area 4MB)
Sensors
Adjustable gap & black mark sensors
Interfaces
10/100 Ethernet (LAN) with LinkServer™, USB 2.0, Serial RS232C
Driver available
Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others
Software Utilities
Label Design Software
Power Supply
Auto Switching 100-240V 50/60Hz
Power Consumption
60W typical power consumption when printing DOE VI / COC Tier 2 compliant (less than 0.15W no-load consumption)
External Dimensions (WxDxH)
178 x 266 x 173 mm
Weight
2.6 Kg
2.82 Kg with Cutter
Operating Environment
Temperature: 5 to 40 °C
Humidity: 30 to 85% (non-condensing)
Storage Environment
Temperature: -20 to 50 °C
Humidity: 10 to 90% (non-condensing)
EMC/Safety Standards
CE(EMC), FCC Class A, CB and CCC, NOM, S-Mark, C-tick
