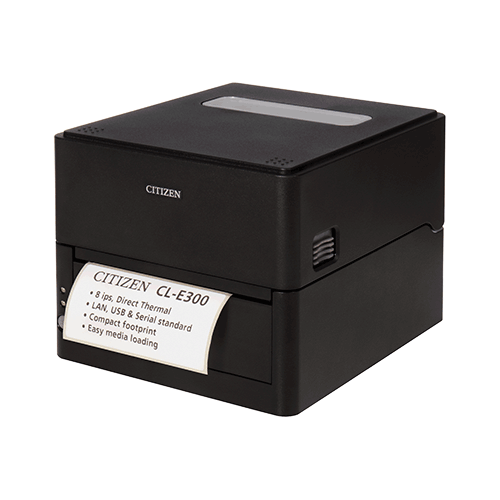

CITIZEN CL-E300 4" Direct Thermal Label Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The small footprint of the new CL-E300 makes it a perfect printer for tight spaces but still allows labels up to 4.5 inches wide to be printed on a 5 inch media roll. With an on-board Ethernet LAN interface as standard together with USB and Serial interfaces, the CL-E300 is perfect for all applications. Citizen‘s LinkServer™ web management and configuration system is integrated to allow full printer control.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Direct Thermal Label Printer
  • Paper load: Front access for all operations including media and ribbon changing
  • Printing Speed: Ultra fast print out - up to 200mm per second (8 inches per second)
  • Paper thickness: Paper thickness up to 0.150mm
  • Case colour: Available in black or white
  • Media sensor: Adjustable media sensor, Black mark sensor, Label gap sensor
NameSizeDownload
Datasheet167kb cle300_Datasheet.pdf
User Manual4,808kb CL-E300_ume.pdf

Products available to purchase

 SKUVendorName
CLE300G CITIZENCLE-300 Direct thermal Label Printer 203 dpi Black
CLE300CG CITIZENCLE-300 Direct thml Label Pr with cutter 203 dpi Blk
CAB-IEC-C13 GOODSONIEC-C13 Appliance Lead 2m (Kettlecord)
CAB-PRUSB GOODSONUSB 2.0 A to B Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
CLS300CL-S300 4" Direct Thermal Label Printer Series

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
Max. 104 mm
Printing Length
6.4 to 2540 mm depending on emulation
Dot Pitch
CLE-300: 8 x 8 dots / mm (203 dpi)
Printing Speed (Max.)
CL-E300 Max. 200 mm/s - 8 ips
Font
Datamax® emulation: Seven kinds of fixed pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer
Zebra® emulation: Five kinds of fixexd pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer *4
*3: The OCR font may have a low recognition rate according to the reader.
*4. It is equipped with UFST™ and TrueType™ raterizer that are licensed from Agfa Corporation.
Character Table/Code Pages
See User Manual (page 55 under Symbol set)
Bar-code Type
Datamax® emulation:
Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM, UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS
Zebra® emulation: Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet, Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39
Paper feed method
Friction Feed
Media Type
Roll, fanfold
(Continuous media, die-cuts media, continuous tags, copntinuous tickets)
Media width
Min. 24 mm to Max. 118 mm
Paper Roll Diameter
Max Ø 125 mm with 25.4 to 38 mm Core
Media Tickness
Min. 0.0635 mm to Max. 0.190 mm
Auto Cutter
CL-E300CG Fixed guilotine cutter
Indicators/Controls
Power & Status (3 Colour) LED
Feed & Setting Button
Feed Button can be Programmed to repeat
Power Switch
Emulation
CITIZEN original language
Datamax® Programming language
Zebra® programming language
Auto detect
CPU
32-bit RISC processor at 216 Mhz
Memory
16 Mb of Flash ROM, 4Mb available to user
32 Mb of SDRAM, 4Mb available to user
Sensors
Cover Open sensor
Upper & Lower media sensors: Label gap (see through), Notch (see through) Registration mark (rear printed black mark) Continuous media (no sensing, except media out)
Peeler and Cutter sensors when installed
Interfaces
USB 2.0 Full Speed (12 Mbps)
Serial: RS232C compliant, 9-pin D-type, 1200  115200 baud
LAN: 100Base-TX, 10Base-TX, 2 indicators, test Button
Driver available
Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others
Software Utilities
All the traditional Citizen Menus
Includes ‘specials’ and extra commands
VuePrint™ configuration commands
Citizen Configuration Utility
LinkServer™ Web Configuration & Monitoring
Power Supply
External Adapter AC Input 110-240V 50/60Hz
DC Output 24V 2.5A
ENERGY STAR® qualified printer
Power Consumption
Power consumption: CEC LEVEL 6 compatible
Standby power 1.5 to 1.7 W (depends on 110/240v and model)
Printing power 63 to 70 W (depends on 110/240v and model)
External Dimensions (WxDxH)
170W × 208D × 152H mm
Weight
1.98 Kg approx.
Operating Environment
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards
CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick/RCM, CCC,UL, C-UL
