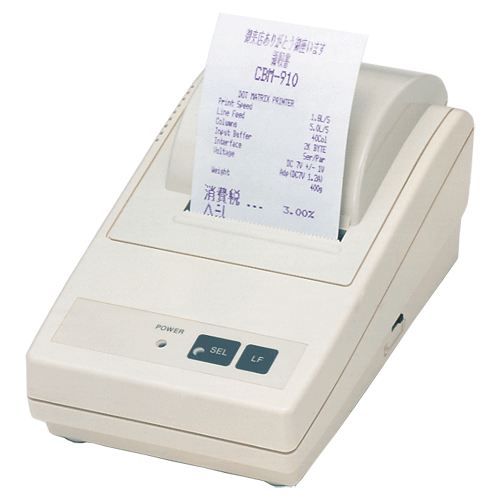

CITIZEN CBM-910 II Mini Dot Matrix Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Citizen CBM-910 low-cost Dot Matrix printer fits perfectly in a wide variety of Data logging & EFTPOS applications. Available in 24 or 40 Column width.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Serial Dot Matrix Printing
  • Up to 2.5 LPS printing speed
  • Palm Size
  • 2K Printer Buffer
  • 3 ply Printing Capable
  • Data logging device
  • CBM910 mark II version, fully compatible with the iDP3110 series
NameSizeDownload
Datasheet132kb cbm9x0_catalog_datasheet.pdf
User Manual404kb CBM910 User Manual.pdf

Products available to purchase

 SKUVendorName
CBM910-24P CITIZENCBM-910-24P II Printer wo Power Supply
CBM910-24R CITIZENCBM-910-24R II Printer wo Power Supply
CBM910-40P CITIZENCBM-910-40P II Printer wo Power Supply
CBM910-40R CITIZENCBM-910-40R II Printer wo Power Supply
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
AD7V16N GOODSONPower Adaptor for IDP-311x & CBM910 Series
IR91B CITIZENIR-91B Ink Ribbon
P5757 GOODSONPlain Bond Paper Rolls 57 x 57 L

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Serial Impact Dot Matrix
One-way Printing
Printing Width
24 Column printer; 144 dots/line
40 Column printer; 180 dots/line
Dot Pitch
24 Column printer (5+1) x 8
40 Column Printer (4+0.5) x 8
Printing Speed (Max.)
24 Column printer Approx. 2.5 lines/sec
40 Column Printer Approx. 1.8 lines/sec
Number of Columns
24 Column printer: 24
40 Column printer: 40
Character Size
24 Column printer (5+1) x 8
40 Column Printer (4+0.5) x 8
Character Table/Code Pages
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/CBM-910 Emulation
Bar-code Type
N/A
Line Spacing
3.52mm
Paper feed method
Friction
Paper Type
Plain Bond Paper
or 2 ply Paper
Paper Width
57.5 mm +/-0.5 mm
Paper Roll Diameter
Max Ø 60.0mm
Paper Thickness
0.13 mm or less
Paper Supply Method
Auto Cutter
N/A
Indicators/Controls
Power LED Green
Paper LED Orange
Error LED Red
Emulation
CBM910 & iDP3110 (Selectable with memory switch)
Print Buffer
2K bytes / 72 bytes selectable with Memory switch on Serial Model
NV Memory
N/A
Sensors
Paper near end Sensor
Drawer Port
N/A
External Device Port
N/A
Interfaces
Serial (RS-232C compliant),
or Parallel (IEEE1284 compliant)
Driver available
Windows95/98/98SE/ME/NT/XP (Text only driver supports XP/Vista/7/8)
Software Utilities
CBM9x0II Customization Ver.1.0.0.0
Power Supply
Optional AC Adapter
Rated input: 240 V, 50/60 Hz
Rated output: DC7 V +/-1V
Power Consumption
Approx. 7 VA (Normal printing), Approx. 0.5VA (Standby)
External Dimensions (WxDxH)
106 × 180 × 88 mm
Weight
0.47 Kg
Operating Environment
0 to 40 °C, 10 to 85 % RH (no condensation)
Storage Environment
-20 to 60 °C, 10 to 90 % RH (no condensation)
Reliability
24 Column Printer: MCBF 1.5 million lines
40 Column Printer: MCBF 1.0 million lines
EMC/Safety Standards
FCC class B, TÜV-GS, CE marking, C-tick
