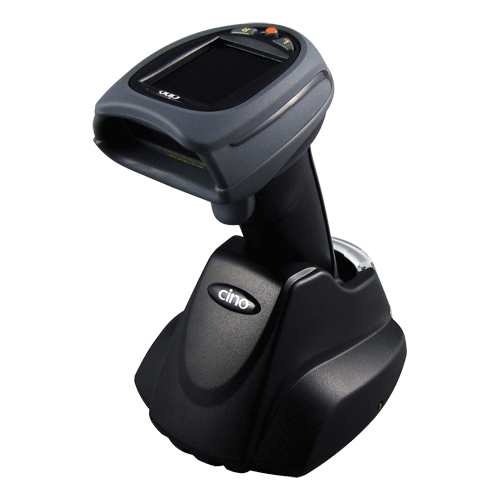

CINO F-790WD Series Wifi Cordless Linear Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

A World-Class Wi-Fi barcode scanner for enterprise wireless connectivity. Cino's F-790WD FuzzyScan Wi-Fi barcode scanner creates a leap in efficiency and productivity. It can be easily integrated into an existing enterprise wireless network infrastructure with minimum effort. Through the perfect collaboration of 2” colour display, virtual keyboard and integrated keypads, the user not only can confirm the accuracy and the successful transmission of scanned data, but also can manipulate the configurations and data-entry with ease. The Cino Wi-Fi barcode scanner is the most cost-effective solution to fulfil various applications which need reliable and expandable wireless connectivity.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Solid State Linear Imager Technology, No moving parts!
  • Enterprise-class 802.11b/g wireless Connectivity
  • Supports latest wireless LAN security: WEP, WPA and WPA2
  • Built-in 2” crystal clear colour display
  • two function keys and a navigation key
  • Smartphone-like virtual keyboard is available to fulfil comprehensive alphanumeric data entry
  • Blue link and 2-colour status indicators for clear operator feedback
  • Built-in vibrator is ideal for noisy and quiet environments
  • Host acknowledgement function guarantees the data integrity for online real-time transmission
  • Optional input fields and transmission sequence are available for batch operation
  • Long range model and high performance with laser aimer model are available
  • Ultimate WaveCentre software for robust application development
NameSizeDownload
Brochure1,048kb f790wd_brochure.pdf
Quick Setup Guide1,132kb f790wd_qsg.pdf
Windows Utility Software7,951kb CINO_FuzzyScan_PowerTool_WF_1.00.10.exe

Products available to purchase

 SKUVendorName
FBC790WDKIT-U CINOF-790 Wifi Linear Imager with Display
CAB-FB7S-RPE CINOCable DB9F for FBC4360 760 780
CAB-FB7S-K CINOCable PS2 for FBC4360 760 780
CAB-FB7S-UK CINOCable USB for FBC4360 760 780
FBC780BATT CINOSpare Rechargable Battery for F780BT

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
10% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Tilt Angle
+/- 55 deg.
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
2" QVGA backlit Colour Display
2 Function Keys. one 5 way Navigation Key
Blue Link Indicator and 2 Colour Status indicators
Programmable Beeper & Vibrator
Operating Modes
Trigger
Communication Type
Wifi Cordless
Communication Technology
IEEE 802.11b/g
Operating modes: Infrastructure mode, Ad-hoc mode
Communication Range: up to 150 m in open space
Security: WEP, WPA, WPA2 (Ad-hos mode supports WEP only)
Interfaces
N/A
Supply Voltage
5VDC ±10%
Battery: 3.7V, 2600mAH Li-ion Rechargeable
Charge Time: 4-5 Hours for full charge
Power Consumption
Charging : Typical 680 mA @5VDC
Operating : Typical 85 mA @5VDC
with external Power supply
Drop Specification
Withstands multiple drops at 1.8 m to concrete
Environmental Sealing
IP41
ESD Protection
N/A
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)
70.5 x 95 x 160.5mm
Weight
211g including battery
