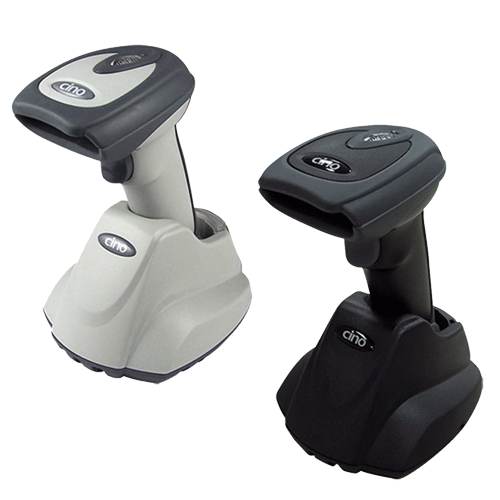

CINO F-790BT Series Cordless Linear Imaging Scanner ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The Cino F790BT cordless linear imaging scanner presents a big leap in its class as the benchmark by combining the cutting-edge FuzzyScan 3.0 imaging technology, unique optical design and Bluetooth® v4.0 wireless technology. The FuzzyScan F790BT not only has unprecedented performance on reading long distance up to 34” and wide barcode, but also compromise the incompatibility on capturing 3 mil high density barcode. The F790BT shines its outstanding value on superb performance and ultimate freedom of mobility, providing an optimum solution for a wide range of applications from general purpose to industry.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Outstanding reading range on capturing general barcode up to 86 cm distance
  • Capable of reading 3-mil high density barcode
  • More Excellent reading width than most imagers and laser scanners
  • Ruggedized over-mold design to withstand multiple drops to concrete from 2.0 meter
  • Bluetooth 4.0 wireless technology with more than 100m communication coverage
  • Plug-and-play cordless migration by working with smart cradle
  • Support multiple connections up to 7 scanners in PICO mode
  • Support both HID and SPP profiles to connect with most Bluetooth-enabled hosts
  • Memory storage up to 80,000 EAN-13 scans for batch scanning
  • Batch scanning function is ideal for inventory application
  • Support out-of-range scanning and auto-reconnection features
  • Unsurpassed readability on low contrast, smudged, poorly-printed or damaged barcodes
  • GS1 DataBar Linear-stacked, PDF, MicroPDF and composite code are supported
NameSizeDownload
Brochure137kb f790bt_brochure.pdf
Quick Start Guide602kb QSG_FuzzyScan Bluetooth Image Scanner_Rev B2_B51231.pdf
FuzzyScan PowerTool Programming Utility10,137kb Cino_PowerTool_2.05.18.rar
USB VCOM Driver 64 bit1,987kb Cino_USB_VCOM_64_3.0.4.0.rar

Products available to purchase

 SKUVendorName
CAB-FB7S-RPE CINOCable DB9F for FBC4360 760 780
CAB-FB7S-K CINOCable PS2 for FBC4360 760 780
CAB-FB7S-UK CINOCable USB for FBC4360 760 780
FBC780BATT CINOSpare Rechargable Battery for F780BT

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
High Performance Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
10% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Tilt Angle
+/- 65 deg.
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.

PDF417, Micro PDF417, Codablock F, Composite (available for F798BT only)
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
Blue Link Indicator and 2 Colour Status indicators
Programmable Beeper
Optional Vibrator (Special Order with MOQ)
Operating Modes
Trigger, Presentation.
Communication Type
Bluetooth Cordless
Communication Technology
Bluetooth v4.0, Band 2.402~2.4830 GHz (ISM Band)
Data Rate: 24.0 Mbits/sec
Radio Link Modes: Pair, PICO, SPP, HID
Communication Range: up to 100 m in open space working with smart Cradle, line of sight
Supported Profiles: SPP, HID
Interfaces
PS2 Keyboard wedge, Standard RS-232, HID USB, USB Virtual COM Port
Supply Voltage
5VDC ±10%
Battery: 3.7V, 2600mAH Li-ion Rechargeable
Charge Time: 4-5 Hours for full charge
126000 Scans/full charge
Power Consumption
Charging : Typical 680 mA @5VDC
Operating : Typical 85 mA @5VDC
with external Power supply
Drop Specification
Withstands 50 drops at 1.8 m to concrete
Withstands 10 drops at 2 m to concrete
Environmental Sealing
IP42
ESD Protection
Functional after 15kV discharge
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
EMC: CE, FCC, BSMI, VCCI, KC
Safety: LED Eye Safety IEC62471, Exempt Group
Environmental: Compliant with RoHS directive
External Dimensions (WxDxH)
70.5 x 97.8 x 156.2mm
Weight
230g including battery
