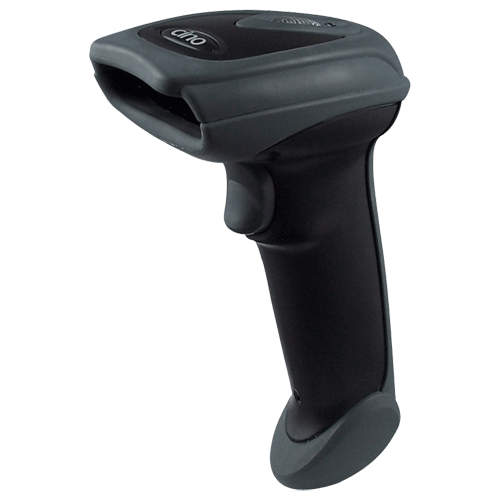

CINO F-790 Series Linear Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Cino F790 linear imaging scanner is the best-of-class members of FuzzyScan family. Powered by innovative FuzzyScan 2.0 imaging technology and unique optical design, the F790 performs superb reading performance for both long distance and wide barcode capture. It not only can read high resolution 3 mil barcode, but also can capture 20 mil barcode up to 32". The F790 can meet most of barcode scanning demands for a wide range of applications, providing a cost-performance solution for general purpose and industry applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Solid State Linear Imager Technology, No moving parts!
  • Capable of reading 3-mil high density barcode
  • More Excellent reading width than most imagers and laser scanners
  • Ruggedized over-mold design to withstand multiple drops to concrete from 1.8 meter
  • GS1 DataBar support
  • Unsurpassed readability on low contrast, smudged, poorly-printed or damaged barcodes
  • Superior motion tolerance for rapid and accurate data-capture on the move
  • High speed scanning rate up to 500 scans per second for snappy barcode capture
  • All-in-one host interface design, including USB HID, USB COM, PS/2 keyboard wedge and RS232
  • Automatically switch between presentation scanning and hand-held scanning while working with Cino SmartStand
  • Light Grey available only on special order, minimum order quantities apply
NameSizeDownload
Brochure442kb f790_brochure.pdf
Programming Manual1,205kb FuzzyScan Programming Manual_Rev D6_B50206.pdf
Windows Utility Software3,069kb CINO_PowerTool2.00.08.rar

Products available to purchase

 SKUVendorName
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners
CAB-FB6DB9PE CINOCable DB9F for FBC6860 MBC6890
CAB-FB6USBR CINOCable USB for FBC6860 MBC6890
FBCUNISTAND-B CINOUniversal AutoSense Handsfree Stand for F780 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
High Performance Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
10% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.

PDF417, Micro PDF417, Codablock F, Composite (available for F798 only)
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
3 LED's for Power, good read, and Status Indicators
Programmable Beeper
Optional Vibrator (Special Order with MOQ)
Operating Modes
Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation.
Communication Type
Corded
Interfaces
PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation
Supply Voltage
5VDC ±10%
Power Consumption
Operating : Typical 180 mA @5VDC
Standby : Typical 80 mA @5VDC
Drop Specification
Withstands 50 drops at 1.8 m to concrete
Withstands 10 drops at 2 m to concrete
Environmental Sealing
IP41
ESD Protection
Functional after 15kV discharge
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)
70.5 x 97.8 x 156.2mm
Weight
157g (excluding the cable)
