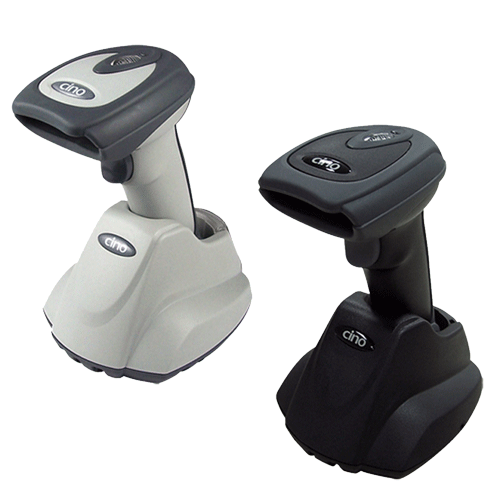

CINO F-780BT Series Cordless Linear Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

A ruggedised, high performance Cordless Image Scanner for industry and general Purpose Applications. Thanks to the convergence of the new innovative FuzzyScan 2.0 Imaging Technology and Bluetooth® wireless technology, the new FuzzyScan F780BT series Cordless Image Scanner from Cino impresses the user with high reading performance and ultimate freedom of cordless operation. The F780BT expertly combines ruggeddized construction with versatile features, thus providing an ideal cordless solution for industrial or general applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Ruggedized over-mold design to withstand multiple drops to concrete from 1.8 meter
  • Bluetooth 2.1 EDR wireless technology with more than 80m communication coverage
  • Plug-and-play cordless migration by working with smart cradle
  • Support multiple connections up to 7 scanners in PICO mode
  • Support both HID and SPP profiles to connect with most Bluetooth-enabled hosts
  • Memory storage up to 20,000 EAN-13 scans for batch scanning
  • Batch scanning function is ideal for inventory application
  • Support out-of-range scanning and auto-reconnection features
  • Outstanding reading capability on 3 mil barcode with more than 2" depth of field
  • More than 16" reading distance on 100% UPC/EAN symbols
  • Unsurpassed readability on low contrast, smudged, poorly-printed or damaged barcodes
  • GS1 DataBar Linear-stacked, PDF, MicroPDF and composite code are supported
NameSizeDownload
Brochure120kb f780bt_ Brochure.pdf
Programming Manual1,205kb FuzzyScan Programming Manual_Rev D6_B50206.pdf

Products available to purchase

 SKUVendorName
FBC780BBTSKIT-R CINOF780BT with Smart Comms Cradle with PS & RS2 Cable Blk
FBC780BBTSKIT-U CINOF780BT with Smart Comms Cradle with PS & USB Cable Blk
CAB-FB7S-RPE CINOCable DB9F for FBC4360 760 780
CAB-FB7S-K CINOCable PS2 for FBC4360 760 780
CAB-FB7S-UK CINOCable USB for FBC4360 760 780
FBC780BATT CINOSpare Rechargable Battery for F780BT

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
1202gVoyager 1202g Cordless Laser Scanner
IT3820IT-3820 Wireless Linear imager scanner
MS9535MS-9535 VoyagerBT ™ Bluetooth Cordless Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
High Performance Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 558 scans/sec
Contrast Ratio
15% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Tilt Angle
+/- 55 deg.
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
Blue Link Indicator and 2 Colour Status indicators
Programmable Beeper
Optional Vibrator (Special Order with MOQ)
Operating Modes
Trigger, Presentation.
Communication Type
Bluetooth Cordless
Communication Technology
Bluetooth v4.0, Band 2.402~2.4830 GHz (ISM Band)
Data Rate: 24.0 Mbits/sec
Radio Link Modes: Pair, PICO, SPP, HID
Communication Range: up to 100 m in open space working with smart Cradle
Supported Profiles: SPP, HID
Interfaces
PS2 Keyboard wedge, Standard RS-232, HID USB, USB Virtual COM Port
Supply Voltage
5VDC ±10%
Battery: 3.7V, 2600mAH Li-ion Rechargeable
Charge Time: 4-5 Hours for full charge
120000 Scans/full charge
Power Consumption
Charging : Typical 680 mA @5VDC
Operating : Typical 85 mA @5VDC
with external Power supply
Drop Specification
Withstands 50 drops at 1.8 m to concrete
Withstands 10 drops at 2 m to concrete
Environmental Sealing
IP41
ESD Protection
Functional after 15kV discharge
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)
70.5 x 97.8 x 156.2mm
Weight
230g including battery
