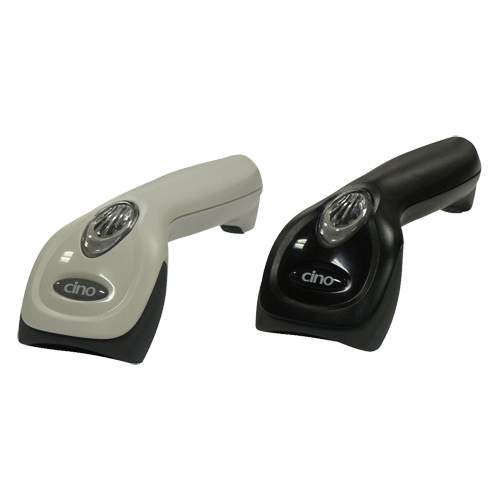

CINO F-560 Series Linear Imaging Scanner ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The CINO F-560 series Linear Imager is a low cost linear Imager scanner which was designed to replace traditional low cost Contact Scanners. The scanner is a very good and aggressive scanner which can read near contact to about 25 cm at the same cost as the old contact scanner.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld Linear Imager Scanner
  • Sharp Aiming Line
  • Fast Decoding Rate
  • Optical and Audible Read Confirmation
  • Exceptional Read Performance
  • Manual, Presentation Mode or Auto Trigger
  • User replaceable interface cable
  • Powerful, Flexible Architecture
  • Available in Black and light grey (Light Grey only available on special order)
NameSizeDownload
Brochure170kb f560_brochure.pdf
Programming Manual1,205kb FuzzyScan Programming Manual_Rev D6_B50206.pdf
Windows Utility Software3,069kb CINO_PowerTool2.00.08.rar

Products available to purchase

 SKUVendorName
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners
CAB-FB7S-RPE CINOCable DB9F for FBC4360 760 780
CAB-FB7S-K CINOCable PS2 for FBC4360 760 780
CAB-FB7S-UK CINOCable USB for FBC4360 760 780
FBCUNISTAND-B CINOUniversal AutoSense Handsfree Stand for F780 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
High performance Linear Imaging Engine
Light Source
630nm Visible Red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 Scan/sec
Contrast Ratio
30% minimum reflective difference
Resolution
Typical 0.1mm(4mils) Code39, PCS 0.9
Depth of field
0-250 mm on 100% UPC/EAN symbols
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
LED indication
Programmable Beeper
Optional Vibrator (special order with MOQ)
Operating Modes
Toggle, Trigger, Force, Level, Flash, Diagnostics, Alternative, Low Power, Presentation
Communication Type
Corded
Interfaces
PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port
Supply Voltage
DC +5V ±10%
Power Consumption
Operating: Typical 180 mA
Standby: Typical 80 mA
Drop Specification
withstands multiple 1.5m drops to concrete
Environmental Sealing
IP41
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 to 70 °C
RH 5% ~ 95% non condensing
External Dimensions (WxDxH)
164.9 x 64.6 x 38.5 mm
Weight
105 g (cable not included)
