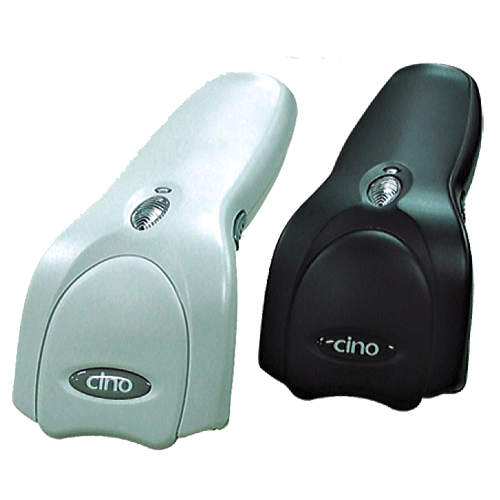

CINO F-460 Series Linear Imaging Scanner **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

FuzzyScan F-460 series Linear Imager has been designed to replace traditional low cost Contact Scanner with a scanner that can read from near contact to about 20 cm at the same cost as the old contact scanner.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Solid State Linear Imaging architecture.
  • Sharp Aiming Line
  • Fast Decoding Rate
  • Optical and Audible Read Confirmation
  • Exceptional Read Performance
  • Manual, Presentation Mode or Auto Trigger
  • User replaceable interface cable
  • Powerful, Flexible Architecture
  • Fully Programmable
NameSizeDownload
Brochure248kb f460_brochure.pdf
Programming Manual1,205kb FuzzyScan Programming Manual_Rev D6_B50206.pdf
Cino FuzzyScan PowerTool Configuration Utility3,069kb CINO_PowerTool2.00.08.rar

Products available to purchase

 SKUVendorName
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners
CAB-FB7S-RPE CINOCable DB9F for FBC4360 760 780
CAB-FB7S-K CINOCable PS2 for FBC4360 760 780
CAB-FB7S-UK CINOCable USB for FBC4360 760 780

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
High performance Linear Imaging Engine
Light Source
630nm Visible Red LED
Scan Pattern
Single Line
Scan Rate
Dynamic Scanning up to 250 scans/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
N/A
Resolution
Typical 3 mil (code39, PCS 0.9)
Depth of field
up to 20 cm from contact on 100% UPC/EAN symbols (measured in 400 lux office environment using A-grade Barcodes)
Ambient Light Immunity
0~20000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Operating Modes
Toggle, Trigger, Force, Level, Flash, Diagnostics, Alternative, Low Power, Presentation
Interfaces
PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation
Supply Voltage
5VDC ±10%
Power Consumption
Regular operation 150 mA
Low Power Standby: 0.1 mA
Drop Specification
Withstands multiple 1.5m drops to concrete
Environmental Sealing
IP41
Operating Environment
-10 ~ 50 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)
31 x 74 x 174mm
Weight
127g (excluding the cable)
