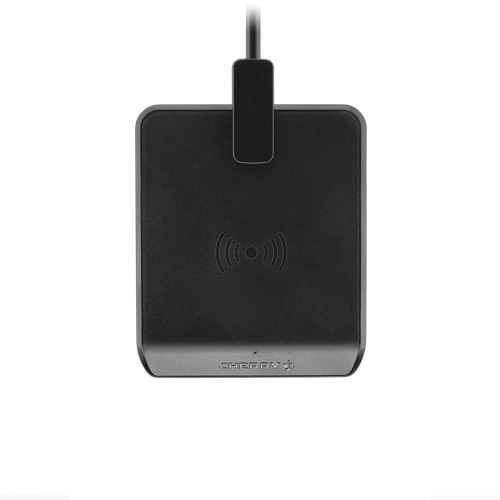

CHERRY TC-1200 USB Contactless Chipcard reader

(Product may vary from image. Rely only on description for purchasing decisions.)

TC 1200 - the reliable solution for bidirectional communication with contactless chip cards.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Class 1 smart card terminal
  • Bidirectional communication for contactless smart cards
  • LED status display
  • High-quality workmanship, state-of-the-art technology and intelligent design
  • One-handed operation and rubber surfaces to prevent slipping
  • Attachable card clip to fasten contactless smart cards
  • Connection via USB 2.0 port
  • 1.75 m cable length for maximum freedom of movement
  • Software supports Microsoft Windows, Linux and Mac OS X operating systems
  • Supported standards: PC/SC, CCID, CT-API
NameSizeDownload
Datasheet29kb tc1200_datasheet.pdf

Products available to purchase

 SKUVendorName
CHTC1200B-U CHERRYTC1200 Contactless Chip Card Reader USB Blk

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Reader Type
Contact Free in accordance with ISO14443A, ISO14443B, ISO15693
Card Feed Method
Contactless Swipe
Read/Write Function
Read only
Card Type
Compatible Chipcards types: MIFARE®, DESFire®, iCLASS®
Card Feed Speed
N/A
Card Data Format
N/A
Chipcard Protocol
T=CL
Transmission Speed
Reader<==>Card: max. 848 kBit/sec, 26 kBit/sec (ISO15693)
Reader<==>System: max. 12Mbits/sec
Software Interface
CT-Api, PC/SC
Programming Method
N/A
Indicators/Controls
LED Status display
Communication Type
Cabled, Bi-directional Communication
Interfaces
USB - Ver. 2.0
Supply Voltage
5 V ± 5 %
Power Consumption
Typical. 230 mA
Operating Environment
0 to 50 °C
RH 5 - 90 % (non-condensing)
Storage Environment
-20 to 65 °C
RH 5 - 90 % (non-condensing)
External Dimensions (WxDxH)
76 x 62 x 11 mm
Weight
approx. 75 g (excl. cable)
