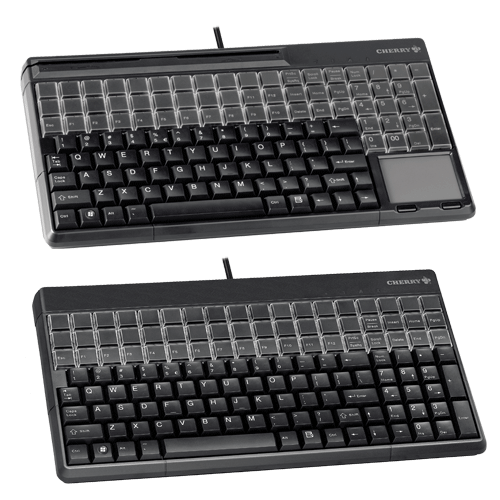

CHERRY SPOS QWERTY Keyboard with encryptable MSR

(Product may vary from image. Rely only on description for purchasing decisions.)

Freely programmable USB-keyboard with Magnetic Card Reader (with encryption) and Optional touchpad, mouse keys. The height of professionalism in both look and function. This fully programmable keyboard with extended alphanumeric layout and replaceable keys is designed first and foremost for commercial use at the POS. The model is extremely slim with its compact design and can also be inserted in recesses in the table. Multifunctional, Encryptable, Compact USB Keyboards with Enhanced Key Layout and optional Magnetic Card Reader & Touchpad for POS and Commercial Applications, the QWERTY Layout is Enhanced for Point of Sale Ease of Use

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full QWERTY Key Layout in Compact 14” Form Factor Combines Maximal Space Efficiency with Uncompromised Alphanumeric Data Entry
  • Enhanced US Int’l 135/123 Position Key Layout
  • Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
  • Plug & Play Configuration for all common POS Features
  • Unique Function Enhancement with ‘CHERRY Tools’ Virtual Programming
  • Fully Programmable Keyboard with 54/60 Relegendable Keys for Easy Layout Configuration and Quick Function Calls
  • Option for Unlimited Programmability of all Keys in up to 3 Layers Provides Convenient Data Access
  • Moving of Keys’ Allows for Easy Key Position Exchange Including Modifier Functions
  • High Performance encryptable 3-Track Magnetic Stripe Reader with Freely Programmable Headers and Terminators for Each Track
  • Dual Insertion for Bidirectional Swipe of Magnetic Stripe Card
  • Audible and Visual Indication of MSR Good Read
  • Powerful ‘CHERRY Tools’ Configuration Software Allows for Quick Product Set
NameSizeDownload
Datasheet111kb G86-615xx-Encrypted-Data-Sheet.pdf

Products available to purchase

 SKUVendorName
CHG86-61510LAEB-U CHERRYSPOS 61510 QWERTY Keyb MSR USB Black
CHG86-61511LAEB-U CHERRYSPOS 61511 QWERTY Keyb MSR touchp USB Black
CHS83810001 CHERRY1x2 black keycap for SPOS Horizontal
CHS83810003 CHERRY1x2 black Keycap for SPOS Vertical
CHS83810005 CHERRY1x2 Clear Lens for SPOS
CHS83810006 CHERRY2x2 black keycap (quad) for SPOS
CHS83810008 CHERRY2x2 Clear Lens cap (quad) for SPOS
CHG99-KEYSET-B CHERRYKeyset with dbl quad & sgl Black for SPOS
CHG99-KEYSET-i CHERRYKeyset with dbl quad & sgl Light Grey for SPOS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 135 Keys of which 54 relegenable
With touch: 123 Keys of which 64 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Tripple Data Encryption Algorithm (Triple DES) with Derived Unique Key per Transaction (DUKPT) key management
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA, Others on request. PCI DSS 3.0 compliant
Magnetic card reading speed: 10 - 152 cm/s
Magnetic card swipe direction: Bi-directional
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 72 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 38 mm
Weight
1.4 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, C-tick, cURus, CE, FCC, VCCI, RoHS, WHQL
